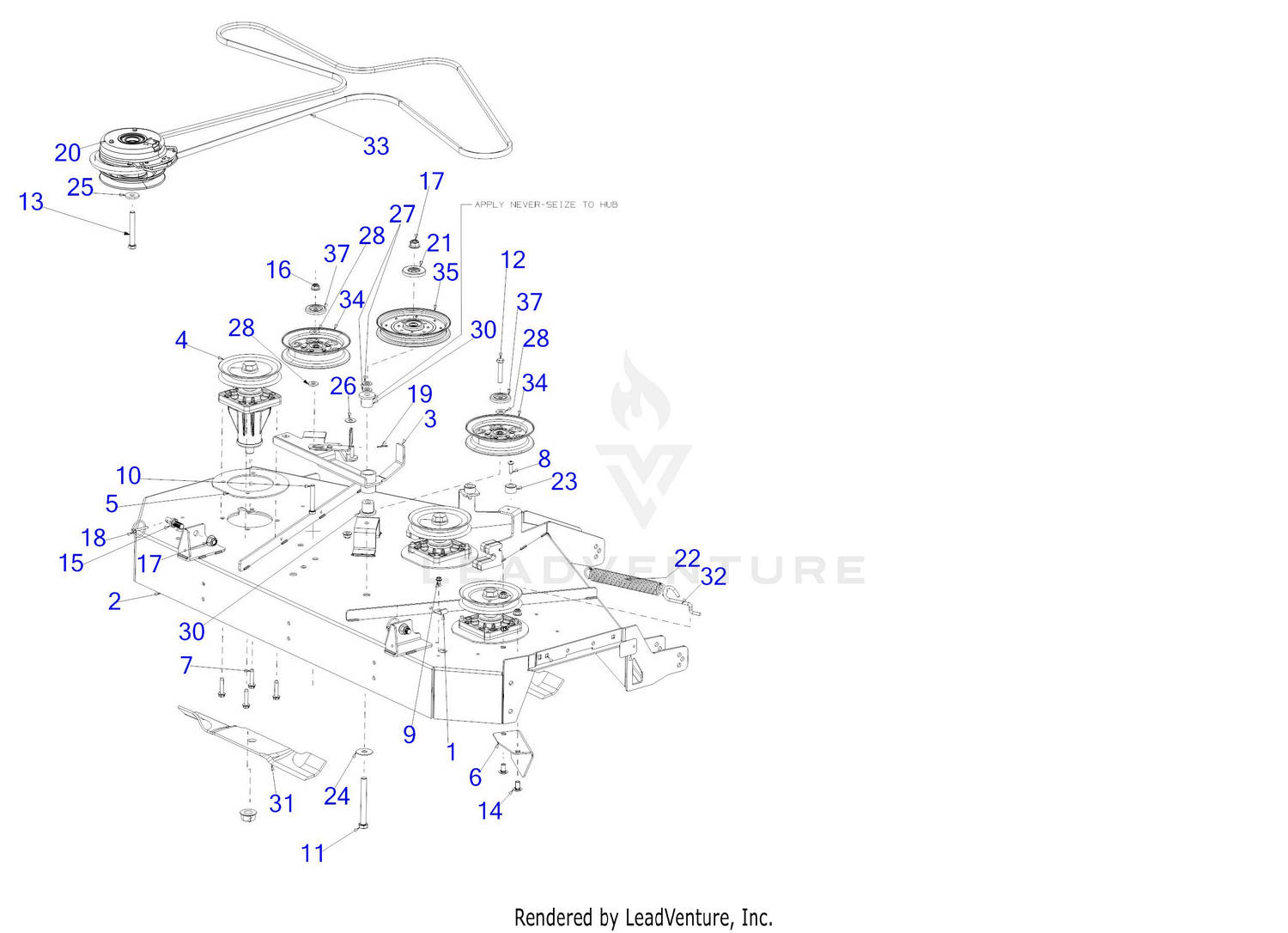

| Ref | Part Number | Description |
|---|
| 1 |
96606 |
HOOK RETAINER BRACKET Price: $6.71 |
| 3 |
603E05285B |
DECK IDLER ASSEMBLY This part replaces 603E05285. Price: $141.54 |
| 7 |
710-04605B |
HEX SCREW WASHER 5/16-18 x 1.5 This part replaces 710-04605A. Price: $6.01 |
| 8 |
710-05074 |
SCREW 1/4-20 x 1.0 Price: $2.90 |
| 9 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 10 |
710-0859 |
HEX SCREW-3/8-16X2.5 GR5 Price: $5.99 |
| 11 |
710-1807 |
SCREW 1/2-13 x 4.5 GR 5 Price: $10.13 |
| 12 |
710-3144 |
SCREW 3/8-16 x 2.0 GR5 Price: $4.02 |
| 13 |
710-3157A |
SCREW 7/16-20 x 3.25 GR5 Price: $9.67 |
| 14 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 15 |
711-06200B |
DECK PIN Price: $5.59 |
| 16 |
712-04065 |
NUT Price: $3.68 |
| 17 |
712-04150 |
NUT Price: $3.74 |
| 18 |
753-04070 |
LYNCH PIN Price: $8.64 |
| 19 |
914-0507 |
COTTER PIN 3/32 Price: $3.93 |
| 20 |
917-05192 |
ELECTRIC PTO CLUTCH Price: $547.83 |
| 21 |
721-04850 |
PULLEY CAP 1/2" Price: $12.90 |
| 22 |
732-04927 |
EXTENSION SPRING Price: $19.91 |
| 23 |
735-05147 |
BUMPER Price: $4.59 |
| 24 |
736-0208 |
Flat Washer, .51 x 1.5 x .07 This part replaces 936-0208. Price: $4.02 |
| 25 |
736-0322 |
FLAT WASHER .445 x 1.248 x .170 Price: $8.42 |
| 26 |
736-0344 |
FLAT WASHER This part replaces 936-0344. Price: $4.13 |
| 27 |
736-04606 |
FLAT WASHER Price: $5.52 |
| 28 |
736-3004 |
Flat Washer, .406 x .875 x .105 This part replaces 936-3004. Price: $4.08 |
| 30 |
741-05211 |
SHOULDER SPACER Price: $8.22 |
| 31 |
02005018P-X |
BLADE- HI LIFT 19.0 XTREME This part replaces 02005018-X. Price: $23.03 |
| 31 |
742P04416-L |
LOW-LIFT 19"BLADE (54"DECK) Price: $26.49 |
| 32 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 33 |
954-05013 |
V-BELT B SEC x 154 Price: $77.37 |
| 34 |
756-05053A |
IDLER PULLEY 5.0" DIA Price: $73.75 |
| 35 |
756-05212 |
IDLER PULLEY 6.0" DIA Price: $73.74 |
