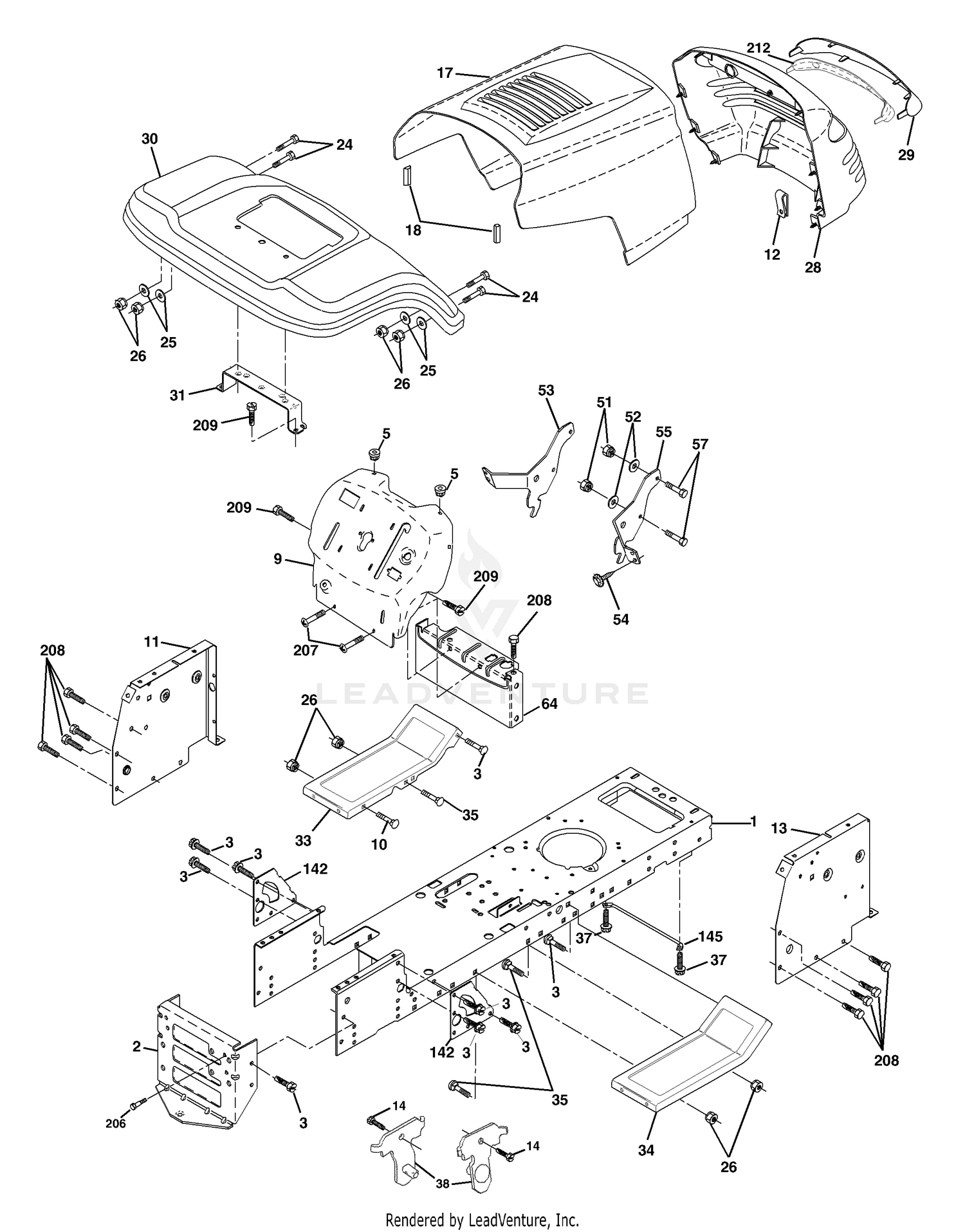

| Ref | Part Number | Description |
|---|
| 1 |
100-3036 |
RH SIDE DECK ASM Price: $1,621.62 |
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
100-5620-01 |
RH SKID ASM Price: $125.04 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 3 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 4 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 5 |
100-2984 |
SPACER-IDLER Price: $45.43 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 6 |
99-5493 |
PULLEY-IDLER Price: $78.45 |
| 7 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 8 |
55-7660 |
V-BELT Price: $52.99 |
| 9 |
168336X010 |
Dash Price: Call Us |
| 9 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 10 |
139-1039 |
LOW DRIVEN SPINDLE ASM This part replaces 104-3532. Price: $589.65 |
| 10 |
72140608 |
Bolt Rd Hd Sqnk. 3/8-16 Unc x 1 Price: Call Us |
| 11 |
174996 |
Panel Asm. Dash Lh Price: Call Us |
| 11 |
32108-103 |
SCREW-FH Price: $0.68 |
| 12 |
145660 |
Clip Tinnerman Grile P/L Price: Call Us |
| 12 |
69-9290 |
PAD-BUMPER Price: $9.52 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 13 |
172105X010 |
Panel Dash Rh Price: Call Us |
| 14 |
104-2250-01 |
SKID-SIDE Price: $116.02 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 16 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 17 |
159639X428 |
Hood Price: Call Us |
| 17 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 18 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 19 |
104-7529-01 |
BRACKET-CASTOR Price: $225.46 |
| 20 |
100-5623 |
DECAL-HOC Price: $20.17 |
| 21 |
100-5569 |
PIN-CLEVIS Price: $22.34 |
| 22 |
104-7524 |
SHIM Price: $5.30 |
| 23 |
121-1720-01 |
BRACKET-FORK This part replaces 104-7525-01. Price: $36.79 |
| 24 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 25 |
3233-4 |
SCREW-CARR Price: $1.90 |
| 26 |
73800600 |
Nut Lock Hex w/Insert 3/8-16 UNC Price: Call Us |
| 28 |
179101 |
Grill/Lens Asm Price: Call Us |
| 29 |
140273X599 |
Lens Grille Price: Call Us |
| 30 |
169468X428 |
Fender Asm Price: Call Us |
| 31 |
136619 |
Bracket Fender Price: Call Us |
| 33 |
179716X428 |
Footrest LH Price: Call Us |
| 34 |
179717X428 |
Footrest RH Price: Call Us |
| 35 |
72110606 |
Bolt Rd Hd Sht. Sqnk. 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 Tyt Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 51 |
73800400 |
Nut Lock Hex W/Ins. 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
144697 |
Bracket Grille LH Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket, Grille RH Price: Call Us |
| 57 |
74780412 |
Bolt Fin Hex 1/4-20 x .75 Price: Call Us |
| 64 |
154798 |
Dash Lower Price: Call Us |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 212 |
156229 |
Insert Lens Reflector Price: Call Us |
