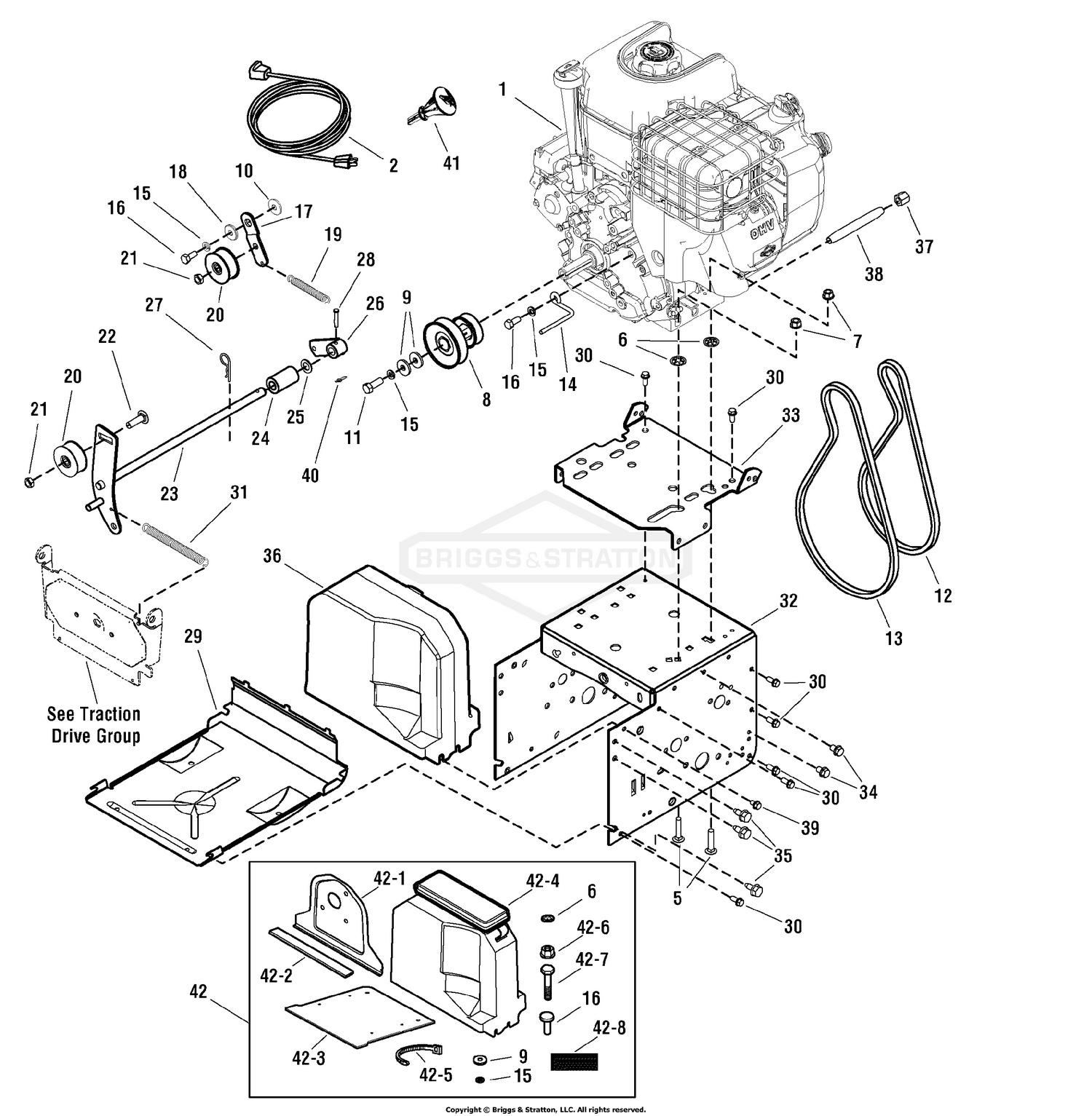

| Ref | Part Number | Description |
|---|
| 1 |
12D114-0122-E8 |
ENGINE Price: Call Us |
| 2 |
6219MA |
CORD, Electric, 10FT. 110V Price: $37.42 |
| 5 |
704210 |
BOLT, 5/16-18X1.50 This part replaces 002X97MA. Price: $4.19 |
| 7 |
703115 |
NUT This part replaces 1960686SM. Price: $3.06 |
| 8 |
1501109MA |
PULLEY, Engine Price: $38.55 |
| 10 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 1916965SM. Price: $2.95 |
| 11 |
703165 |
HHCS This part replaces 1960428SM. Price: $3.51 |
| 12 |
1733324SM |
BELT, DRIVE Price: $17.10 |
| 13 |
37X120MA |
V-Belt, Auger, 4L Price: $17.73 |
| 14 |
1739070YP |
BELT GUIDE This part replaces 1733014SM. Price: $7.13 |
| 17 |
1687797YP |
KIT, IDLER ASEM This part replaces 1501112YZMA. Price: $7.81 |
| 18 |
1501065MA |
BUSHING,IDLER BRKT Price: $5.09 |
| 19 |
53704MA |
SPRING, IDLER TRACTIO Price: $7.59 |
| 20 |
1502120MA |
IDLER, Plastic, Ball Bearing Price: $20.34 |
| 21 |
703230 |
NUT, 3/18-16, GR2 This part replaces 1960251SM. Price: $4.41 |
| 22 |
1960268SM |
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 This part replaces 585781MA. Price: $3.61 |
| 23 |
1501111YZMA |
IDLER ASSEMBLY, Auger Price: $26.10 |
| 24 |
1501200MA |
SPACER/AUGER BRKT Price: $5.23 |
| 25 |
703128 |
WASHER This part replaces 1960027SM. Price: $3.19 |
| 26 |
1733451SM |
ASSEMBLY, Spring Attachment Price: $19.49 |
| 27 |
703300 |
PIN, 3/32 X 1.6 This part replaces 711682MA. Price: $3.50 |
| 28 |
703313 |
PIN, CLEVIS, ZINC This part replaces 1736381YP. Price: $4.64 |
| 29 |
1753969BMYP |
COVER, Bottom This part replaces 1740906ASM. Price: $65.85 |
| 30 |
703054 |
SCREW, 1/4-20X0.625 This part replaces 1927429SM. Price: $3.82 |
| 31 |
165X160MA |
SPRING, Extension Price: $3.95 |
| 32 |
1740571LYP |
FRAME, Steerable Price: $98.99 |
| 33 |
1733583LYP |
ENGINE MOUNT Price: $38.49 |
| 34 |
703985 |
SCREW, 5/16-18X.5 This part replaces 1924856SM. Price: $3.61 |
| 35 |
703228 |
SCREW, 5/16-18 X .75 This part replaces 1664847SM. Price: $3.94 |
| 36 |
1502169MA |
COVER, BELT Price: $64.64 |
| 37 |
695757 |
CAP, Pipe Price: $5.47 |
| 38 |
696683 |
PIPE, Oil Drain Price: $9.60 |
| 39 |
1751355YP |
SCREW, 1/4-20 X 3/4 This part replaces 26X306MA. Price: $6.00 |
| 40 |
7023590SM |
PIN, Cotter, 1/4, Self-Locking Price: $3.61 |
| 41 |
794696 |
KEY SET Price: $7.17 |
