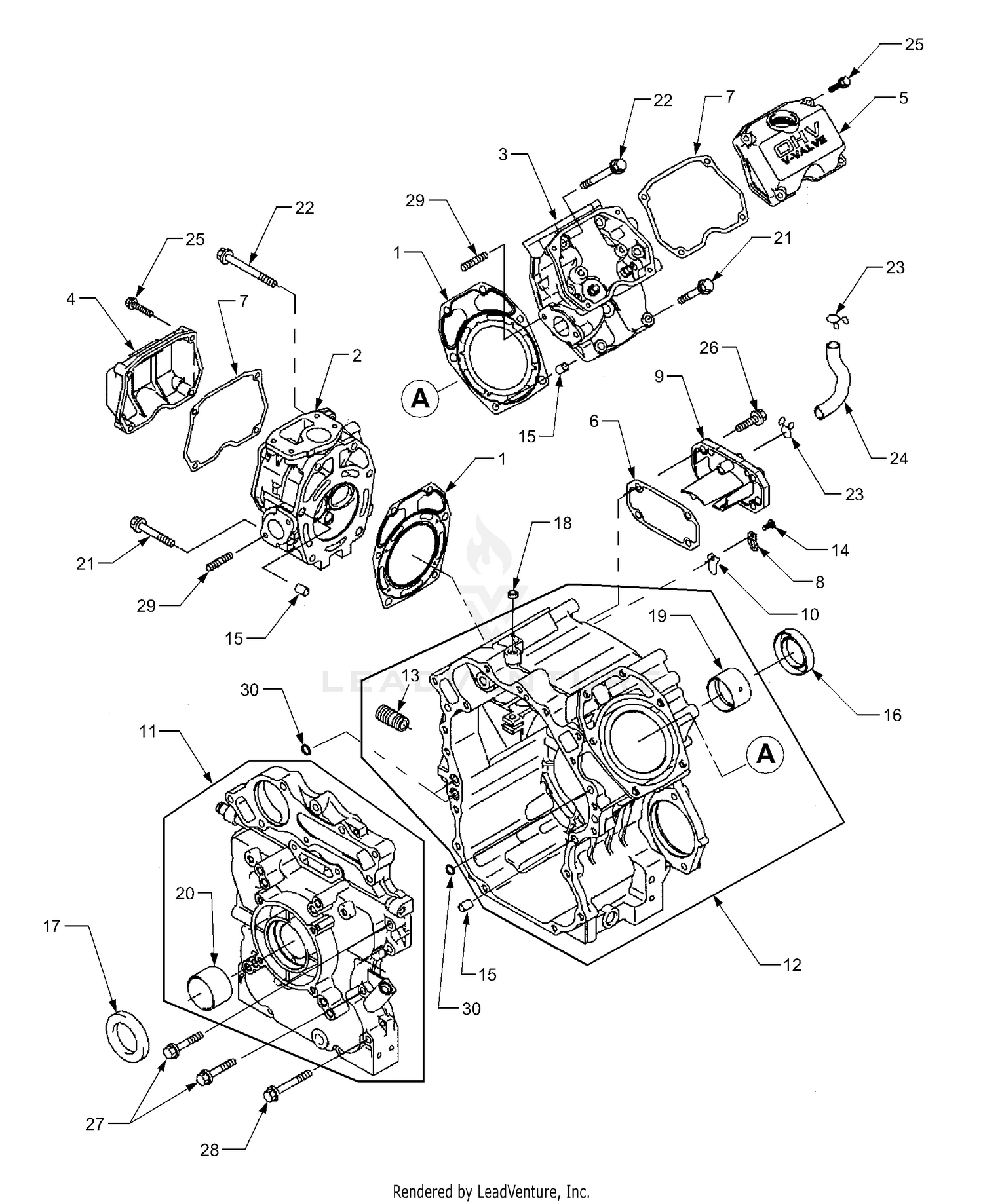

Cylinder Heads And Crankcase
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 93-4868-03 | ARM-LIFT, LH Price: $200.56 |
| 1 | KM-11004-2142 | CYLINDER HEAD GASKET Price: $85.35 |
| 2 | 93-4665 | BUSHING-FLANGE Price: $10.72 |
| 2 | KM-11008-0823 | CYLINDER HEAD #1 Not Available This part replaces KM-11008-2145. Price: |
| 3 | 33019-00 | NUT-HEX Price: $3.87 |
| 3 | KM-11008-2146 | CYLINDER HEAD Not Available Price: |
| 4 | 302-33 | FITTING-GREASE Price: $2.31 |
| 4 | KM-11022-2072 | ROCKER COVER Not Available Price: |
| 5 | 95-5699 | CYLINDER-HYD Price: $817.30 |
| 5 | KM-11022-2073 | ROCKER COVER Not Available Price: |
| 6 | 93-4639 | BUSHING Price: $10.11 |
| 6 | KM-11060-2466 | GASKET-BREATHER Not Available Price: |
| 7 | 104-0180 | CYLINDER PIVOT SERVICE KIT This part replaces 95-9646. Price: $131.23 |
| 7 | KM-11060-2470 | ROCKER COVER GASKET Not Available Price: |
| 8 | 33104-016 | SCREW-HHF Price: $0.97 |
| 8 | KM-13271-2105 | PLATE-BREATHER VAL Not Available Price: |
| 9 | 93-4630 | PIN Price: $99.80 |
| 9 | KM-14091-2064 | BREATHER COVER Not Available Price: |
| 10 | KM-16126-2225 | VALVE-BREATHER Not Available Price: |
| 11 | 33026-00 | NUT-HEX Price: $1.02 |
| 11 | KM-49015-6239 | CRANKCASE COVER Not Available Price: |
| 12 | 33116-150 | SCREW-HH Price: $6.24 |
| 13 | 33119-160 | SCREW-HH Price: $10.86 |
| 13 | KM-59071-2079 | Joint Price: $7.57 |
| 14 | KM-92009-2308 | SCREW Price: $2.40 |
| 15 | KM-92043-1037 | DOWEL PIN Price: $2.60 |
| 16 | KM-92049-2242 | OIL SEAL CRANKSHA Not Available Price: |
| 17 | KM-92049-2243 | OIL SEAL CRANKSHA Not Available Price: |
| 18 | KM-92093-2086 | SEAL Not Available Price: |
| 19 | 93-4587 | SPACER-PIVOT Price: $62.84 |
| 19 | KM-92141-2123 | BEARING-PLANE Not Available This part replaces KM-92141-2118. Price: |
| 20 | KM-92141-2124 | BEARING-PLANE Not Available This part replaces KM-92141-2119. Price: |
| 21 | KM-92153-2130 | BOLT 8X45 Not Available This part replaces KM-92151-2158. Price: |
| 22 | KM-92153-2132 | BOLT 8X85 Not Available This part replaces KM-92151-2159. Price: |
| 23 | KM-92170-2002 | CLAMP Not Available Price: |
| 24 | KM-92191-2105 | BREATHER TUBE Not Available Price: |
| 25 | KM-130G0630 | FLANGED BOLT Not Available Price: |
| 26 | KM-130CA0830 | FLANGED BOLT Not Available This part replaces KM-130G0830. Price: |
| 27 | KM-130BA0845 | FLANGED BOLT 8X45 Not Available This part replaces KM-130G0845. Price: |
| 28 | KM-130BA0860 | FLANGED BOLT 8X60 Not Available This part replaces KM-130G0860. Price: |
| 29 | KM-172BA0822 | BOLT-STUD,8X22 This part replaces KM-172G0822. Price: $2.63 |
