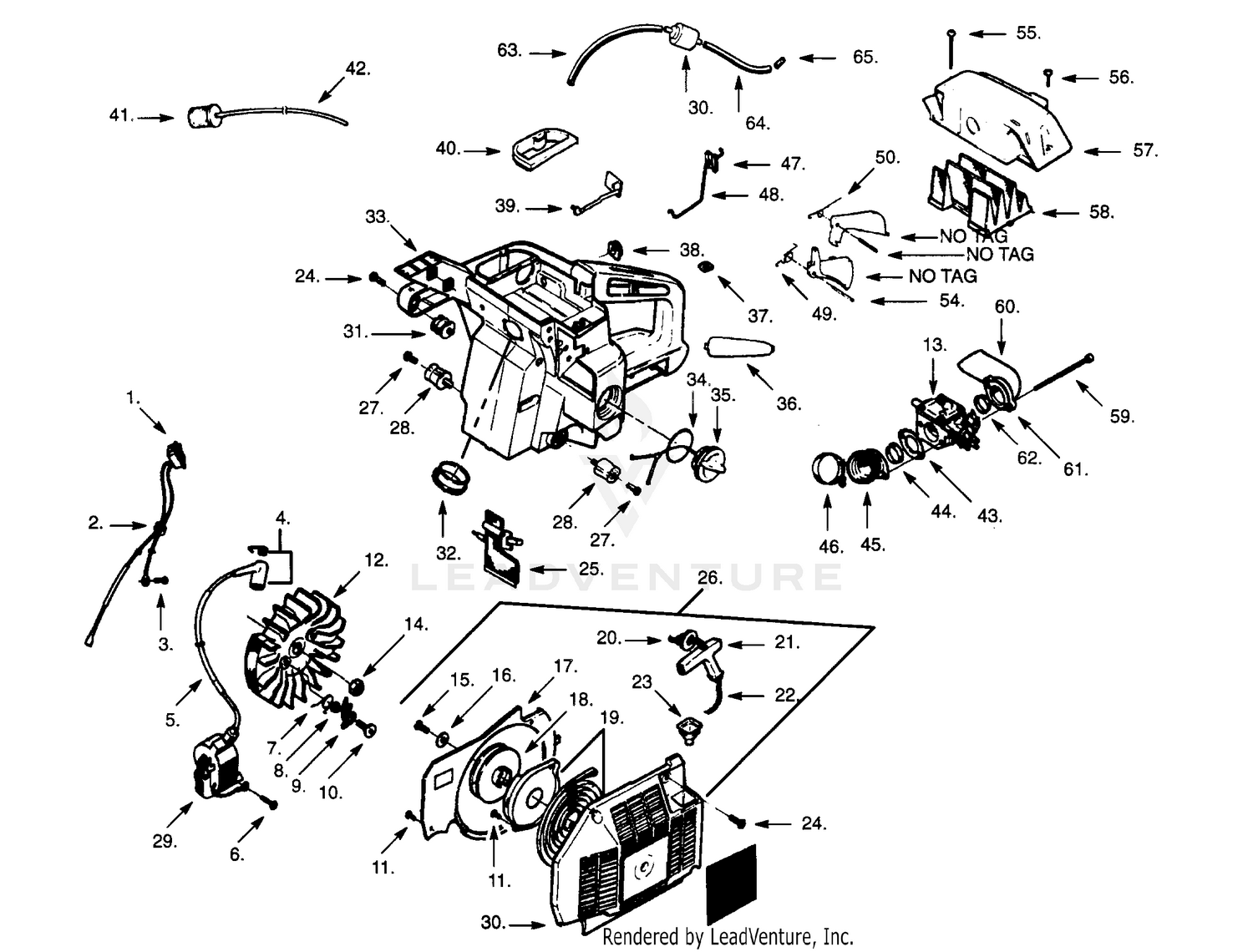

EXTERNAL POWER UNIT
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-6715 | GAUGE BAR ASM Price: $148.12 |
| 1 | 503427001 | Switch Ass'y. Price: $11.99 |
| 2 | 29-9100 | BRUSH AND HANDLE ASM Price: $58.15 |
| 2 | 501271302 | Grommet Price: $3.99 |
| 3 | 725528955 | Screw Price: Call Us |
| 4 | 501485402 | Plug Boot Price: $6.99 |
| 5 | 501527407 | Sleeve Price: $4.99 |
| 6 | 503202520 | Screw Price: $2.99 |
| 7 | 501673501 | Starter Dog Spring Price: $3.99 |
| 8 | 503230042 | Washer Price: $2.99 |
| 9 | 501673201 | Starter Dog Price: $5.99 |
| 10 | 501819901 | Screw Price: $2.99 |
| 11 | 503212810 | Screw Price: $1.99 |
| 12 | 503511503 | Flywheel Ass'y. Price: $54.99 |
| 13 | 503281209 | Carburetor Price: $139.99 |
| 14 | 503220001 | Nut Price: $2.99 |
| 15 | 503210716 | Screw Price: $2.99 |
| 16 | 734180951 | Washer Price: $1.99 |
| 17 | 503423001 | Air Baffle Price: $7.99 |
| 18 | 503432101 | Starter Pulley Price: $22.99 |
| 19 | 503431901 | Starter Spring Price: $11.99 |
| 20 | 503142902 | Washer Price: $1.99 |
| 21 | 504654203 | Handle Price: $6.99 |
| 22 | 501201502 | Rope Price: $5.99 |
| 23 | 501630601 | Eyelet Price: $6.99 |
| 24 | 503200216 | Screw Price: $2.99 |
| 25 | 503434101 | Pre Cleaner Price: Call Us |
| 26 | 503432503 | Fan Housing/Starter Ass'y (Inc.11,15-23,30) Price: $3.33 |
| 27 | 503200710 | SCREW M5 X 10 This part replaces 503200210. Price: $2.99 |
| 28 | 501814701 | Shock Mount Price: $11.99 |
| 29 | 503620203 | Model 415 Price: $79.99 |
| 29 | 503620502 | Model 475 Price: $139.99 |
| 30 | 503164001 | Check Valve Price: $19.99 |
| 31 | 501269702 | Standard Price: $9.99 |
| 31 | 504125014 | Heavy Duty Price: $32.99 |
| 32 | 503431401 | Inner Sealing Ring Price: $9.99 |
| 34 | 501278201 | O Ring Price: $3.99 |
| 35 | 501431402 | TANK CAP This part replaces 501431401. Price: $11.99 |
| 36 | 503427502 | Insert Price: $4.99 |
| 37 | 503226504 | NUT This part replaces 503226501. Price: $2.99 |
| 38 | 501527801 | Grommet Price: $4.99 |
| 39 | 503432402 | Choke Knob Price: $5.99 |
| 40 | 503430401 | Gasket Price: $3.74 |
| 41 | 503443201 | Fuel Filter Price: $7.99 |
| 42 | 501768313 | Fuel Line Price: $2.99 |
| 43 | 503434001 | Gasket Price: $3.99 |
| 44 | 503431801 | Outer Sealing Ring Price: $5.99 |
| 45 | 503431501 | Manifold Tube Price: $24.99 |
| 46 | 503560003 | Clamp Price: $4.99 |
| 47 | 503436001 | Grommet Price: $2.99 |
| 48 | 503434801 | Throttle Wire Price: $2.99 |
| 49 | 503428001 | Spring Price: $1.99 |
| 50 | 503424901 | Spring Price: $2.99 |
| 51 | 503424402 | Trigger Lock Price: $4.99 |
| 52 | 720123820 | Pin Price: $1.99 |
| 53 | 503424502 | Trigger Price: $4.99 |
| 54 | 720123620 | Pin Price: $2.99 |
| 55 | 503203242 | Screw Price: $1.99 |
| 56 | 503203216 | Screw Price: $2.99 |
| 57 | 503433103 | Air Filter Cover Price: $3.33 |
| 58 | 503433402 | Flock Filter Price: Call Us |
| 58 | 503433403 | Coarse Nylon Mesh This part replaces 503433401. Price: $5.99 |
| 59 | 503202355 | Screw This part replaces 503202301. Price: $1.99 |
| 60 | 503432801 | Air Inlet Tube Price: Call Us |
| 61 | 503424201 | Cover Price: Call Us |
| 62 | 503431701 | Sealing Ring Price: $12.99 |
| 63 | 501768304 | Fuel Line Price: $1.99 |
| 64 | 501768307 | Fuel Line Price: $1.99 |
