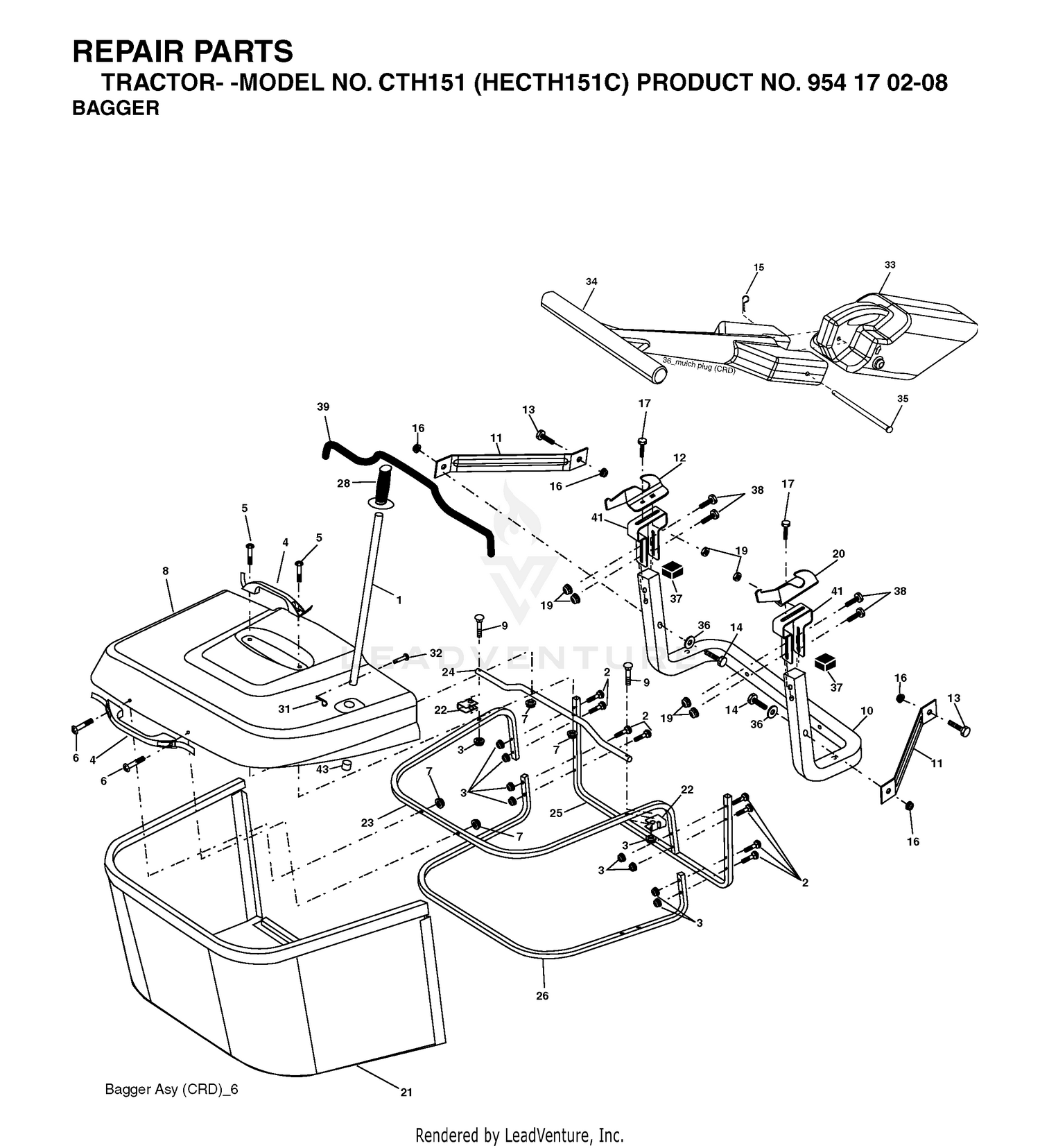

| Ref | Part Number | Description |
|---|
| 1 |
325-5 |
SCREW-HH Price: $1.20 |
| 1 |
532170690 |
TUBE HANDLE BAGGER This part replaces 532165249. Price: $7.14 |
| 2 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
872140416 |
Bolt Carriage 1/4-20 x 2.0 Gr.5 Price: $4.99 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
53-5250-01 |
HANDLE - LIFT, LONG This part replaces 53-5250. Price: $58.10 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
3-7877 |
GRIP-HANDLE Price: $10.69 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
53-5260-01 |
HANDLE - LIFT, SHORT This part replaces 53-5260. Price: $107.16 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 7 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
5-4693 |
CHAIN Price: $30.29 |
| 8 |
532441543 |
COVER.PNT.BGR.CRD.WSLOTS.MS668 This part replaces 532181095. Price: $199.99 |
| 9 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
282-13 |
DISCONTINUED Price: Call Us |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 11 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $7.99 |
| 13 |
53-5100-01 |
CENTER FRAME This part replaces 53-5100. Price: $2,251.94 |
| 13 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 14 |
32153-5 |
NUT-HEX Price: $1.59 |
| 14 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 15 |
12-0010 |
U BOLT W.A. Price: $81.76 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $7.99 |
| 21 |
532180880 |
GRASS BAG Price: $130.99 |
| 22 |
5-1091 |
SPACER Price: $4.98 |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 23 |
325-10 |
SCREW-HH Price: $1.82 |
| 23 |
532165782 |
TUBE.UPPER.BAG.CRD Price: $279.99 |
| 24 |
53-4910-01 |
DRAWBAR This part replaces 53-4910. Price: $939.13 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
3272-38 |
PIN-COTTER Price: $3.05 |
| 25 |
532180124 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
53-5230-01 |
SUPPORT-FRAME This part replaces 53-5230. Price: $157.68 |
| 26 |
532165785 |
TUBE.LOWER.BAG.CRD Price: $32.99 |
| 27 |
327-23 |
SCREW-HH Price: $3.60 |
| 28 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 29 |
3296-24 |
NUT-HEX Price: $4.44 |
| 30 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 31 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550. Price: $161.64 |
| 31 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
583448501 |
MULCHING.PLUG.92.CRD.NON-TEX This part replaces 532165571. Price: $19.99 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD This part replaces 532180985. Price: $29.99 |
| 41 |
532169683 |
BRKT.VERT.ADJ.BAGGER.CRD Price: $4.99 |
| 42 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
