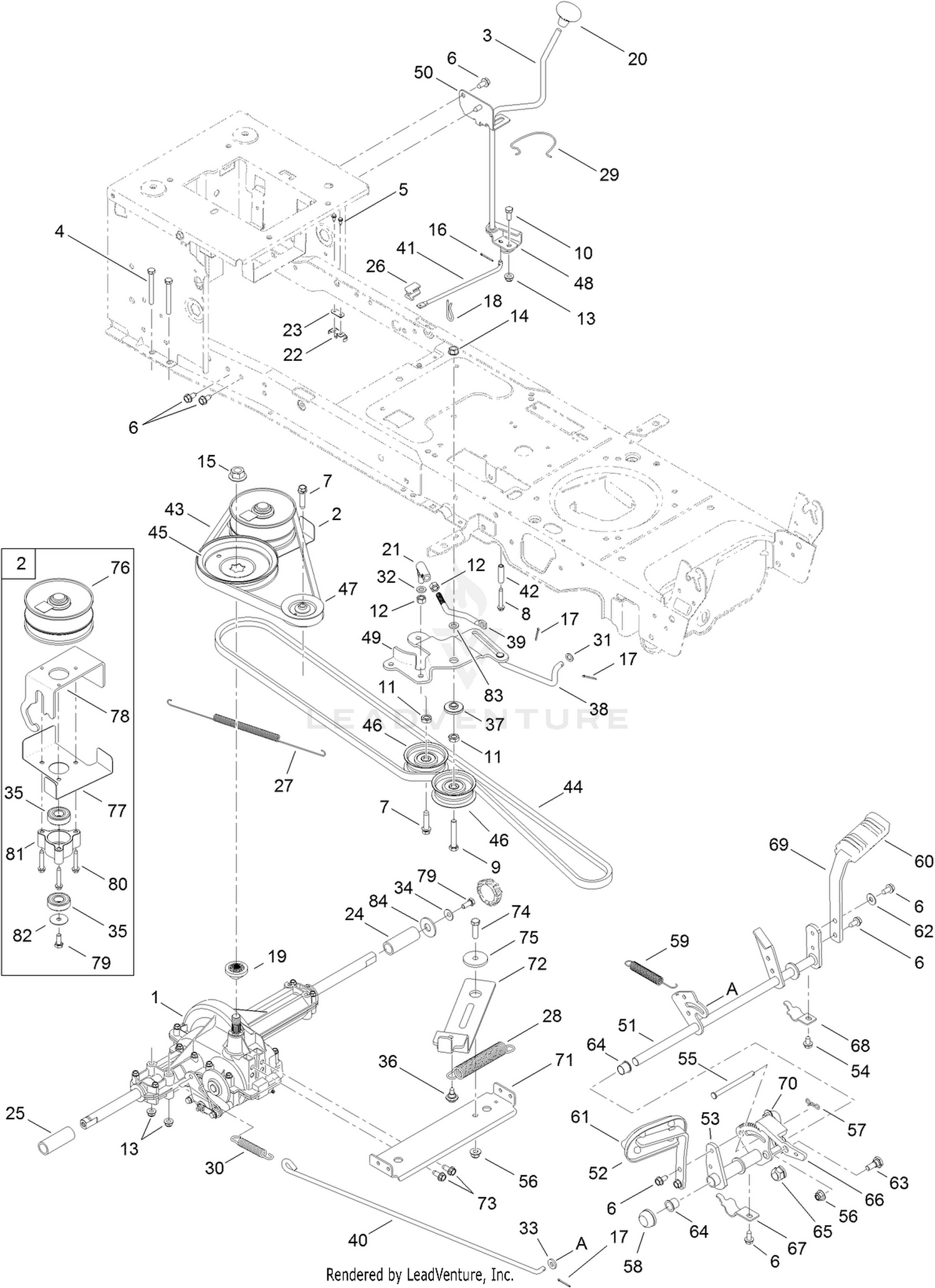

| Ref | Part Number | Description |
|---|
| 1 |
112-6256 |
TRANSMISSION DRIVE ASM Price: $677.98 |
| 3 |
119-8414 |
SHIFT LEVER ASM Price: $36.32 |
| 4 |
112-0714 |
SCREW-HEX Price: $3.52 |
| 5 |
112-0626 |
SCREW-HWHTF Price: $3.52 |
| 6 |
112-6070 |
SCREW-TAP Price: $3.24 |
| 7 |
112-0469 |
SCREW-TAP Price: $5.06 |
| 8 |
112-5828 |
SCREW-HH Price: $4.08 |
| 9 |
112-6009 |
SCREW-HH Price: $6.29 |
| 10 |
119-8415 |
SCREW Price: $4.13 |
| 11 |
112-0493 |
NUT-JAM Price: $3.52 |
| 12 |
112-0343 |
NUT-HEX Price: $3.50 |
| 13 |
112-0650 |
NUT-LOCK, FLANGE Price: $3.42 |
| 14 |
112-0385 |
NUT-LOCK, FLANGE Price: $3.48 |
| 15 |
112-0451 |
NUT-FLANGE Price: $9.21 |
| 16 |
112-0459 |
DISCONTINUED Price: Call Us |
| 17 |
112-0568 |
PIN-COTTER Price: $3.63 |
| 18 |
112-0639 |
PIN-HAIR Price: $3.16 |
| 19 |
112-6235 |
HUB-PULLEY, SPLINE Price: $11.80 |
| 20 |
112-0514 |
KNOB-SHIFT Price: $8.44 |
| 21 |
112-0306 |
DISCONTINUED Price: Call Us |
| 22 |
112-0602 |
SWITCH-SPRING, SHORT Price: $6.48 |
| 23 |
112-0625 |
PLATE-INSULATOR Price: $3.83 |
| 24 |
112-0670 |
SLEEVE Price: $4.60 |
| 25 |
112-0683 |
SLEEVE Price: $4.60 |
| 26 |
119-8416 |
BEARING-PLATE, SHIFT Price: $5.95 |
| 27 |
119-8417 |
SPRING-EXTENSION Price: $15.38 |
| 28 |
119-9124 |
SPRING-EXTENSION Price: $14.52 |
| 29 |
112-0357 |
CLIP-SPRING, SHIFTER Price: $5.80 |
| 30 |
112-0350 |
SPRING-EXTENSION Price: $10.58 |
| 31 |
112-0407 |
WASHER-FLAT Price: $3.52 |
| 32 |
112-0415 |
WASHER-LOCK Price: $3.02 |
| 33 |
112-0579 |
WASHER-FLAT Price: $5.45 |
| 34 |
112-0435 |
WASHER-BELL Price: $3.50 |
| 35 |
112-0423 |
BEARING-BALL Price: $21.88 |
| 36 |
112-6128 |
BOLT-SHOULDER, TAP Price: $3.06 |
| 37 |
119-8419 |
SPACER-SHOULDER Price: $4.48 |
| 38 |
119-8420 |
ROD-BYPASS, FOOT PEDAL Price: $13.22 |
| 39 |
119-8421 |
ROD-ADJUSTMENT, IDLER Price: $13.22 |
| 40 |
119-8422 |
ROD-BRAKE Price: $20.50 |
| 41 |
119-8423 |
ROD-SHIFT Price: $12.68 |
| 42 |
112-5831 |
SPACER Price: $4.12 |
| 43 |
119-8424 |
BELT-V, POLY Price: $31.74 |
| 44 |
112-0301 |
BELT-DRIVE, VARIABLE SPEED Price: $43.77 |
| 45 |
112-0379 |
PULLEY-V (W/HUB) Price: $30.49 |
| 46 |
112-0313 |
PULLEY-IDLER, FLAT Price: $26.34 |
| 47 |
112-6149 |
PULLEY-IDLER, Y TYPE Price: $23.84 |
| 48 |
119-8426 |
BRACKET-ADJUSTMENT, SHIFT Price: $5.40 |
| 49 |
119-8427 |
BRACKET-IDLER, CENTER DOUBLE Price: $31.35 |
| 50 |
119-8428 |
BRACKET-SHIFT Price: $9.05 |
| 51 |
119-8429 |
BRAKE CONTROL ASM Price: $48.07 |
| 52 |
112-0680 |
PEDAL ASM Price: $79.38 |
| 53 |
119-8430 |
PEDAL BRACKET ASM Price: $55.34 |
| 54 |
112-0556 |
SCREW-HWH Price: $3.48 |
| 55 |
119-8431 |
PIN-CLEVIS Price: $7.25 |
| 56 |
112-0668 |
NUT-LOCK, FLANGE Price: $3.38 |
| 57 |
112-0990 |
PIN-COTTER Price: $3.31 |
| 58 |
119-8432 |
CAP-PUSH Price: $9.92 |
| 59 |
119-8433 |
SPRING-EXTENSION Price: $5.95 |
| 60 |
119-8434 |
PAD-PEDAL, BRAKE Price: $14.28 |
| 61 |
112-0543 |
DISCONTINUED Price: Call Us |
| 62 |
112-0435 |
WASHER-BELL Price: $3.50 |
| 63 |
112-0442 |
DISCONTINUED Price: Call Us |
| 64 |
119-8435 |
BEARING-FLANGE Price: $4.48 |
| 65 |
112-0387 |
BEARING-FLANGE, HEX (SPLIT) Price: $5.96 |
| 66 |
119-8436 |
LATCH-CRUISE Price: $13.22 |
| 67 |
119-8437 |
BRACKET-STRAP, PEDAL SUPPORT Price: $3.59 |
| 68 |
119-8438 |
BRACKET-STRAP, PEDAL SUPPORT Price: $3.59 |
| 69 |
119-8439 |
BRACKET-PEDAL, BRAKE Price: $16.85 |
| 70 |
119-8440 |
BRACKET-PLATE, REINFORCEMENT Price: $5.95 |
| 71 |
119-8441 |
BRACKET-TRANSMISSION Price: $29.02 |
| 72 |
119-8442 |
BRACKET-IDLER Price: $24.98 |
| 73 |
112-0395 |
SCREW-HWH Price: $6.55 |
| 74 |
112-0557 |
SCREW-HH Price: $3.52 |
| 75 |
112-0584 |
SPACER-SHOULDER Price: $21.03 |
| 76 |
119-8470 |
PULLEY ASM Price: $90.73 |
| 77 |
119-8443 |
BELT KEEPER ASM Price: $14.52 |
| 78 |
119-9122 |
BRACKET ASM Price: $37.21 |
| 79 |
112-0551 |
SCREW-HH Price: $3.48 |
| 80 |
112-0843 |
SCREW-HWH Price: $3.52 |
| 81 |
112-5996 |
DISCONTINUED Price: Call Us |
| 82 |
112-0500 |
WASHER-FLAT Price: $3.52 |
| 83 |
119-9065 |
WASHER-FLAT Price: $4.48 |
