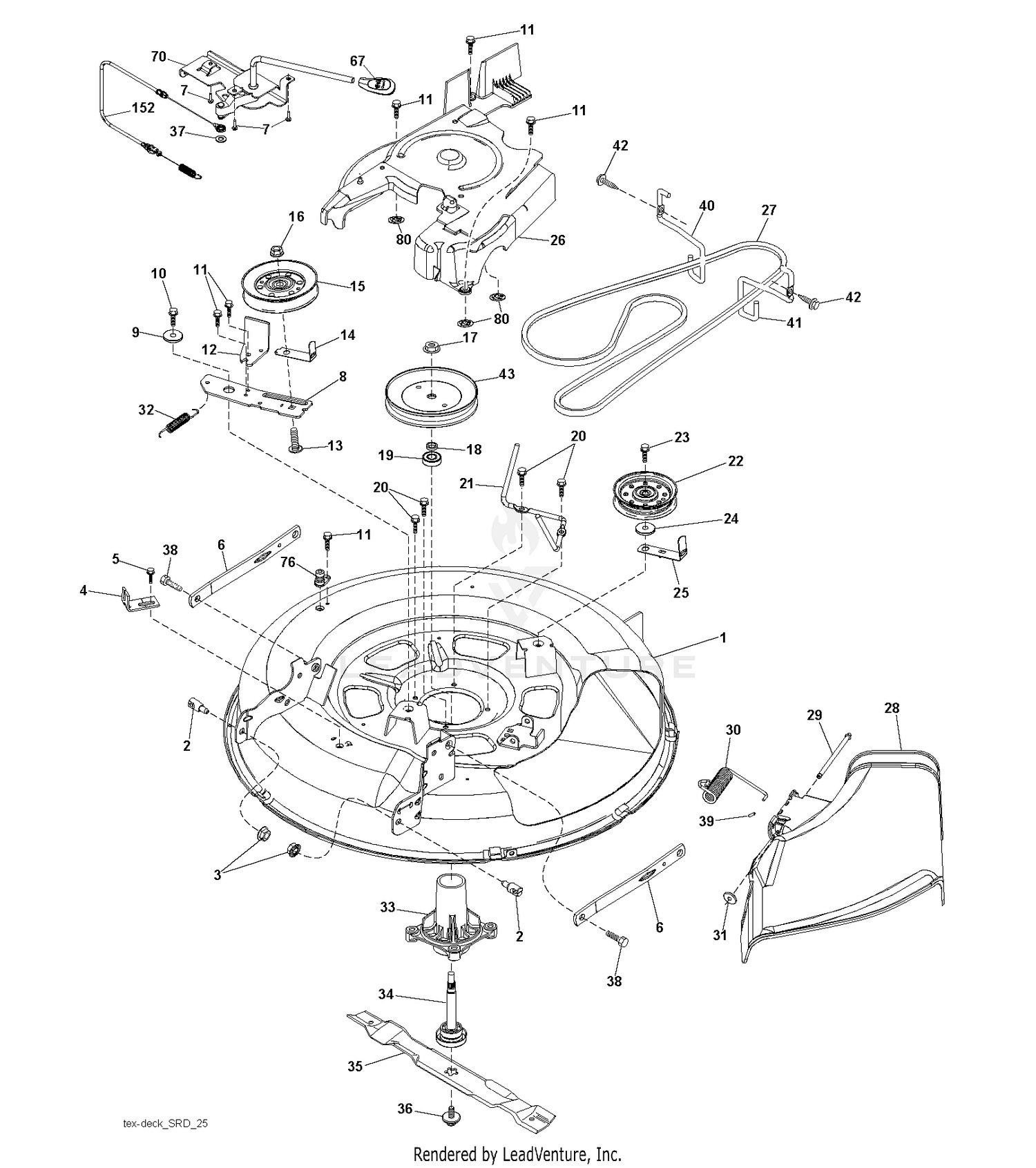

| Ref | Part Number | Description |
|---|
| 1 |
583749801 |
DECK.SVC.WLDT.30"SRDPNT This part replaces 532419272. Price: $279.99 |
| 1 |
94-2672 |
CHUTE ASSEMBLY This part replaces 44-5300. Price: $596.99 |
| 2 |
3290-409 |
RIVET Price: $0.34 |
| 2 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 3 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 4 |
532417645 |
BRACKET.CLUTCH.CABLE Price: $4.99 |
| 4 |
82-5510 |
DECAL-WARNING Price: $7.09 |
| 5 |
56-4780-03 |
IMPELLER ASM This part replaces 56-4780. Price: $926.99 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 6 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 6 |
532418863 |
ARMS.SUSP.MOWER.REAR.SRD Price: $17.99 |
| 7 |
59-5070-03 |
MTG PLATE ASM This part replaces 59-5070. Price: $328.99 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 8 |
583379801 |
ARM.IDLER.30"SRD This part replaces 532420252. Price: $7.99 |
| 8 |
74-0910-03 |
BRACKET This part replaces 59-4980. Price: $63.99 |
| 9 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 9 |
59-5050 |
LH BRACKET ASM, WELDED Price: $122.99 |
| 10 |
59-5140-03 |
BLOWER MT ASM This part replaces 59-5140. Price: $186.99 |
| 10 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 11 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 12 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $14.99 |
| 12 |
62-6520 |
KNOB Price: $7.79 |
| 13 |
3257-40 |
KEY Price: $7.99 |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 14 |
53-4530-03 |
GEAR BOX ASM This part replaces 53-4530. Price: $1,650.99 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 15 |
59-5150-01 |
GEARBOX COVER This part replaces 59-5150. Price: $41.91 |
| 15 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 16 |
3255-17 |
WASHER-LOCK, EXT Price: $0.29 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
3290-134 |
SCREW Price: $0.27 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 18 |
323-7 |
SCREW-HH Price: $0.65 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 19 |
532110485 |
BEARING Price: $11.99 |
| 19 |
74-0910-03 |
BRACKET This part replaces 59-5000. Price: $63.99 |
| 20 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 20 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 21 |
3218-3 |
NUT-JAM Price: $0.25 |
| 21 |
532416910 |
KEEPER.BELT.MANDREL.30" Price: $12.99 |
| 22 |
59-5090 |
RH BRACKET ASM, WELDED Price: $129.99 |
| 22 |
596481402 |
PULLEYS This part replaces 532193198. Price: $22.99 |
| 23 |
322-3 |
SCREW-HH Price: $0.79 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 24 |
44-5460-03 |
LH PLT BRKT This part replaces 44-5460. Price: $16.99 |
| 24 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 25 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 25 |
529311701 |
KEEPER, BELT, BLACK This part replaces 532420253. Price: $4.99 |
| 26 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 26 |
583481101 |
COVER.ASM.MANDREL.30" This part replaces 532420255. Price: $49.99 |
| 27 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 27 |
532419271 |
V-BELT.DRIVE.MOWER.30" Price: $49.99 |
| 28 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 28 |
532417344 |
SHIELD.DEFLECT.MWR.30S.BLACK Price: $37.99 |
| 29 |
593885101 |
Rods This part replaces 532420895. Price: $5.99 |
| 29 |
63-9710 |
SPACER-BEARING Price: $10.24 |
| 30 |
321-3 |
SCREW-HH Price: $0.28 |
| 30 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 31 |
13-0269 |
BLOWER HOUSING ASM Price: $579.99 |
| 31 |
532110452 |
NUT PUSH M Price: $2.99 |
| 32 |
37-6730 |
CUP-BEARING Price: $15.84 |
| 32 |
532401872 |
SPRING RETURN Price: $4.99 |
| 33 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 34 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 34 |
63-9700-03 |
PLATE-COVER This part replaces 63-9700. Price: $18.43 |
| 35 |
43-0940 |
SPACER Price: $1.25 |
| 35 |
532419273 |
BLADE, MULCH.LRV30 Price: $29.99 |
| 36 |
3235-22 |
SCREW-HH, LOCK Price: $2.59 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 37 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
43-0960-03 |
BRACKET-CHUTE This part replaces 43-0960. Price: $18.26 |
| 38 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 39 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 40 |
532419270 |
KEEPER.BELT.ENGINE.LH.LT.SRD Price: $14.99 |
| 41 |
532419265 |
KEEPER.BELT.ENGINE.RH.LT.SRD Price: $11.99 |
| 42 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 43 |
525568002 |
PULLEY.MANDREL 6.5" PULLEY This part replaces 532416877. Price: $24.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $32.99 |
| 76 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 80 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $29.99 |
