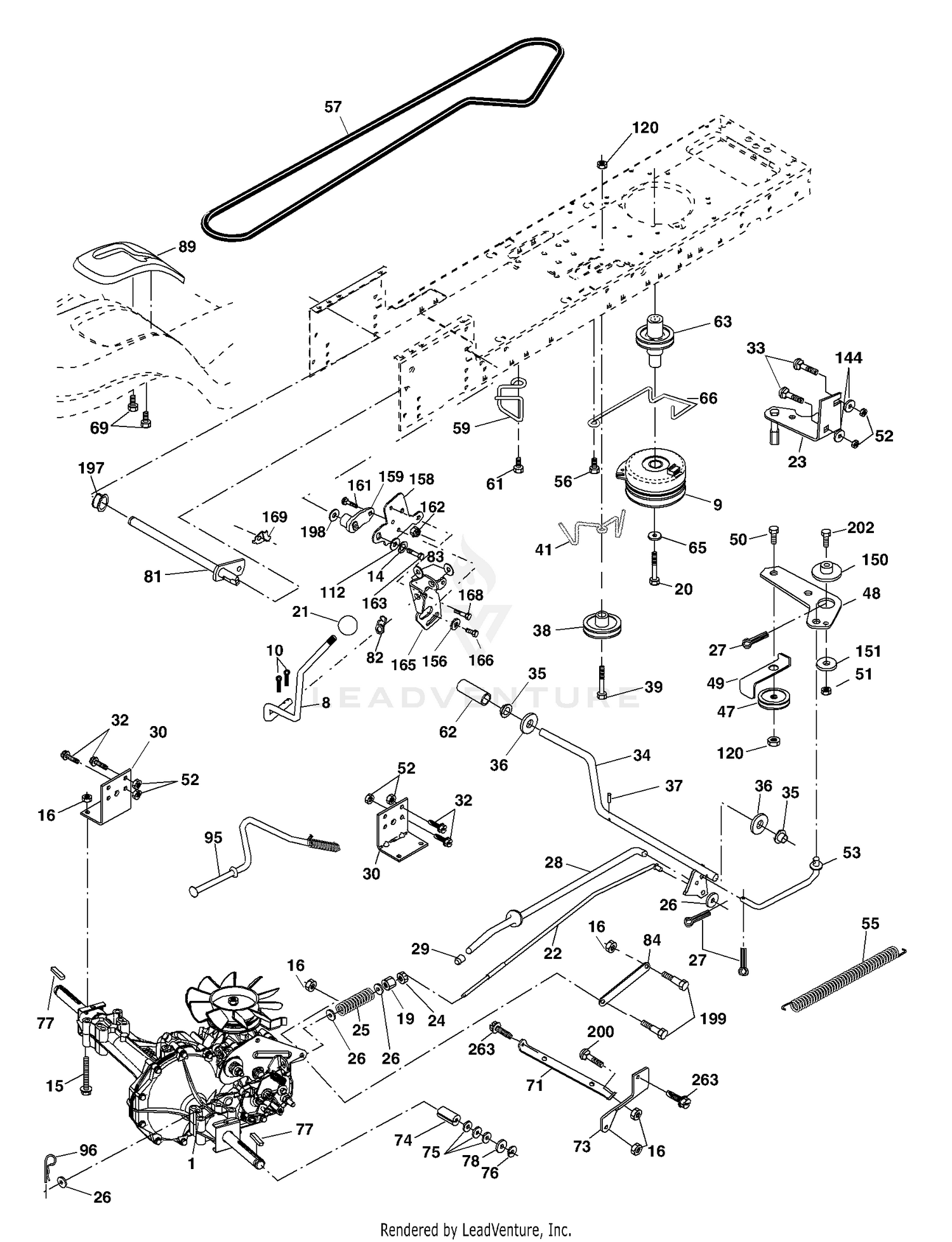

| Ref | Part Number | Description |
|---|
| 1 |
68-5370 |
DECAL Price: $6.21 |
| 2 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 3 |
21-9260 |
COVER-DUST Price: $8.19 |
| 4 |
82-8660-01 |
COVER-TOWER Price: $30.45 |
| 5 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 6 |
67-8690-03 |
SUPPORT-COLUMN Price: $81.08 |
| 7 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 8 |
165866 |
Rod Shift Fend. Price: Call Us |
| 8 |
77-3120-01 |
BRACKET-MOUNTING, COLUMN Price: $49.33 |
| 9 |
160889 |
Clutch Electric Price: Call Us |
| 9 |
80-2960 |
SPACER-TOWER Price: $11.13 |
| 10 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 Price: Call Us |
| 11 |
82-8760 |
ELBOW-HYD Price: $59.61 |
| 12 |
63-8970 |
HOSE-HYD Price: $162.31 |
| 13 |
70-1390 |
SLEEVE-PROTECTIVE Price: $42.56 |
| 14 |
10040400 |
Washer Lock Hvy 1/4 Price: Call Us |
| 14 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 15 |
74490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: Call Us |
| 16 |
68-9730 |
HOSE-STEERING, HYD Price: $116.90 |
| 16 |
73800500 |
Nut Lock Hex W/Ins. 5/16-18 unc Price: Call Us |
| 17 |
126197X |
Washer 1-1/2 x 15/32 x .250 Price: Call Us |
| 17 |
68-9720 |
HOSE-STEERING, HYD Price: $118.16 |
| 18 |
82-8770 |
ELBOW-HYD Price: $73.15 |
| 19 |
63-8980 |
HOSE-HYD Price: $160.86 |
| 19 |
73800600 |
Nut Lock Hex W/Wsh 3/8-16 unc Price: Call Us |
| 20 |
150280 |
Bolt Hex 7/16-20 x 4-1/4 5 Ga. 1.38 Price: Call Us |
| 20 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 21 |
106933X |
Knob Price: Call Us |
| 21 |
108-6557 |
STEER VALVE AND COLUMN ASM Price: $1,800.82 |
| 22 |
169498 |
Rod, Brake Price: Call Us |
| 22 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 23 |
171258 |
Bracket Asm Anti-Rotation Price: Call Us |
| 23 |
323-6 |
SCREW-HH Price: $0.66 |
| 24 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 24 |
73350600 |
Nut, Hex Jam 3/8-16 unc Price: Call Us |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 25 |
80-2940-03 |
PLATE-PIVOT Price: $40.35 |
| 26 |
19131316 |
Washer Price: Call Us |
| 26 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 27 |
31-0390 |
DISC-FRICTION Price: $11.25 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: Call Us |
| 28 |
108-6092 |
LEVER-STEERING, TILT This part replaces 93-1353-03. Price: $49.30 |
| 28 |
175765 |
Rod, Parking Brake Price: Call Us |
| 29 |
21-1880 |
GRIP-HANDLE Price: $11.67 |
| 29 |
71673 |
Knob Brake Parking Price: Call Us |
| 30 |
169592 |
Bracket, Transaxle Price: Call Us |
| 30 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 31 |
82-8650 |
CLAMP-COLUMN Price: $16.37 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 unc x 3/4 Price: Call Us |
| 32 |
82-9010 |
DISC-FRICTION Price: $15.53 |
| 33 |
80-2930 |
WASHER-FLAT Price: $5.00 |
| 34 |
175578 |
Shaft, Foot Pedal Price: Call Us |
| 34 |
80-2880 |
BRACKET-TILT Price: $18.75 |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 35 |
32128-20 |
NUT-HF Price: $0.99 |
| 36 |
19211616 |
Washer Price: Call Us |
| 36 |
3218-7 |
NUT-JAM Price: $3.86 |
| 37 |
1572H |
Pin, Roll Price: Call Us |
| 37 |
82-8940 |
DECAL-STEERING, TILT Price: $24.33 |
| 38 |
179114 |
Pulley, Composite Price: Call Us |
| 38 |
322-4 |
SCREW-HH Price: $0.35 |
| 39 |
70-1380 |
SLEEVE-PROTECTIVE Price: $42.56 |
| 39 |
72110622 |
Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5 Price: Call Us |
| 41 |
175556 |
Keeper, Belt Idler Flat Price: Call Us |
| 47 |
127783 |
Pulley, Idler, V-Groove Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drw Stl Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
72110612 |
Bolt Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 52 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
140294 |
V-Belt, Ground Drive Price: Call Us |
| 59 |
169691 |
Keeper, Center Span Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
123533X |
Cover, Pedal Price: Call Us |
| 63 |
175414 |
Pulley, Engine Price: Call Us |
| 65 |
10040700 |
Washer Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 69 |
142432 |
Screw Hex Wsh H-Lo 1/4-1/2 unc Price: Call Us |
| 71 |
169183 |
Strap Torque LH Price: Call Us |
| 73 |
169182 |
Strap Torque RH Price: Call Us |
| 74 |
137057 |
Spacer, Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 81 |
165596 |
Shaft Assy. Cross Taper Price: Call Us |
| 82 |
165711 |
Spring Torsion Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 84 |
169594 |
Link Transaxle Price: Call Us |
| 89 |
188309X428 |
Console, Shift Price: Call Us |
| 95 |
170201 |
Rod Bypass Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/Cad Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 unc Price: Call Us |
| 144 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer 5/16 ID x 1.0 x .125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastener Cross Shf. Price: Call Us |
| 197 |
169613 |
Nyliner Snap-in 5/8 ID Price: Call Us |
| 198 |
169593 |
Washer Nyl 7/8 ID x .105" Price: Call Us |
| 199 |
169612 |
Bolt Shoulder 5/16-18 unc Price: Call Us |
| 200 |
72140508 |
Bolt Rdhd Sqnk 5/16-18 unc x 1 Price: Call Us |
| 202 |
72110614 |
Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
| 254 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
