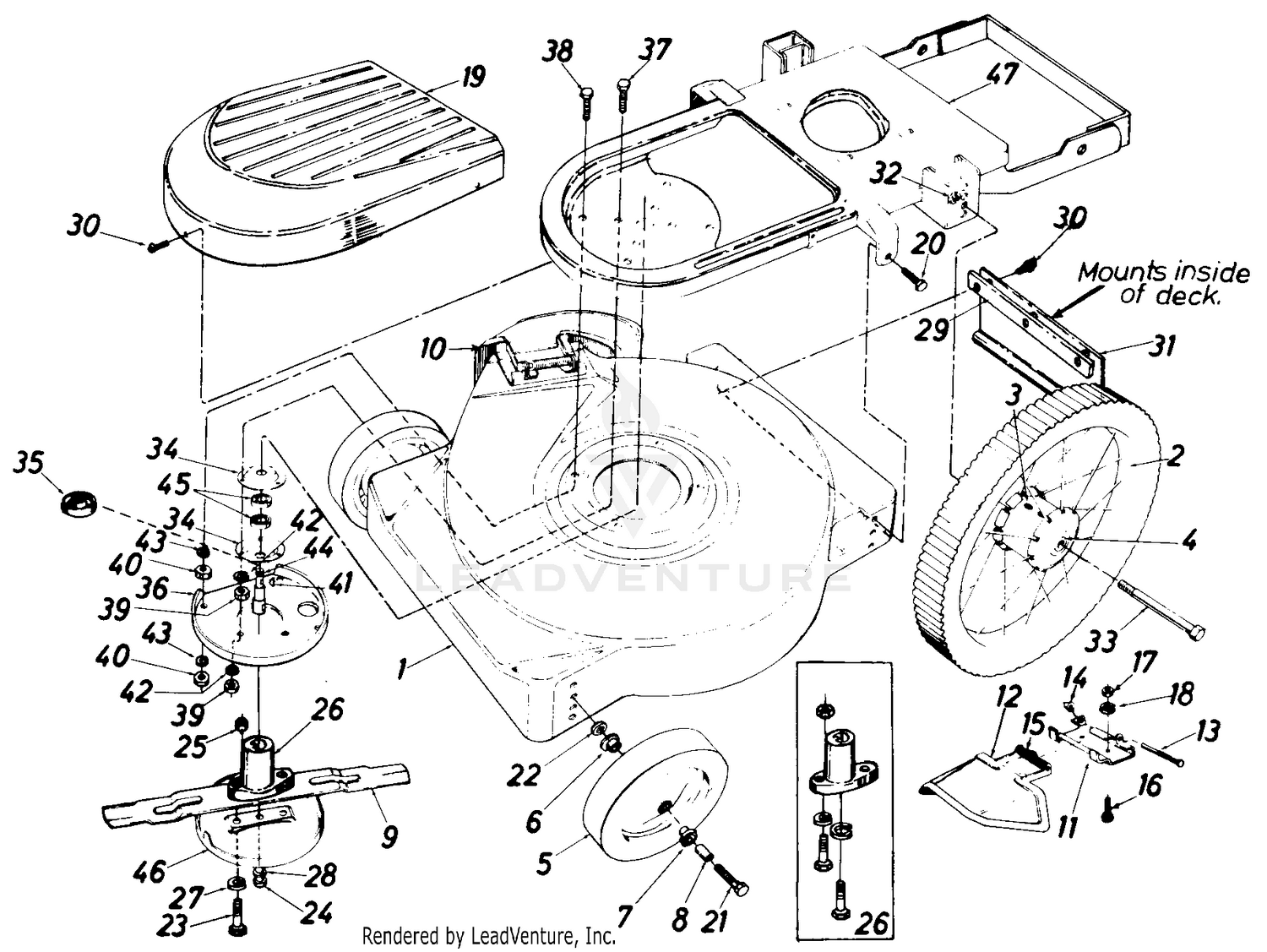

| Ref | Part Number | Description |
|---|
| 1 |
14918 |
DECK ASSEM Not Available Price: |
| 3 |
718-0132 |
CAP-PLASTIC Not Available Price: |
| 4 |
741-0113 |
BALL BEARING Not Available Price: |
| 5 |
734-0642 |
WHEEL ASS'Y. COMP. - FRONT - 8 x 1.75 Not Available Price: |
| 6 |
741-0267 |
FORTIFLEX BEARING Not Available Price: |
| 7 |
941-0484 |
BALL BEARING This part replaces 741-0484. Price: $6.87 |
| 8 |
750-0434 |
Spacer Price: $6.01 |
| 10 |
11679 |
DEFLECTOR Not Available Price: |
| 11 |
11130 |
ADAPTER PLATE Not Available Price: |
| 12 |
11141 |
CHUTE DEFLECTO Not Available Price: |
| 13 |
711-0555 |
PIVOT PIN Not Available Price: |
| 14 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 15 |
732-0253 |
TORSION SPRING Not Available Price: |
| 16 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 17 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 18 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 19 |
08295 |
Blade Spindle Cover Price: Call Us |
| 20 |
710-0209 |
HEX SCREW SEMS 3/8-16 x .62 Not Available Price: |
| 21 |
710-3144 |
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) This part replaces 710-0427. Price: $4.02 |
| 22 |
736-0105 |
Bell-Wash. .400" I.D. x .88" Price: $3.96 |
| 23 |
710-0888 |
Hex Bolt 5/16-24 x 1.00" Lg. Price: $3.86 |
| 24 |
710-0331 |
Hex Bolt 3/8-24 x 2.25" Lg. Price: $6.01 |
| 25 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 26 |
753-0348 |
Blade Adapter Kit Price: Call Us |
| 27 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 28 |
736-0217 |
L-Wash. 3/8" I.D.-H.D. Price: $3.86 |
| 29 |
14836 |
STRIP-RETA Not Available Price: |
| 30 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 31 |
731-0587 |
FLAP-RR Not Available Price: |
| 32 |
736-0105 |
Bell-Wash. .400" I.D. x .88" Price: $3.96 |
| 33 |
738-0114 |
SHOULDER SCREW .498 DIA x 4.755 Not Available Price: |
| 34 |
08253B |
Bearing Housing This part replaces 08253. Price: $17.97 |
| 35 |
13703 |
SHIELD-BRG Not Available Price: |
| 36 |
15486 |
Blade Reinforcement Plate Price: Call Us |
| 37 |
710-0672 |
Hex Bolt 5/16-24 x 1.25" Lg. This part replaces 710-0158. Price: $3.85 |
| 38 |
710-0191 |
Hex Bolt 3/8-24 x 1.25" Lg. Price: $4.02 |
| 39 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 40 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 42 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 43 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 44 |
738-0552 |
BLADE SPINDLE Not Available Price: |
| 45 |
749-0919 |
BALL BEARING .787" I.D. x 1.85" O.D. Not Available Price: |
| 46 |
07919 |
PLATE-ANTI SCALP Not Available Price: |
