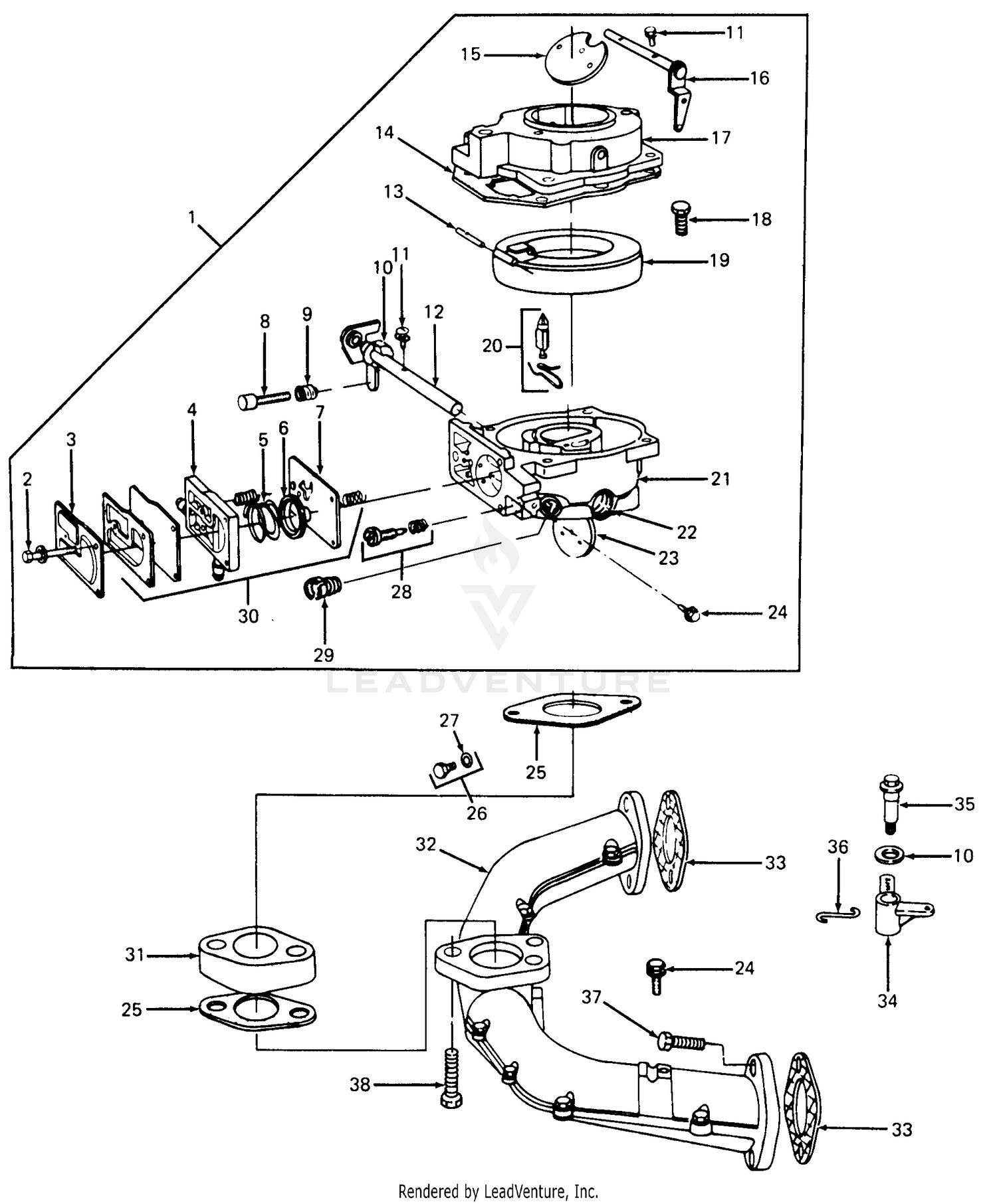

| Ref | Part Number | Description |
|---|
| 1 |
BS-693480 |
CARBURETOR Not Available This part replaces BS-397245. Price: |
| 2 |
BS-93829 |
Screw, Diaphragm Cover Price: Call Us |
| 3 |
BS-222615 |
COVER Not Available Price: |
| 4 |
BS-280197 |
BODY, PUMP Not Available Price: |
| 5 |
BS-261395 |
Spring, Pump Price: Call Us |
| 6 |
BS-690766 |
SPRING CAP Not Available This part replaces BS-221377. Price: |
| 7 |
BS-270988 |
Diaphragm Price: Call Us |
| 8 |
BS-91920 |
Screw, Machine Fill Hd 8-32 X 5/8 Price: Call Us |
| 9 |
BS-26157 |
FRICTION SPRING Not Available Price: |
| 10 |
BS-271013 |
Washer, Throttle Shaft Price: Call Us |
| 11 |
BS-691437 |
SCREW Not Available This part replaces BS-93499. Price: |
| 12 |
BS-392672 |
Shaft & Lever Throttle Price: Call Us |
| 13 |
BS-230896 |
FLOAT PIN Not Available Price: |
| 14 |
BS-271607 |
GASKET, CARBURETOR BODY Not Available Price: |
| 15 |
BS-223534 |
Valve, Choke Price: Call Us |
| 16 |
BS-392673 |
SHAFT & LEVER, CHOKE Not Available Price: |
| 18 |
BS-94152 |
SCREW Not Available Price: |
| 19 |
BS-692265 |
CARBURETOR FLOAT This part replaces BS-298514. Price: $12.29 |
| 20 |
BS-394681 |
VALVE Not Available Price: |
| 22 |
BS-231209 |
Bushing, Throttle Shaft Price: Call Us |
| 23 |
BS-221939 |
Valve, Throttle Price: Call Us |
| 24 |
BS-93897 |
SCREW Not Available Price: |
| 25 |
BS-692278 |
INTAKE GASKET Not Available Price: |
| 27 |
3220-6 |
NUT-JAM Price: $1.25 |
| 27 |
BS-280474 |
O-RING Not Available Price: |
| 28 |
66-9770 |
SEAL Price: $20.05 |
| 28 |
BS-292681 |
VALVE Not Available Price: |
| 29 |
66-9780 |
BUSHING Price: $11.69 |
| 29 |
BS-231338 |
JET, NEEDLE VALVE Not Available Price: |
| 30 |
BS-393397 |
KIT Not Available Price: |
| 31 |
BS-280319 |
SPACER, CARBURETOR Not Available Price: |
| 32 |
BS-212965 |
INTAKE MANIFOLD Not Available Price: |
| 33 |
BS-692219 |
INTAKE GASKET Not Available This part replaces BS-270884. Price: |
| 34 |
BS-280320 |
BELL CRANK Not Available Price: |
| 35 |
BS-93971 |
Screw, Hex Hd Price: Call Us |
| 36 |
93-3609 |
BOLT-SPECIAL Price: $23.98 |
| 36 |
BS-261587 |
BELL CRANK Not Available Price: |
| 37 |
66-9860 |
UPPER COVER AND JACKET ASM Price: $222.25 |
| 37 |
BS-93208 |
SCREW Not Available Price: |
| 38 |
66-9870 |
PLATE-RETAINING Price: $9.64 |
| 38 |
BS-93970 |
Screw, Hex Head, Carburetor to Manifold Price: Call Us |
| 39 |
66-9880 |
WASHER-PLATE, RETAINING Price: $0.98 |
| 40 |
66-9890 |
RING-RETAINING Price: $4.93 |
| 41 |
66-9900 |
SHAFT-INPUT Price: $170.42 |
| 501452702 |
501452702 |
NUT Price: $3.99 |
| 501454101 |
501454101 |
PAWL Price: $5.99 |
| 501454301 |
501454301 |
BOLT Price: $4.99 |
| 501623301 |
501623301 |
GUIDE BAR LOCATING PIN Price: $3.99 |
| 501819201 |
501819201 |
SCREW Price: $8.99 |
| 503184901 |
503184901 |
SPRING Price: $3.99 |
| 503200216 |
503200216 |
SCREW Price: $3.99 |
| 503200225 |
503200225 |
SCREW Price: $2.99 |
| 503200240 |
503200240 |
SCREW Price: $3.99 |
| 503230016 |
503230016 |
WASHER 5.1X8.5 Price: $3.99 |
| 503723101 |
503723101 |
BUSHING Price: $4.99 |
| 503789201 |
503789201 |
PINION Price: $5.99 |
| 503789202 |
503789202 |
PINION Price: $7.99 |
| 503789203 |
503789203 |
OIL PUMP PINION Price: $6.99 |
| 503792204 |
503792206 |
CRANKCASE This part replaces 503792204. Price: $69.99 |
| 503808302 |
503808303 |
PUMP PISTON This part replaces 503808302. Price: $17.99 |
| 503863801 |
544339901 |
CHAIN GUIDE PLATE This part replaces 503863801. Price: $14.99 |
| 503978102 |
503978102 |
WASHER Price: $2.99 |
| 503978201 |
503978201 |
SPRING Price: $3.99 |
| 503986201 |
503986201 |
GASKET Price: $3.99 |
| 503989402 |
503989402 |
KIT Price: $5.99 |
| 537046101 |
537046101 |
NIPPLE Price: $14.99 |
| 537056801 |
537056801 |
SCREW Price: $3.99 |
| 537106501 |
537106501 |
CHAIN TENSIONER KIT Price: $9.99 |
