| Ref | Part Number | Description |
|---|
| 1 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 1 |
05901711 |
BLT,HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 1 |
43-6840 |
HOUSING-LOWER Price: $1,467.48 |
| 2 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Black Price: Call Us |
| 2 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 2 |
3219-2 |
NUT-HEX Price: $0.37 |
| 3 |
03938251 |
BRACKET, MOUNTING Price: $53.20 |
| 3 |
04020-09 |
Hex Locknut, Elastic Stop, 3/8-16 Price: Call Us |
| 3 |
3255-8 |
WASHER-LOCK Price: $0.31 |

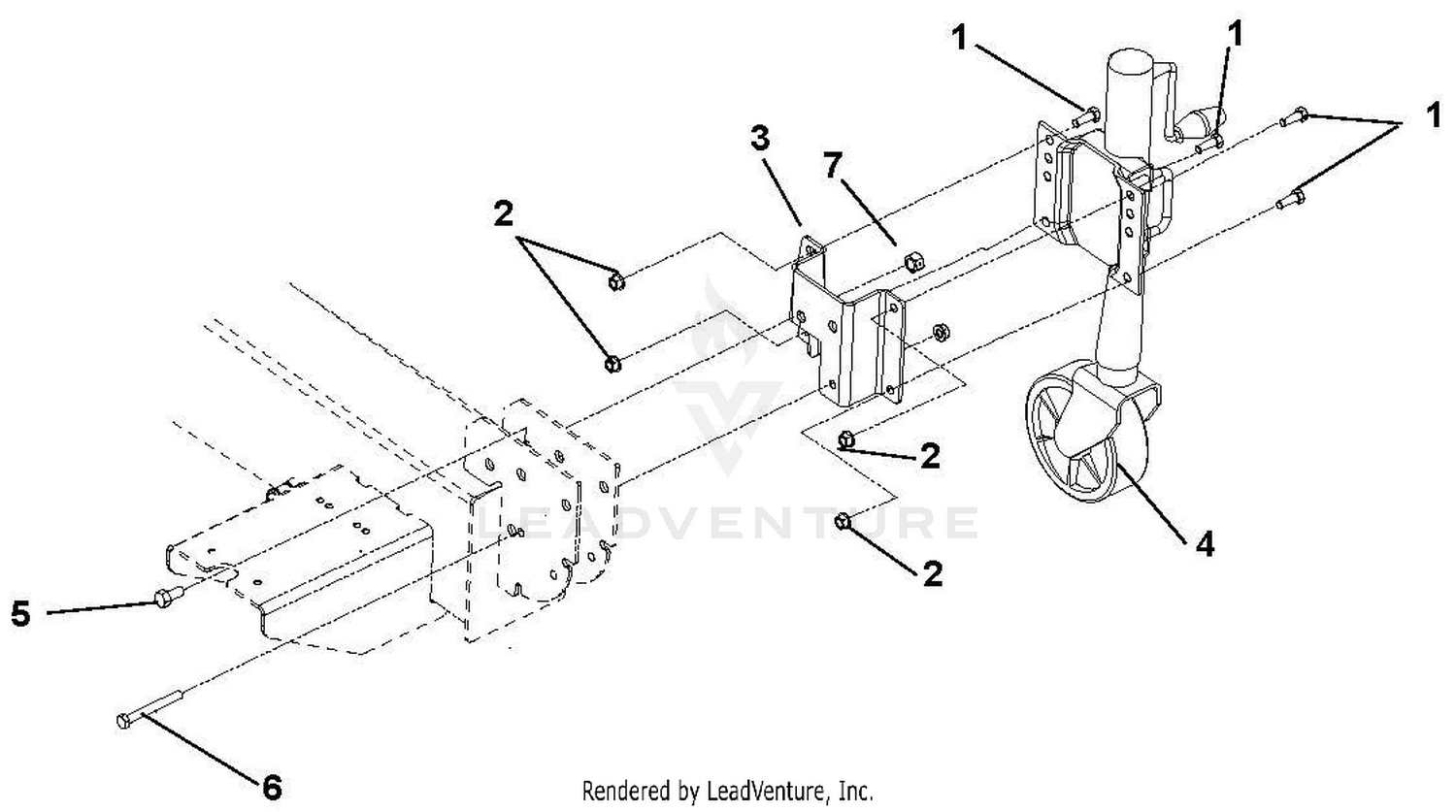

| 4 |
03938300 |
STAND, JACK-W/WHEEL Price: $109.95 |
| 4 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
48926 |
Hub, Tapered 1-1/8" Bore Price: Call Us |
| 5 |
05901715 |
BLT, HEX .50-13X1.00 G5 ZCC This part replaces 05947100. Price: $2.45 |
| 5 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 5 |
424615 |
Bracket, Belt Guide Price: Call Us |
| 6 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 6 |
05901817 |
BLT, HEX .38-16X3.25 G5 ZCC This part replaces 05961100. Price: $3.95 |
| 6 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 7 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 7 |
424367 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 8 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 9 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 9 |
483210 |
Pulley, Idler 5" Dia. Price: Call Us |
| 10 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 11 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 11 |
483215 |
Idler Pulley, Belt Clutch Price: Call Us |
| 12 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 13 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 14 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 14 |
92-1773 |
SCREW-HHF This part replaces 324-23. Price: $3.05 |
| 15 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 15 |
12-5450 |
SCREW Price: $7.99 |
| 16 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 16 |
43681 |
Pivot, Idler - Short Price: Call Us |
| 17 |
04001-62 |
Capscrew, Hex Head 3/8-16 x 3.25" Price: Call Us |
| 17 |
86-7230 |
GEAR-INPUT, TRANSMISSION This part replaces 21-8150. Price: $610.12 |
| 18 |
43-4710 |
Plunger Price: Call Us |
| 18 |
484020 |
Spring, Cutter Deck Price: Call Us |
| 19 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 19 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 20 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 20 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 21 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 21 |
45944 |
Shaft Weldment, Guide Roller Price: Call Us |
| 22 |
43-6540 |
DISCONTINUED Price: Call Us |
| 22 |
483997 |
Guide Roller Price: Call Us |
| 23 |
3210-7 |
SCREW-HH Price: $0.61 |
| 23 |
463289 |
Pusharm Assy, LH Price: Call Us |
| 24 |
254-90 |
BEARING-CUP Price: $11.29 |
| 24 |
48114-08 |
Grease Fitting, 90 Degree Price: Call Us |
| 25 |
04020-16 |
Nut, Hex Head 5/8-18 UNF Price: Call Us |
| 25 |
254-91 |
CONE-BEARING Price: $18.65 |
| 26 |
43-6550 |
RING-SNAP Price: $0.94 |
| 26 |
48763 |
Rod End, 5/8" Male RH Thread Price: Call Us |
| 27 |
04001-79 |
BOLT, HEX HEAD 5/8-11 X 4-1/2" Price: Call Us |
| 27 |
21-7850 |
PLUG-CUP Price: $23.35 |
| 28 |
04021-13 |
HEX LOCKNUT, ELASTIC STOP, 5/8-11 Price: Call Us |
| 28 |
46-2210 |
SHIM-BEARING, FRONT Price: $6.91 |
| 29 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 29 |
451724 |
Shaft Weldment, Pusharm Mounting Price: Call Us |
| 30 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 30 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 31 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 31 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 32 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 32 |
485528 |
Lever, Deck Level Price: Call Us |
| 33 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 33 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 34 |
04003-42 |
Bolt, Carriage 7/16-14 x 2-1/4" Price: Call Us |
| 34 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 35 |
04021-11 |
HEX LOCKNUT, ELASTIC STOP, 7/16-14 Price: Call Us |
| 35 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 36 |
04107-05 |
Bolt, Hex Head 3/8-16 x 2-1/2" Soecial Lock Price: Call Us |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 37 |
483176 |
Pad, Deck Wear Price: Call Us |
| 38 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 39 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V) Price: Call Us |
| 39 |
72-9420 |
VENT This part replaces 21-8230. Price: $6.85 |
| 40 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 41 |
461663 |
Cutter Spindle Assembly Price: Call Us |
| 42 |
43589 |
Spindle Shaft, Tapered Brng Price: Call Us |
| 43 |
481024 |
SEAL, 2.00 O.D. X 1.50 BORE Price: Call Us |
| 44 |
481022 |
Tapered Bearing Set (Two Bearings W/Race) Price: Call Us |
| 45 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 46 |
48677 |
RELIEF FITTING, TAPERED BEARING SPINDLE Price: Call Us |
| 47 |
43644 |
Housing, Spindle Price: Call Us |
| 48 |
43312 |
Spacer, Outside, Cutter Spindle Price: Call Us |
| 49 |
43296 |
SLEEVE, CUTTER SPINDLE Price: Call Us |
| 50 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 51 |
43297 |
SPINDLE BUSHING, BOTTOM Price: Call Us |
| 52 |
481035 |
Nut , Spec ial 1 -1/ 1 6 - 1 8 Price: Call Us |
| 53 |
04063-08 |
Key, 1/4 x 1/4 x 2.0" Price: Call Us |
| 54 |
04001-176 |
Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8 Price: Call Us |
| 55 |
43590 |
Spacer, Spindle Bottom Price: Call Us |
| 57 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 58 |
04001-41 |
BOLT, HEX HEAD, 5/8-11 X 9-1/2 GR.5 Price: Call Us |
| 60 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 61 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 64 |
48100-15 |
Bushing, .376" I.D. Oilite Price: Call Us |
| 65 |
422478 |
Bracket, Anti-Scalp Wheel Price: Call Us |
| 66 |
04003-26 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 67 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 68 |
04017-27 |
Capscrew, 3/8-16 x 1.0" Serrated Flange Hex Hd Price: Call Us |
| 69 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 70 |
04021-22 |
Lock Nut, 5/16-18 Elastic Stop Grade 8 Price: Call Us |
| 71 |
04001-47 |
Bolt, 3/8-16 x 5.00" Hex Head Price: Call Us |
| 72 |
04001-62 |
Capscrew, Hex Head 3/8-16 x 3.25" Price: Call Us |
| 73 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25" x .1875 Price: Call Us |
| 74 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 75 |
483378 |
Spring, Discharge Chute Price: Call Us |
| 76 |
04001-154 |
Bolt, 5/16-18 x 4-3/4" Hex Head Price: Call Us |
| 78 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 82 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 463290 |
Pusharm |
Assy, RH Price: Call Us 463290 |
