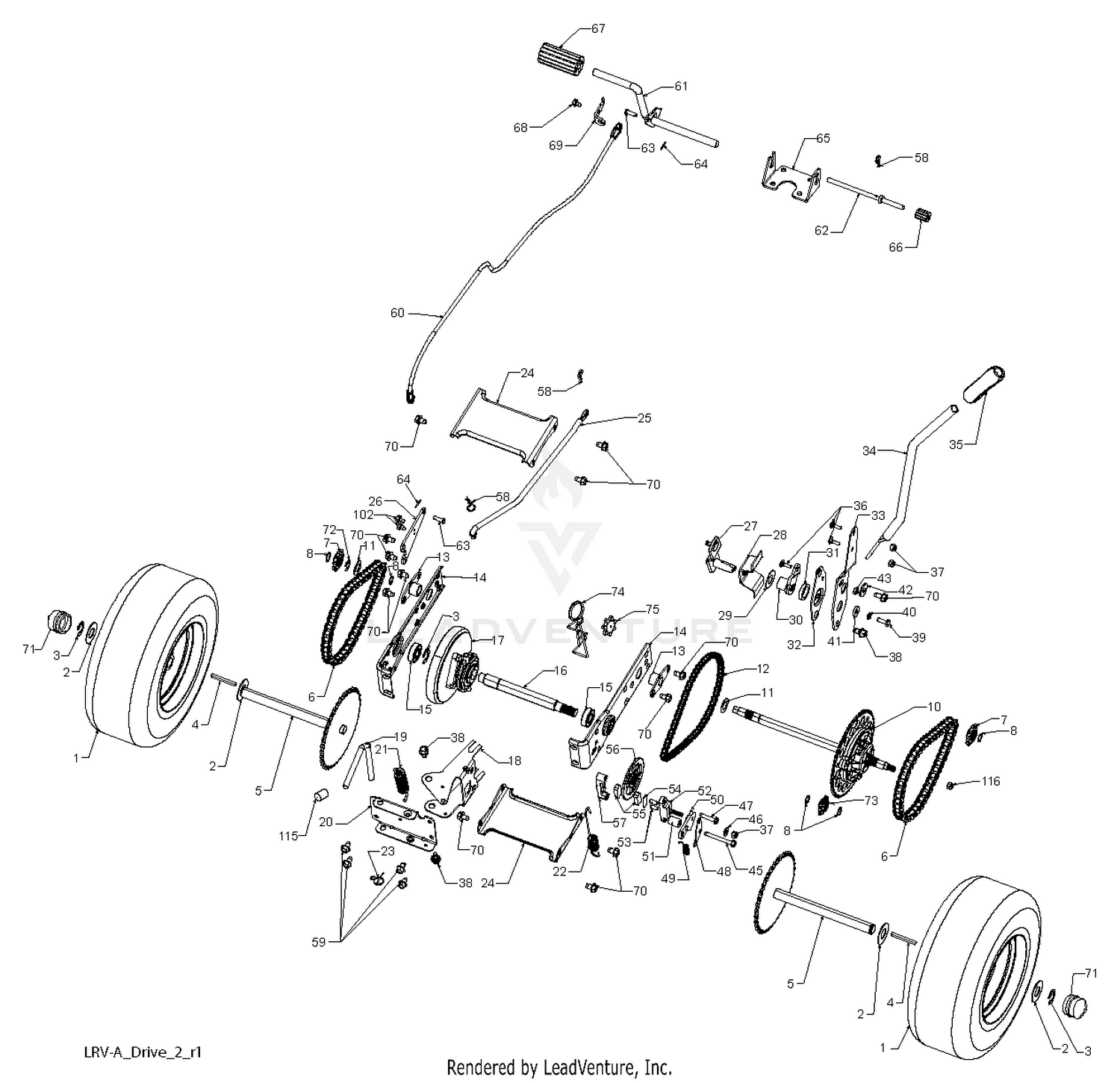

| Ref | Part Number | Description |
|---|
| 1 |
3-8394 |
DISCONTINUED Price: Call Us |
| 2 |
3-7138 |
DISCONTINUED Price: Call Us |
| 2 |
532121748 |
WASHER Price: $1.99 |
| 3 |
3296-45 |
NUT-HEX Price: $3.79 |
| 3 |
812000001 |
E-RING LT Price: $2.99 |
| 4 |
325-3 |
SCREW-HH Price: $1.49 |
| 4 |
532123583 |
SQUARE KEY Price: $2.99 |
| 5 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 5 |
532427939 |
WELDMENT.AXLE.DRIVEN Price: $34.99 |
| 6 |
322-10 |
SCREW-HH Price: $0.70 |
| 6 |
532428069 |
CHAIN.DRIVE Price: $12.99 |
| 7 |
20-4890 |
DISCONTINUED Price: Call Us |
| 7 |
532427873 |
SPROCKET.9.TOOTH.SPLINED Price: $5.99 |
| 8 |
3210-3 |
SCREW-HH Price: $5.29 |
| 8 |
812100009 |
SNAP RING Price: $2.99 |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
4-2320 |
DISCONTINUED Price: Call Us |
| 10 |
532428876 |
DIFFERENTIAL ASM LRV Price: $64.99 |
| 11 |
256-148 |
FLANGE BUSHING Price: $14.60 |
| 12 |
117127 |
TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL This part replaces 231-39. Price: $107.13 |
| 12 |
532430645 |
CHAIN, PRIMARY DRIVE Price: $12.99 |
| 13 |
3-2889 |
DISCONTINUED Price: Call Us |
| 13 |
532430845 |
BUSHING.FLANGE.5/8 Price: $5.99 |
| 14 |
532438568 |
BRACKET.CARRIER Price: $7.99 |
| 15 |
3-8014 |
AXLE SHAFT Price: $49.11 |
| 16 |
3-6514 |
THRUST WASHER Price: $1.74 |
| 16 |
532427926 |
SHAFT.INPUT.LRV Price: $27.99 |
| 17 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 17 |
532436144 |
TRANSAXLE.KIT.SERVICE This part replaces 532437281. Price: $399.99 |
| 18 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 18 |
532424759 |
ARM, SHIFT Price: $8.99 |
| 19 |
242-39 |
WHEEL ASM Price: $244.32 |
| 19 |
532430870 |
ROD.BYPASS.LRV Price: $11.99 |
| 20 |
242-33 |
DISCONTINUED Price: Call Us |
| 20 |
532427997 |
BRACE CARRIER REAR Price: $5.99 |
| 21 |
323-6 |
SCREW-HH Price: $0.66 |
| 21 |
532428077 |
SPRING, CARRIER Price: $4.99 |
| 22 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 22 |
532428076 |
SPRING, BRAKE Price: $2.99 |
| 23 |
3-6506 |
DISCONTINUED Price: Call Us |
| 23 |
532431374 |
SPRING, BYPASS Price: $2.99 |
| 24 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 24 |
532427995 |
BRACE CARRIER BOX Price: $6.99 |
| 25 |
5-0460 |
STRG SWAGED CABLE ASM Price: $96.86 |
| 25 |
532429303 |
VALVE.COVER.LCT.414CC. Price: $19.99 |
| 26 |
3-8011 |
DISCONTINUED Price: Call Us |
| 26 |
532429816 |
ARM. CLUTCH.LRV Price: $3.99 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
532429053 |
WELDMENT SHIFT LEVER Price: $12.99 |
| 28 |
242-32 |
LUG NUT Price: $4.77 |
| 28 |
532439816 |
WELDMENT.SUPPORT.FRIC.DRIVE.RH This part replaces 532428302. Price: $44.99 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 29 |
532174840 |
WASHER NYLON Price: $3.99 |
| 30 |
32146-1 |
DISCONTINUED Price: Call Us |
| 30 |
532444304 |
HUB.SHIFT Price: $4.99 |
| 31 |
5-5560 |
DISCONTINUED Price: Call Us |
| 31 |
532429055 |
SPACER.NYLON. Price: $2.99 |
| 32 |
5-1257 |
DISCONTINUED Price: Call Us |
| 32 |
532428464 |
MNTG BRKT. SHIFT ARM Price: $2.99 |
| 33 |
5-2106 |
PVT CSTR/SFT WA*RO Price: $291.44 |
| 33 |
532428461 |
BRACKET, SHIFTER FLEX Price: $11.99 |
| 34 |
32128-13 |
NUT-HF Price: $1.79 |
| 34 |
532428462 |
TUBE SHIFT ARM Price: $11.99 |
| 35 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 35 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK Price: $2.99 |
| 36 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 36 |
582735501 |
BOLT This part replaces 872110406. Price: $2.99 |
| 37 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 37 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 38 |
3-6493 |
DISCONTINUED Price: Call Us |
| 38 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $3.99 |
| 39 |
3217-6 |
NUT-HEX Price: $1.19 |
| 39 |
874780412 |
Bolt, Hex Head, Fin. 1/4-20 x 3/4 Grade 5 (AYP part number) Price: $2.99 |
| 40 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 40 |
810040400 |
LOCKWASHER Price: $3.99 |
| 41 |
32121-48 |
PIN-SPRING Price: $0.61 |
| 41 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 42 |
532166002 |
WASHER.SRRTD.5/16 Price: $3.99 |
| 43 |
20-4900 |
DISCONTINUED Price: Call Us |
| 43 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 44 |
3-7993 |
DISCONTINUE Price: Call Us |
| 45 |
5-5540 |
DISCONTINUED Price: Call Us |
| 45 |
817490436 |
SCREW.HXWH.THDRL.1/4-20X2.25 Price: $2.99 |
| 46 |
325-9 |
SCREW-HH Price: $1.87 |
| 46 |
819091016 |
WASHER Price: $2.99 |
| 47 |
322-13 |
SCREW-HH Price: $2.73 |
| 47 |
583608401 |
SCREW YTV This part replaces 817490420. Price: $1.99 |
| 48 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 48 |
532430249 |
PLATE.ANTI-ROTATION.BRAKE Price: $2.99 |
| 49 |
3290-239 |
DISCONTINUED Price: Call Us |
| 49 |
532430245 |
SPRING, BRAKE RETURN Price: $2.99 |
| 50 |
3-6501 |
DISCONTINUED Price: Call Us |
| 50 |
532428021 |
ARM.BRAKE Price: $4.99 |
| 51 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 51 |
532430247 |
SPACER.RETURN.BRAKE.LRV Price: $2.99 |
| 52 |
532428078 |
CALIPER.BRAKE.ASM Price: $6.99 |
| 53 |
877010810 |
PIN.DOWEL Price: $2.99 |
| 54 |
532428019 |
PLATE, BRAKE PAD Price: $2.99 |
| 55 |
532428017 |
PUCK BRAKE Price: $2.99 |
| 56 |
532435253 |
ROTOR.BRAKE Price: $5.99 |
| 57 |
532428016 |
CAP, BRAKE CALIPER Price: $3.99 |
| 59 |
817490508 |
SCREW LT Price: $3.99 |
| 60 |
532440855 |
CABLE.BRAKE. Price: $49.99 |
| 61 |
532427945 |
SHAFT.ASM.PEDAL.LRV Price: $7.99 |
| 62 |
532429678 |
ROD.BRAKE.PARK.LRV Price: $5.99 |
| 63 |
877100812 |
PIN.CLEVIS Price: $2.99 |
| 64 |
532421076 |
PIN.COTTER.5/64X3/4 Price: $2.99 |
| 65 |
532429325 |
BRACKET.SUPPORT.BRAKE.LRV Price: $5.99 |
| 66 |
532429694 |
COVER.PEDAL.BRAKE.PARKING.LRV Price: $3.99 |
| 67 |
532429693 |
COVER.PEDAL.BRAKE.LRV Price: $4.99 |
| 68 |
817490406 |
SCREW.1/4-20X3/8 Price: $2.99 |
| 69 |
532428070 |
BRAKE.MOUNT.CABLE.LRV Price: $2.99 |
| 70 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 71 |
532436499 |
CAP.HUB.AXLE.LRVA/B Price: $3.99 |
| 72 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 73 |
532429519 |
SPROCKET.11 TOOTH.SPLINED Price: $4.99 |
| 74 |
532437841 |
TENSION.LRV.CHAIN Price: $5.99 |
| 75 |
532433495 |
SPROCKET.IDLER.7TOOTH.LRV Price: $2.99 |
| 102 |
532086777 |
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D (AYP part number) Price: $1.99 |
| 115 |
532140062 |
CAP.PLUNGER.BLACK Price: $3.99 |
| 532436144 |
TRANSAXLE.KIT.SERVICE |
Price: $399.99 532436144 |
