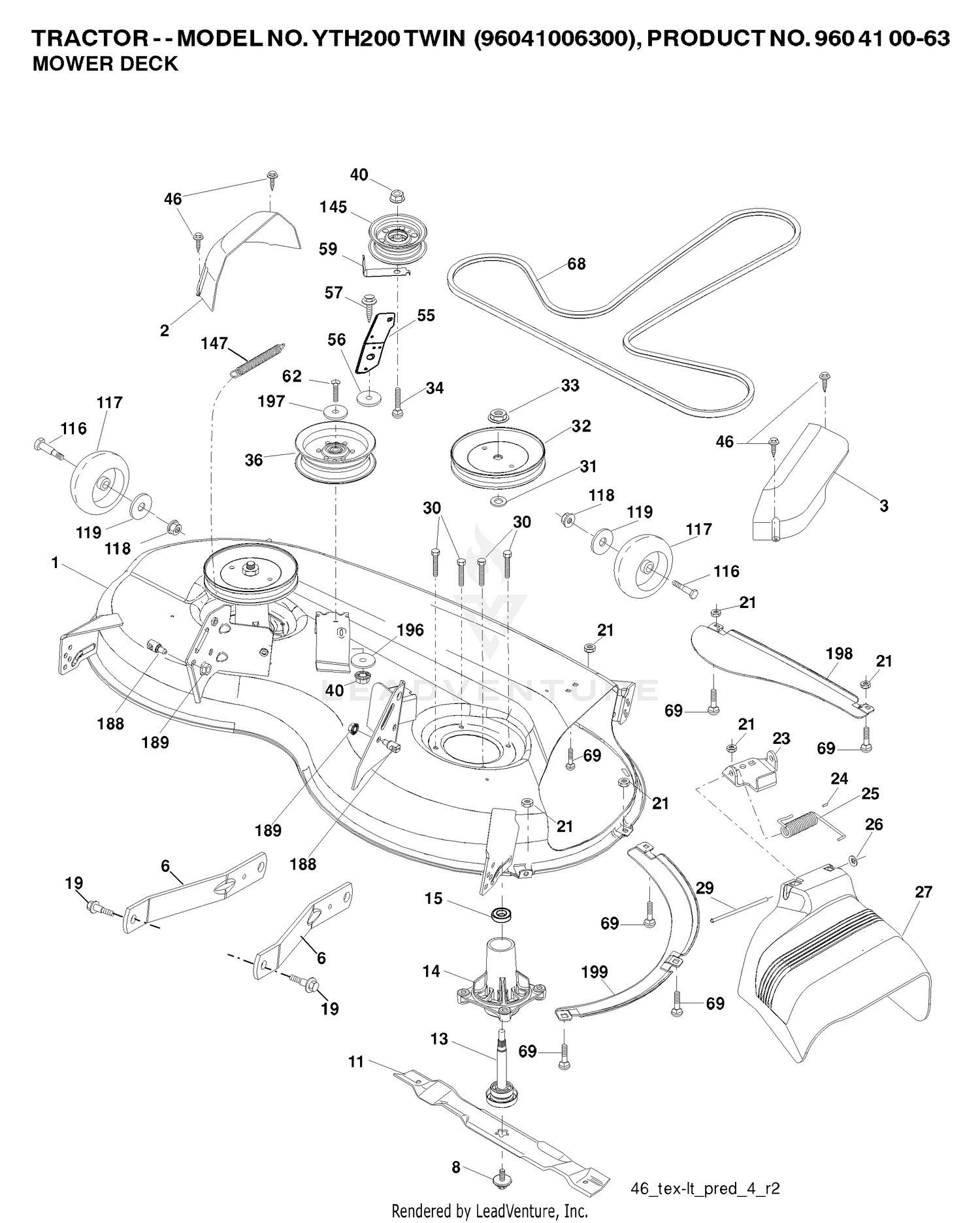

| Ref | Part Number | Description |
|---|
| 1 |
130-5655-03 |
BRACKET-MOUNT Price: Call Us |
| 1 |
547745901 |
KIT.SVC.DECK.WELD.46.TEX_428 This part replaces 532405050. Price: $449.99 |
| 2 |
130-5659 |
SEAL-FOAM Price: $10.66 |
| 2 |
532405507 |
COVER.MANDREL.LH.46" Price: $19.99 |
| 3 |
130-5808 |
SEAL-FOAM, FRONT Price: $2.89 |
| 3 |
532405506 |
COVER.MANDREL.RH.46" Price: $19.99 |
| 4 |
130-0602 |
SEAL-END Price: $3.33 |
| 5 |
130-5653 |
GASKET-MOUNT, LH BRACKET Price: Call Us |
| 6 |
130-5654 |
GASKET-MOUNT, RH BRACKET Price: Call Us |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $49.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $12.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 68 |
584453101 |
V-BELT.DRIVE.MWR.MECHANICL.46" This part replaces 532405143. Price: $49.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 129 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 145 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 147 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 196 |
596135501 |
Washers This part replaces 532413524. Price: $4.99 |
| 198 |
531170601 |
SERVICE KIT BAFFLE CENT This part replaces 532403149. Price: $9.99 |
| 199 |
531170701 |
SERVICE KIT BAFFLE FRONT This part replaces 532403150. Price: $11.99 |
| 240 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
