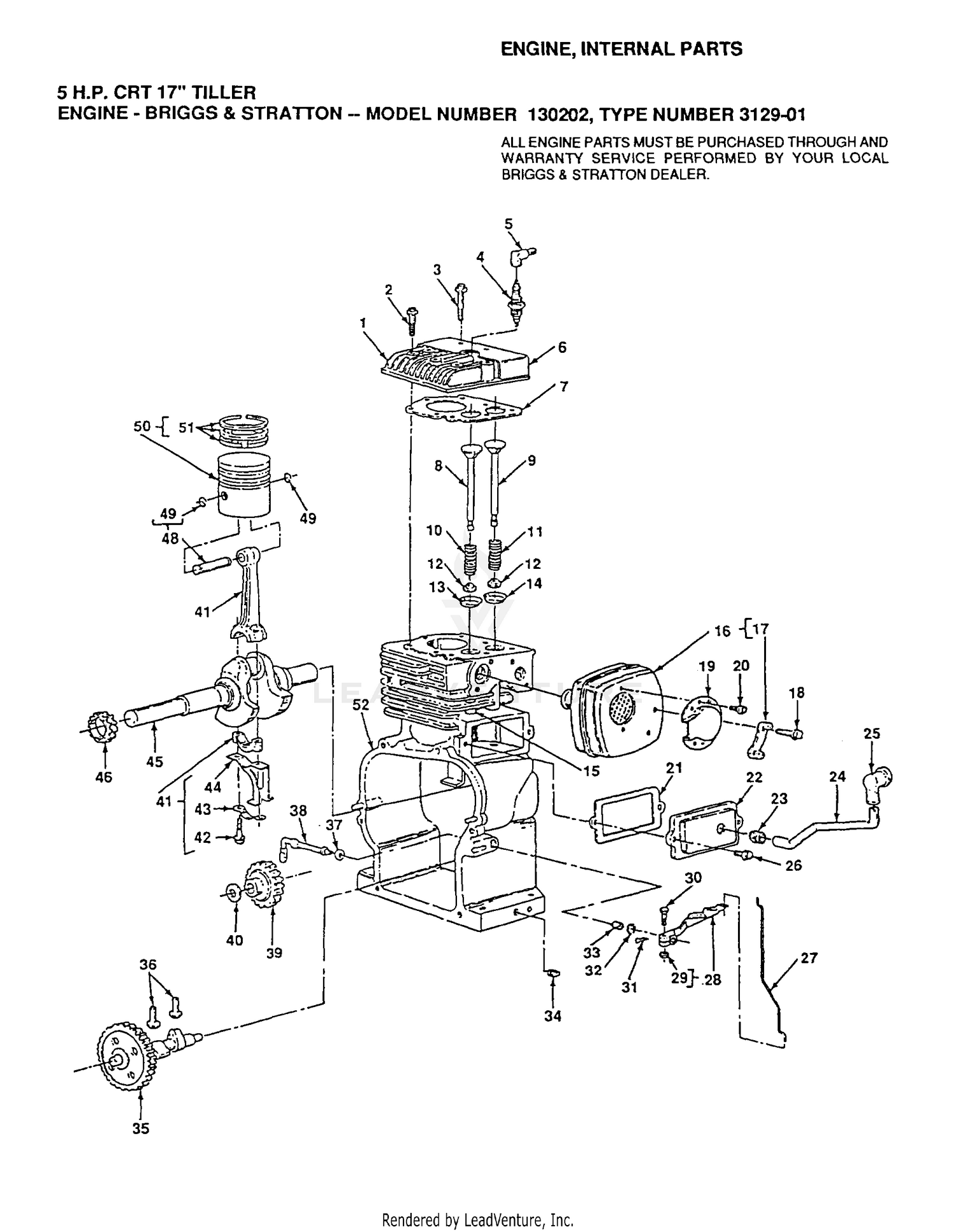

| Ref | Part Number | Description |
|---|
| 1 |
211542 |
HEAD, CYLINDER Price: Call Us |
| 1 |
72-3540 |
VALVE-RELIEF Price: $413.26 |
| 2 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 2 |
94221 |
SCREW, CYLINDER HEAD 2-3/32" Price: Call Us |
| 3 |
72-3550 |
TUBE Price: $79.27 |
| 3 |
93369 |
SCREW, CYLINDER HEAD 2-15/32" Price: Call Us |
| 4 |
115-4523 |
COUPLING-RUBBER This part replaces 44-2230. Price: $52.81 |
| 4 |
293918 |
PLUG, SPARK RESISTOR Price: Call Us |
| 5 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 5 |
66538 |
ELBOW, SPARK PLUG Price: Call Us |
| 6 |
221512 |
COVER, CYLINDER HEAD Price: Call Us |
| 6 |
71-4411 |
SPACER Price: $2.42 |
| 7 |
272157 |
GASKET, CYLINDER HEAD Price: Call Us |
| 7 |
322-8 |
SCREW-HH Price: $1.26 |
| 8 |
211119 |
VALVE, EXHAUST Price: Call Us |
| 8 |
71-4410 |
SPACER Price: $5.97 |
| 9 |
261044 |
VALVE, INTAKE Price: Call Us |
| 9 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 10 |
26478 |
SPRING, EXHAUST VALVE Price: Call Us |
| 10 |
322-10 |
SCREW-HH Price: $0.70 |
| 11 |
260552 |
SPRING, INTAKE VALVE Price: Call Us |
| 11 |
321-2 |
SCREW-HH Price: $2.79 |
| 12 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 12 |
93312 |
RETAINER, VALVE SPRING Price: Call Us |
| 13 |
211172 |
SEAT, INTAKE VALVE, STANDARD Price: Call Us |
| 13 |
54-9290 |
BRACKET-MOUNTING Price: $16.99 |
| 14 |
211787 |
SEAT, INTAKE VALVE, STANDARD Price: Call Us |
| 14 |
340-143 |
ELBOW-SWIVEL, 90 DEG Price: $58.91 |
| 15 |
262001 |
GUIDE, EXHAUST VALVE Price: Call Us |
| 15 |
68-8660 |
FITTING-HYD, 90 DEG Price: $181.88 |
| 16 |
321-4 |
SCREW-HH Price: $0.99 |
| 16 |
393615 |
MUFFLER, EXHAUST Price: Call Us |
| 17 |
222263 |
LOCK, SCREW Price: Call Us |
| 17 |
68-8990 |
HEAD-FILTER Price: $153.83 |
| 18 |
54-9300-03 |
COVER-SHAFT, PUMP Price: $31.70 |
| 18 |
93935 |
SCREW, HEX HEAD Price: Call Us |
| 19 |
105-0033-03 |
DRIVE SHAFT ASM Price: $63.37 |
| 19 |
393757 |
DEFLECTOR, EXHAUST, SIDE OUTLET Price: Call Us |
| 20 |
93705 |
SUB= 69485 Price: Call Us |
| 21 |
23-9740 |
FILTER-OIL, HYDRAULIC Price: $13.14 |
| 21 |
27549 |
GASKET, VALVE COVER Price: Call Us |
| 22 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 22 |
294178 |
BREATHER, VALVE CHAMBER Price: Call Us |
| 23 |
66578 |
GROMMET, BREATHER TUBE Price: Call Us |
| 23 |
68-9650 |
HOSE-AXLE Price: $30.32 |
| 24 |
231526 |
TUBE, BREATHER Price: Call Us |
| 24 |
70-2620 |
FITTING-HYD, 90 DEG Price: $116.72 |
| 25 |
353-508 |
PLUG-HH Price: $7.96 |
| 25 |
67838 |
GROMMET, BREATHER TUBE Price: Call Us |
| 26 |
353-987 |
FITTING-ELBOW, 90 Price: $74.72 |
| 26 |
93394 |
SCREW, SEMS, BREATHER, MOUNTING Price: Call Us |
| 27 |
262280 |
LINK, GOVERNOR Price: Call Us |
| 27 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 28 |
323-7 |
SCREW-HH Price: $0.65 |
| 28 |
490374 |
LEVER ASSEMBLY, GOVERNOR Price: Call Us |
| 29 |
119-2880 |
TRANSMISSION ASM This part replaces 92-8947. Price: $4,321.31 |
| 29 |
231082 |
NUT, HEX Price: Call Us |
| 30 |
41-8760 |
GASKET Price: $5.99 |
| 30 |
92613 |
BOLT, GOVERNOR LEVER Price: Call Us |
| 31 |
86-7220 |
GEAR-PINION Price: $81.33 |
| 31 |
93306 |
COTTER, HAIR PIN Price: Call Us |
| 32 |
32120-72 |
RING-SNAP Price: $2.09 |
| 32 |
93307 |
RETAINER, E-RING Price: Call Us |
| 33 |
231079 |
BUSHING, GOVERNOR CRANK Price: Call Us |
| 33 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 34 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 34 |
93448 |
PLUG, PIPE, HEX SOCKET Price: Call Us |
| 35 |
212733 |
GEAR, CAM Price: Call Us |
| 35 |
340-99 |
FITTING-HYD, 90 DEG Price: $32.27 |
| 36 |
110-9695 |
HUB-PUMP This part replaces 33-4380. Price: $55.09 |
| 36 |
260642 |
TAPPET, VALVE Price: Call Us |
| 37 |
222450 |
WASHER, GOVERNOR LEVER Price: Call Us |
| 37 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 38 |
231077 |
CRANK, GOVERNOR Price: Call Us |
| 39 |
391737 |
GEAR, GOVERMOR Price: Call Us |
| 40 |
221551 |
WASHER THRUST Price: Call Us |
| 41 |
299430 |
ROD ASSEMBLY, CONNECTING Price: Call Us |
| 42 |
92296 |
LOCK, CONNECTING ROD SCREW Price: Call Us |
| 43 |
221876 |
LOCK, CONNECTING ROD SCREW Price: Call Us |
| 44 |
221890 |
DIPPER, CONNECTING ROD Price: Call Us |
| 45 |
397103 |
CRANKSHAFT Price: Call Us |
| 46 |
261696 |
GEAR, TIMING Price: Call Us |
| 48 |
298909 |
PIN ASSY, PISTON, STD Price: Call Us |
| 49 |
26026 |
LOCK, PISTON PIN Price: Call Us |
| 50 |
298904 |
PISTON ASSEMBLY, STANDARD Price: Call Us |
| 51 |
298982 |
RING SET, PISTON, STANDARD Price: Call Us |
| 52 |
395990 |
CYLINDER ASSEMBLY Price: Call Us |
| 89838 |
WRENCH |
SPARK PLUG Price: Call Us 89838 |
| 392193 |
SPARK |
ARRESTING MUFFLER ASSY Price: Call Us 392193 |
| 397145 |
GASKET |
SET Price: Call Us 397145 |
