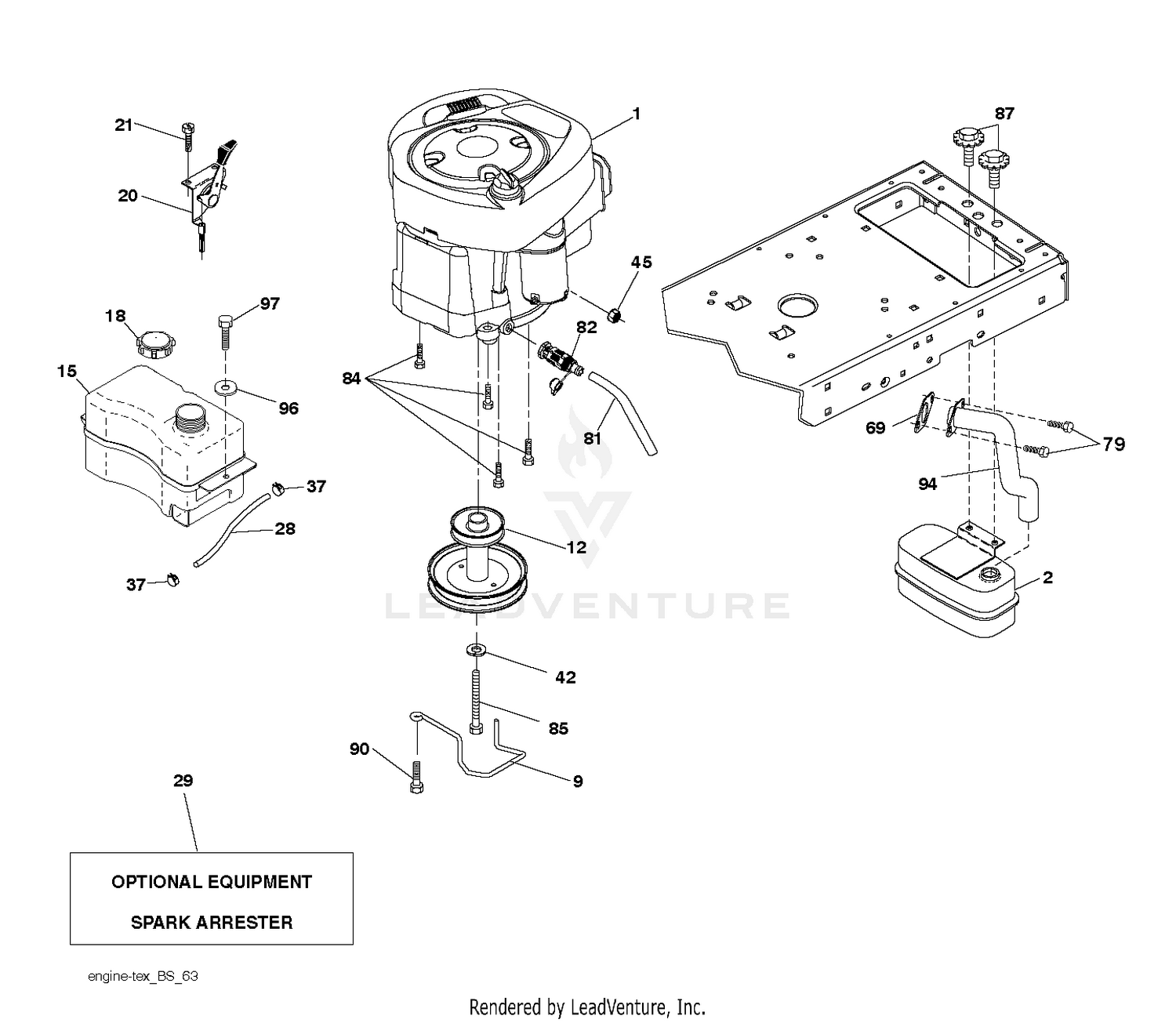

| Ref | Part Number | Description |
|---|
| 1 |
000000000 |
Price: Call Us |
| 1 |
39-8040-03 |
RH SPINDLE ASM This part replaces 21-1930. Price: $291.38 |
| 2 |
21-2000 |
TIE ROD-STEERING Price: $103.72 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $29.99 |
| 3 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 4 |
322-2 |
SCREW-HH Price: $0.69 |
| 5 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 6 |
23-1540 |
REAR AXLE PIN WA This part replaces 21-1910. Price: $80.56 |
| 7 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 8 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 9 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 Price: $7.99 |
| 10 |
21-1840 |
DISCONTINUED Price: Call Us |
| 11 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 12 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 12 |
586729001 |
PULLEY.ENGINE This part replaces 532401985. Price: $24.99 |
| 13 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 14 |
231-105 |
TIRE-RIBBED This part replaces 231-43. Price: $62.56 |
| 15 |
217-106 |
WHEEL-8 INCH Price: $141.58 |
| 15 |
581289901 |
FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532407545. Price: $54.99 |
| 16 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 17 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 18 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $14.99 |
| 20 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 20 |
583045801 |
CNTRL.TH/CK.PADDL.20_2.BLK.#37 This part replaces 532170545. Price: $24.99 |
| 21 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 22 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 23 |
21-2820 |
HUB Price: $269.34 |
| 24 |
253-129 |
SEAL Price: $21.73 |
| 25 |
39-8050-03 |
LH SPINDLE ASM This part replaces 21-1980. Price: $247.17 |
| 26 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 27 |
21-2020 |
DISCONTINUED Price: Call Us |
| 28 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 28 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 29 |
256-242 |
BUSHING Price: $3.32 |
| 29 |
532131780 |
Kit Spark Arrestor 1 25 Price: Call Us |
| 30 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 31 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 32 |
3220-5 |
NUT-JAM Price: $0.65 |
| 33 |
21-2100 |
DISCONTINUED Price: Call Us |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532165291. Price: $7.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
501606501 |
Speed Clip This part replaces 532173937. Price: $1.99 |
| 87 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 This part replaces 532405450. Price: $17.99 |
| 96 |
819091416 |
WASHER Price: $3.99 |
