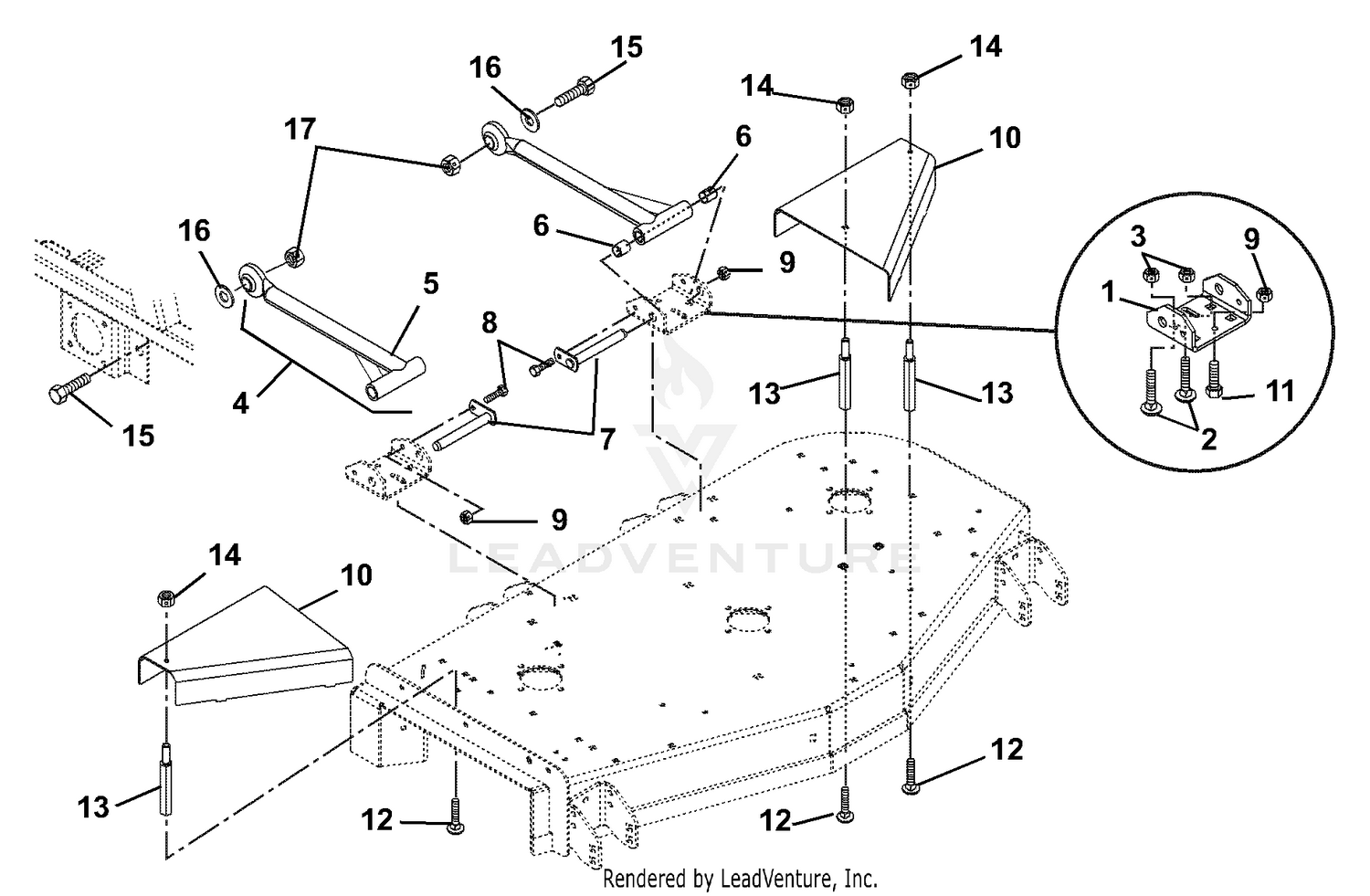

| Ref | Part Number | Description |
|---|
| 3 |
06519700 |
NUT-LK-CTR-JAM .50-13 YWZC(ND) Price: $2.45 |
| 5 |
09247951 |
WMT, MOWER MTG ARM - BLACK Price: $201.95 |
| 6 |
05435900 |
BRG, .750 X .875 X 1.000 Price: $5.95 |
| 7 |
09238900 |
WELDMENT, MOWER MTG. PIN Price: $55.45 |
| 8 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 9 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 11 |
06200312 |
BLT, RHSN .38-16X.750 G5 ZCC This part replaces 06223900. Price: $1.45 |
| 12 |
06200425 |
BTL,RHSN .313-18 X 0.75 G5 ZCC LT This part replaces 06200002. Price: $3.95 |
| 13 |
00271200 |
STANDOFF, 2.75 X 5/16-18 Price: $31.45 |
| 14 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 15 |
05969500 |
BLT-HEX .875-9X2.75 GR5 YWZC Price: $7.45 |
| 16 |
06401207 |
WSHR- FLT .890X1.500X.119 ZCC This part replaces 06444700. Price: $3.95 |
