| Ref | Part Number | Description |
|---|
| A |
530026225 |
Decal-"D" Handle Price: $3.33 |
| B |
530027429 |
Decal-Safety Label (Upper) Price: $3.33 |
| C |
530027404 |
Decal-Safety Label (Lower) Price: $3.33 |
| 1 |
104-4620 |
SEAT This part replaces 351-59. Price: $273.15 |
| 1 |
952701605 |

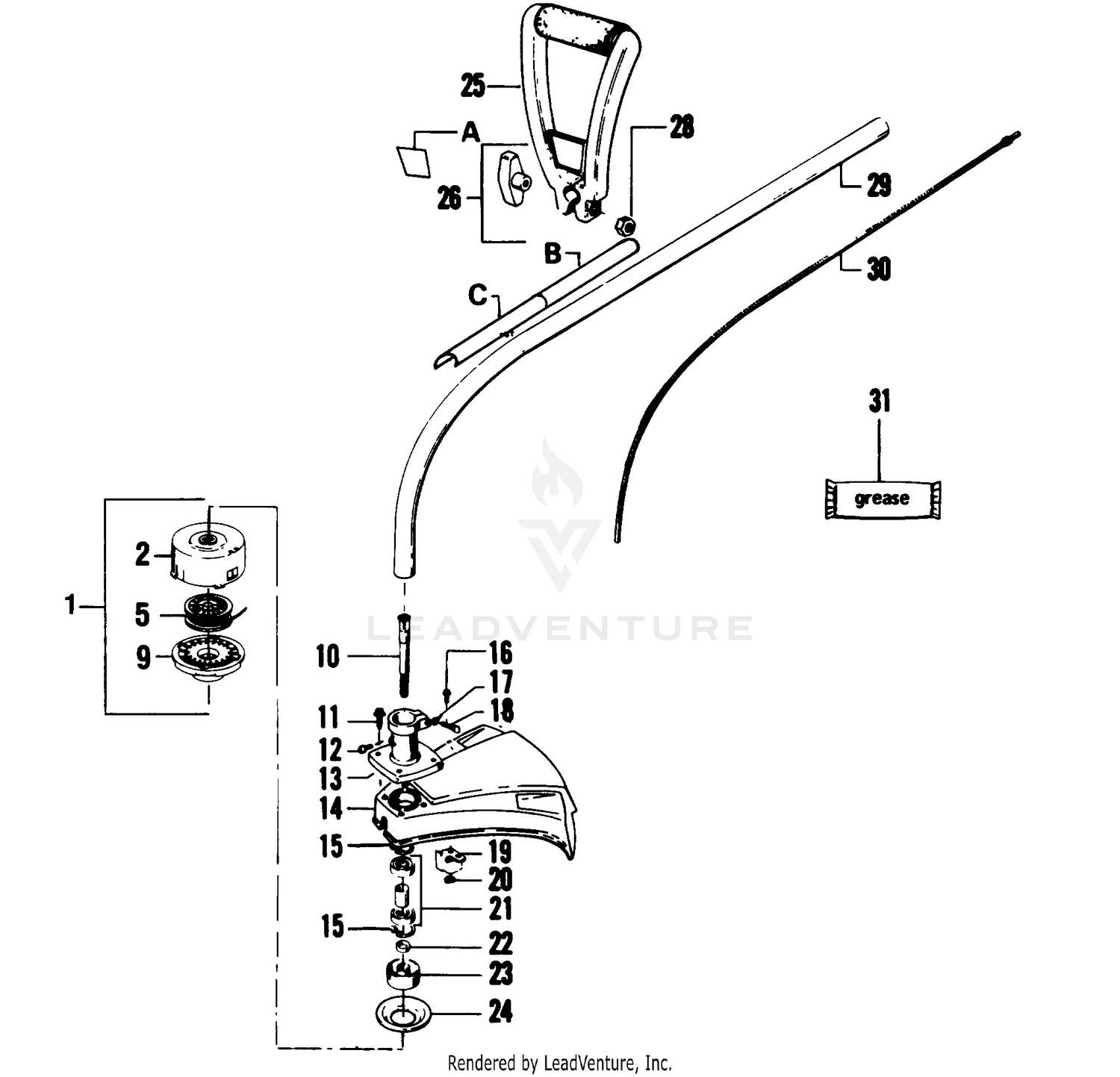

Cutting Head Assembly (Inc. 2, 5 & 9) Price: Call Us |
| 2 |
351-64 |
DISCONTINUED Price: Call Us |
| 2 |
530094592 |
Hub w/Line Saver Price: Call Us |
| 3 |
351-60 |
Backrest Price: Call Us |
| 4 |
351-65 |
DISCONTINUED Price: Call Us |
| 5 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 5 |
952701607 |
Spool w/Line Price: Call Us |
| 6 |
3217-6 |
NUT-HEX Price: $1.19 |
| 7 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 9 |
2412-4 |
CLAMP-R Price: $4.22 |
| 9 |
530094494 |
Cover Price: $4.99 |
| 10 |
23-1760 |
DISCONTINUE Price: Call Us |
| 10 |
530093846 |
Shaft-Arbor Price: Call Us |
| 11 |
530016107 |
Screw This part replaces 530092243. Price: $1.99 |
| 11 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 12 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 12 |
530015518 |
Screw-Self-Tapping-#10-16x1/4" Price: $1.99 |
| 13 |
33-2570 |
DISCONTINUED Price: Call Us |
| 13 |
530093214 |
Bearing Housing Ass'y. (Inc. 10, 15, 17, 18, 21, 22, & 23) Price: $3.33 |
| 14 |
23-1770 |
DISCONTINUED Price: Call Us |
| 14 |
530094595 |
Shield (Inc. #16, 19 & 20) Price: $3.33 |
| 15 |
23-1700 |
DISCONTINUED Price: Call Us |
| 15 |
530091783 |
Retainer-Bearing Price: $1.99 |
| 16 |
32103-2 |
NUT-WING Price: $0.68 |
| 16 |
530015037 |
Screw-Line Limiter-#10-24x5/8" Price: $1.99 |
| 17 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 17 |
530092227 |
Washer-#1/4-Int. Tooth Lock Price: $0.99 |
| 18 |
530625509 |
Screw-Pinch Clamp-#1/4-20x1" Price: $1.99 |
| 18 |
82-8970 |
DECAL-COOLANT, ENGINE This part replaces 26-7530. Price: $16.00 |
| 19 |
18-2660 |
DISCONTINUED Price: Call Us |
| 19 |
530094570 |
Line Limiter Price: $1.99 |
| 20 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 20 |
530403094 |
Nut This part replaces 530015217. Price: $1.99 |
| 21 |
23-2150 |
DISCONTINUED Price: Call Us |
| 21 |
530069086 |
Bearings and Spacer Kit Price: $22.99 |
| 22 |
530092216 |
Washer-Dust Cup Price: $1.99 |
| 22 |
66-6140 |
DECAL This part replaces 18-2180. Price: $25.48 |
| 23 |
27-3220 |
DECAL Price: $41.43 |
| 23 |
530092359 |
Dust Cup Price: $4.99 |
| 24 |
26-9890 |
UPPER HOSE Price: $51.37 |
| 24 |
530092218 |
WASHER Price: $4.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
530069496 |
Cushioned Assist Handle Kit, GTI 16 SUPER, GTI 17LE, GTI 16D & GTI 16 Type 3 This part replaces 530010618. Price: $14.99 |
| 26 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 26 |
530069347 |
HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 27 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 27 |
530092062 |
Washer-#1/4 Flat Price: $1.99 |
| 28 |
26-9900 |
LOWER HOSE Price: $59.90 |
| 28 |
530015197 |
Nut Price: $1.99 |
| 29 |
33-2580 |
DISCONTINUED Price: Call Us |
| 29 |
530093845 |
Drive Shaft Housing Price: $15.56 |
| 30 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 30 |
530093831 |
Flexible Drive Shaft Price: $29.99 |
| 31 |
32140-43 |
DISCONTINUED Price: Call Us |
| 31 |
952708514 |
LUBE, FLEX SHAFT NLA This part replaces 530030102. Price: Call Us |
| 32 |
304-46 |
DRAINCOCK Price: $7.55 |
| 33 |
32128-19 |
NUT-HF Price: $0.99 |
| 34 |
353-548 |
ELBOW Price: $16.04 |
| 35 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 36 |
52-4890 |
ROD-CONNECTING This part replaces 351-61. Price: $33.91 |
| 37 |
51-0790 |
ADJUSTER-SEAT, LH This part replaces 351-63. Price: $127.92 |
| 38 |
351-62 |
DISCONTINUED Price: Call Us |
| 920092218 |
SCREW |
Price: $2.99 920092218 |
