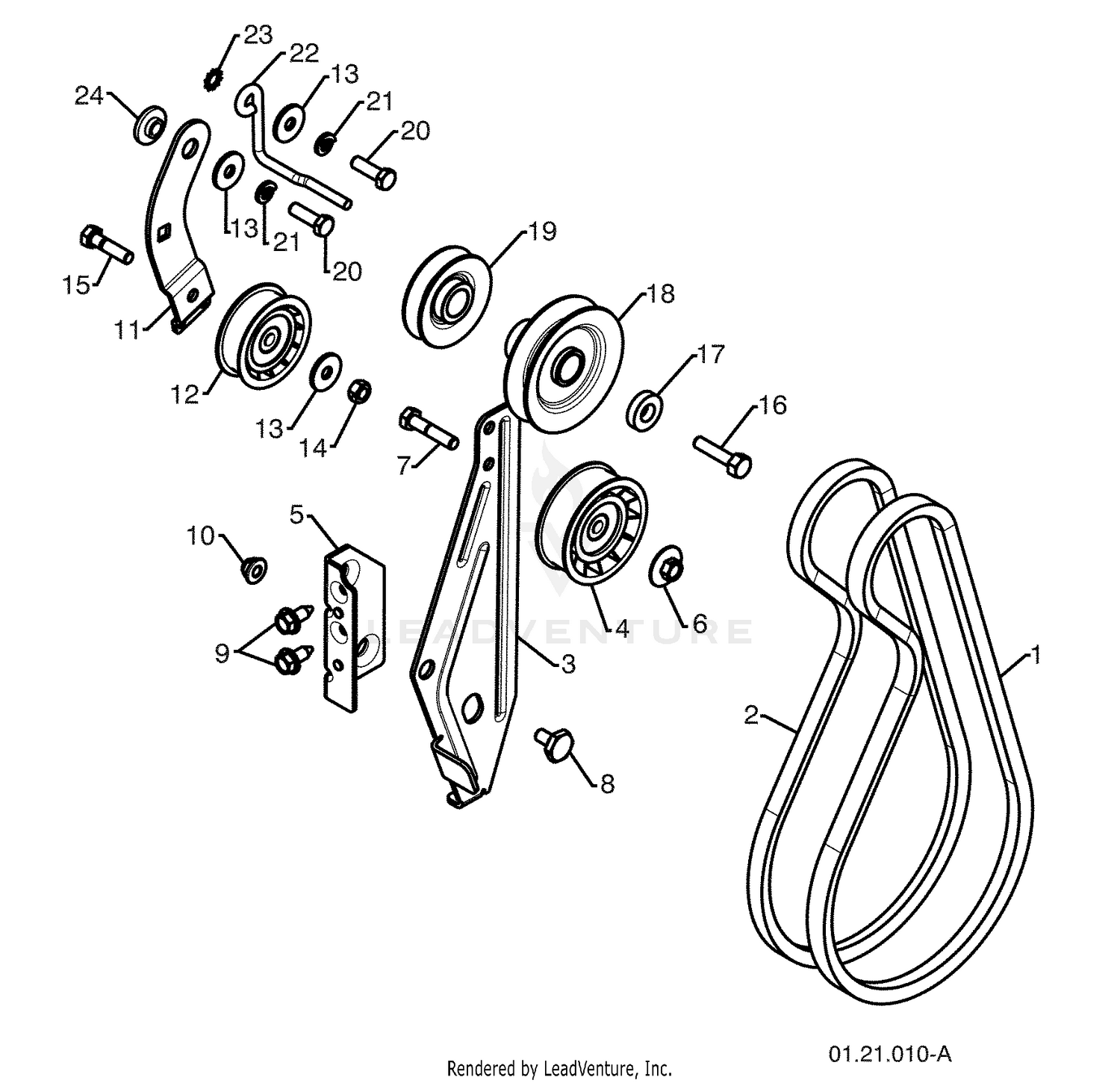

| Ref | Part Number | Description |
|---|
| 1 |
532408019 |
VBELT; IMPELLER_39.09 Price: $42.99 |
| 1 |
98-9508 |
WASHER-SHAFT, R-ARM Price: $0.47 |
| 2 |
532192383 |
V-BELT.TRACTION.HYDRO Price: $37.99 |
| 2 |
98-9385 |
WASHER-FLAT Price: $1.24 |
| 3 |
584232402 |
ARM.IDLER BRAKE.CLEAR.ZINC This part replaces 532429271. Price: $12.99 |
| 3 |
98-9393 |
NUT Price: $2.72 |
| 4 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 4 |
98-9503 |
NUT Price: $1.33 |
| 5 |
532423990 |
RP.BRACKET.IDLER.PIVOT.BLACK This part replaces 532429270. Price: $4.99 |
| 5 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 6 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532426589. Price: $4.99 |
| 6 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 7 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 8 |
105-3790 |
R-ARM SHAFT ASM This part replaces 98-9612. Price: $28.61 |
| 8 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $3.99 |
| 9 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 9 |
98-9370 |
CLIP-CIRCULAR, EXTERNAL Price: $1.30 |
| 10 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 532427942. Price: $5.99 |
| 10 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 11 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532187786. Price: $27.99 |
| 11 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 12 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 12 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 13 |
532059289 |
STEEL WASHER Price: $3.99 |
| 13 |
98-9391 |
SCREW-SET, ROCKER ARM Price: $5.98 |
| 14 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 14 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 15 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 15 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 16 |
107-9092 |
RETAINER-SPRING This part replaces 98-9498. Price: $2.58 |
| 16 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 17 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 17 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 18 |
532426492 |
PULLEY.ENG.IMPELLER.SNOW Price: $17.99 |
| 18 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 19 |
532426490 |
PULLEY.ENG.TRACTION Price: $12.99 |
| 19 |
98-9506 |
STUD Price: $5.98 |
| 20 |
120-2564 |
VALVE-EXHAUST This part replaces 98-9495. Price: $34.21 |
| 20 |
874610516 |
SCREW Price: $3.99 |
| 21 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 22 |
532193607 |
GUIDE, BELT Price: $11.99 |
| 23 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
