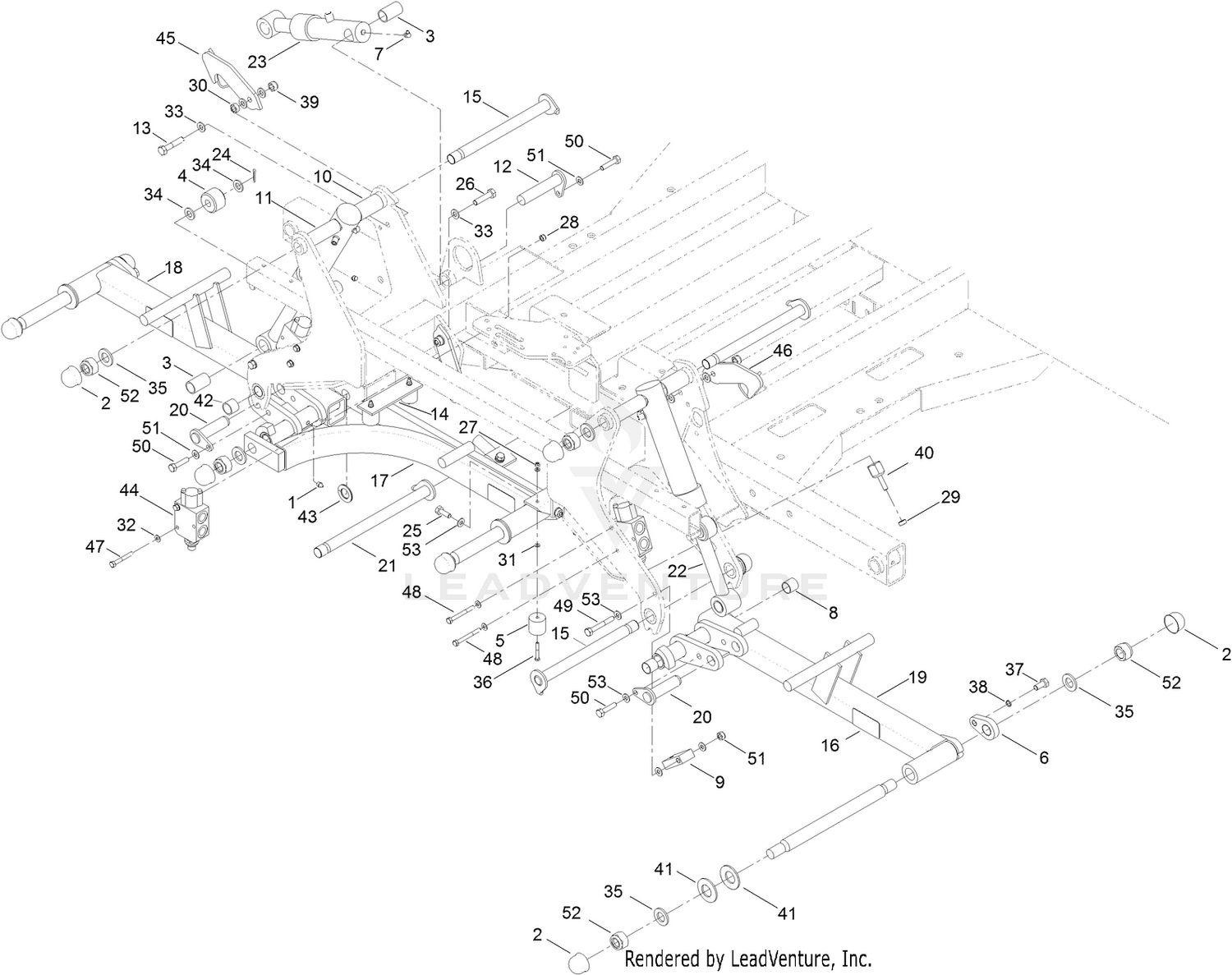

Rear Arm Assembly

Rear Arm Assembly

Parts (52)

RefPart NumberDescription
1 10-11-017 GREASE NIPPLE 1/8BSP STR Price: $1.44
2 10-11-100 NUT CAP M24 Price: $1.97
3 25-07-007 TENSION BUSH 30/25*50 LG Price: $14.47
4 61-01-222 ROLLER Price: $18.55
5 61-07-003 RUBBER BUFFER Price: $9.55
6 63-01-185W RETAINER Price: $48.24
7 63-07-027 GREASE NIPPLE 1/8BSP 9OD Price: $1.55
8 876066 BUSH This part replaces 65-07-052. Price: $8.34
9 66-01-181 FOLLOWER CAM Price: $34.82
10 66-05-006W TUBE BUSH RETAINING FRONT Price: $21.41
11 66-05-007W TUBE BUSH RETAINING REAR Price: $19.96
12 66-05-107 PIN - CENTRE CYLINDER PIVOT Price: $60.04
13 66-11-002 BOLT - HEX HEAD HIGH TENSILE Price: $4.55
14 70-01-471W BUMP STOP BRACKET (PNT) Price: $26.84
15 70-05-113 FRONT ARM PIVOT PIN W/A Price: $54.61
16 70-13-077 DECAL - SAFETY LATCHES Price: $4.59
17 74-01-230W CENTRE ARM W.A. Price: $942.45
18 74-01-240W WING ARM LH W.A. Price: $651.95
19 74-01-250W WING ARM RH W.A. Price: $651.95
20 74-05-108 PIN WING ARM ROD Price: $38.79
21 74-05-114 PIN CENTRE ARM PIVOT Price: $87.60
22 74-06-012W CYLINDER HYDRAULIC WING Price: $322.00
23 74-06-058W CYL - HYDRAULIC DISPEL (PNT) Price: $316.86
24 74-11-002 SPLIT PIN 4DIA X 25 Price: $1.42
25 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
26 09417 SETCSREW - HIGH TENSILE Price: $5.82
27 09438 NUT M6 X 1.5 PLAIN Price: $1.39
28 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
29 09449 NUT M10 PLAIN Price: $1.34
30 09454 NUT M12 PLAIN HEX PLATED Price: $1.36
31 09472 WASHER-PLAIN Price: $1.25
32 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
33 HY09485 WASHER M12 PLAIN Price: $1.40
34 09491 WASHER M16 PLAIN Price: $1.42
35 09555 WASHER M24 PLAIN Price: $1.31
36 09568 BOLT M6X45 HEX HD GD 8.8 PLTD Price: $1.34
37 09571 SETSCREW M12 X 25 HEX HD Price: $1.40
38 09599 WASHER Price: $1.42
39 09650 NUT Price: $1.40
40 767552 PIN DIVERTER ACTUATOR Price: $16.89
41 767815 WASHER-BELLEVILLE Price: $7.80
42 767818 BUSH GLACIER 28*25*20 LG Price: $18.66
43 767819 WASHER THRUST 44*26*1.2 THK Price: $4.88
44 953601 VALVE 3 PORT DIVERTER Price: $236.37
45 994350C LATCH W/A LH Price: $45.95
46 994355C LATCH W/A RH Price: $45.95
47 09371 BOLT M8 X 60 Price: $1.34
48 ZBH1H075U HEX HD BOLT M8*75 Price: $1.38
49 ZBH1J075U HEX HD.BOLT M10*75 Price: $1.31
50 ZDH1J045U HEX.HD.SET SCW.M10 * 45LG Price: $1.31
51 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
52 ZNN1X000U HEX.NUT M24 NYLOC Price: $5.40
