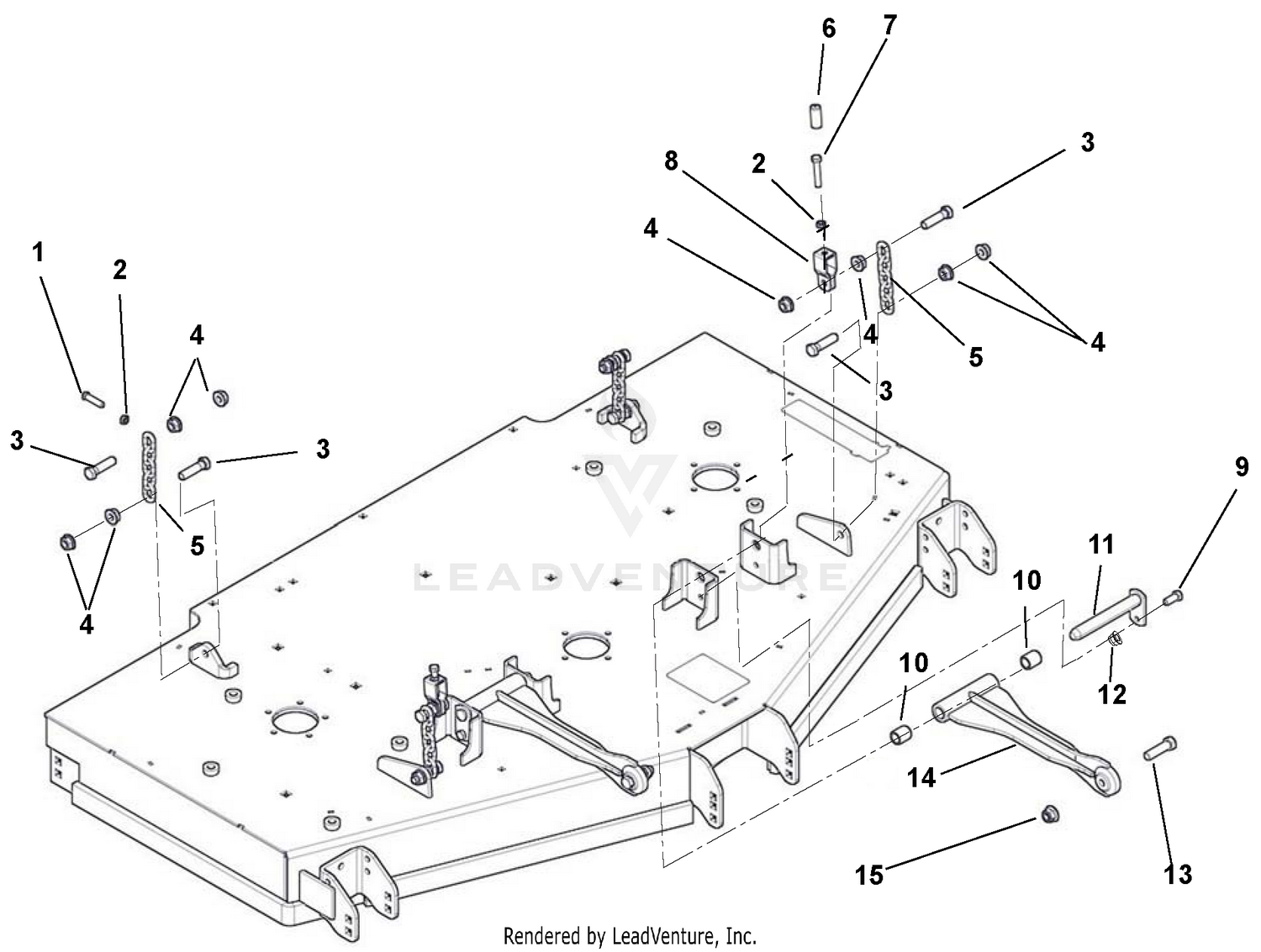

| Ref | Part Number | Description |
|---|
| 1 |
05900035 |
BLT-HEX .312-18X1.50 FTH GR5YZ Price: $2.95 |
| 2 |
06500909 |
NUT-JAM .312-18 G2 ZCC This part replaces 06536100. Price: $0.95 |
| 3 |
05900022 |
BLT, HEX M12-1.75X50 CLS8.8 YZ Price: $3.45 |
| 4 |
06500003 |
NUT-SPNLK-FLG M12-1.75 YZ Price: $2.45 |
| 5 |
09284700 |
CHAIN, LINK Price: $5.45 |
| 6 |
07539500 |
CAP-VINYL .50ID X 1.50LG X.055 Price: $3.45 |
| 7 |
05902003 |
BLT, HEX .31-18X2.00F G5 ZCC This part replaces 05980900. Price: $2.95 |
| 8 |
00442800 |
BRKT, DECK LEVELING Price: $8.45 |
| 9 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 10 |
05435900 |
BRG, .750 X .875 X 1.000 Price: $5.95 |
| 11 |
09238900 |
WELDMENT, MOWER MTG. PIN Price: $55.45 |
| 12 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 13 |
05901929 |
BLT, HEX .50-13X2.00 G5 ZCC This part replaces 05959700. Price: $2.95 |
| 14 |
04303651 |
WMT, DECK STABILIZER ARM Price: $88.95 |
