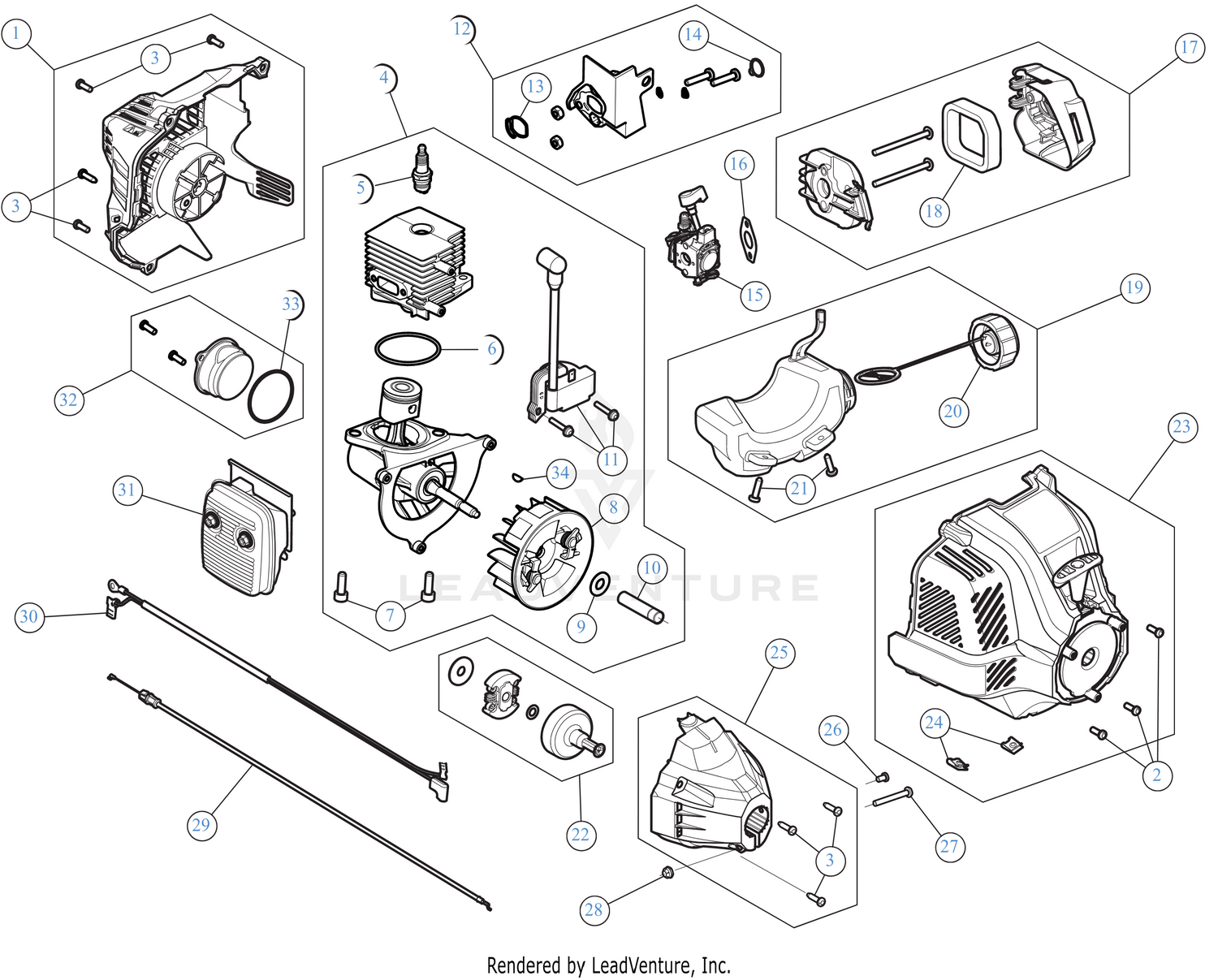

Engine Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 791-182195 | SCREW #10-24X11/16 T-25 Price: $6.20 |
| 3 | 710-04194 | SCREW 8-16 x 3/4 Price: $3.66 |
| 5 | 753-06847 | SPARK PLUG Price: $6.35 |
| 6 | 753-09085 | O-RING SEAL CYLINDER Price: $2.44 |
| 7 | 710-06241 | SCREW 5/16-18x3/4 T40 Price: $2.48 |
| 8 | 753-09125 | FLYWHEEL ASSEMBLY Price: $13.74 |
| 9 | 753-06247 | BELL WASHER Price: $3.05 |
| 10 | 750-04434 | SPACER :2.165" Price: $5.91 |
| 11 | 753-10464 | MODULE Price: $30.48 |
| 13 | 753-06184 | O-RING Price: $2.93 |
| 14 | 721-04972 | CARBURETOR SEAL Price: $0.92 |
| 15 | 753-06288 | CARBURETOR Price: $32.65 |
| 16 | 753-06253 | GASKET CARB Price: $2.98 |
| 18 | 753-06417 | AIR FLITER Price: $2.30 |
| 20 | 791-182612 | FUEL CAP ASSEMBLY Price: $17.64 |
| 21 | 791-181930 | SCREW:10-6 x .75 Price: $5.95 |
| 22 | 753-05860 | SMALL CLUTCH ASSEMBLY W/SMALL DRUM Price: $22.50 |
| 24 | 791-182366 | NUT, TINNERMAN U-T Price: $4.90 |
| 26 | 791-182519 | SCREW, 8-32 x .312 P Price: $4.37 |
| 27 | 9689A | SCREW Price: $9.81 |
| 28 | 712-0161 | HEX NUT Price: $4.02 |
| 29 | 746P06311A | THROTTLE CABLE This part replaces 746P06311. Price: $5.33 |
| 30 | 794-00244 | LEAD WIRES Price: $2.95 |
| 31 | 841P014184S | MUFFLER Price: $22.91 |
| 33 | 753-09086 | O-RING SEAL CRANKCASE Price: $2.44 |
