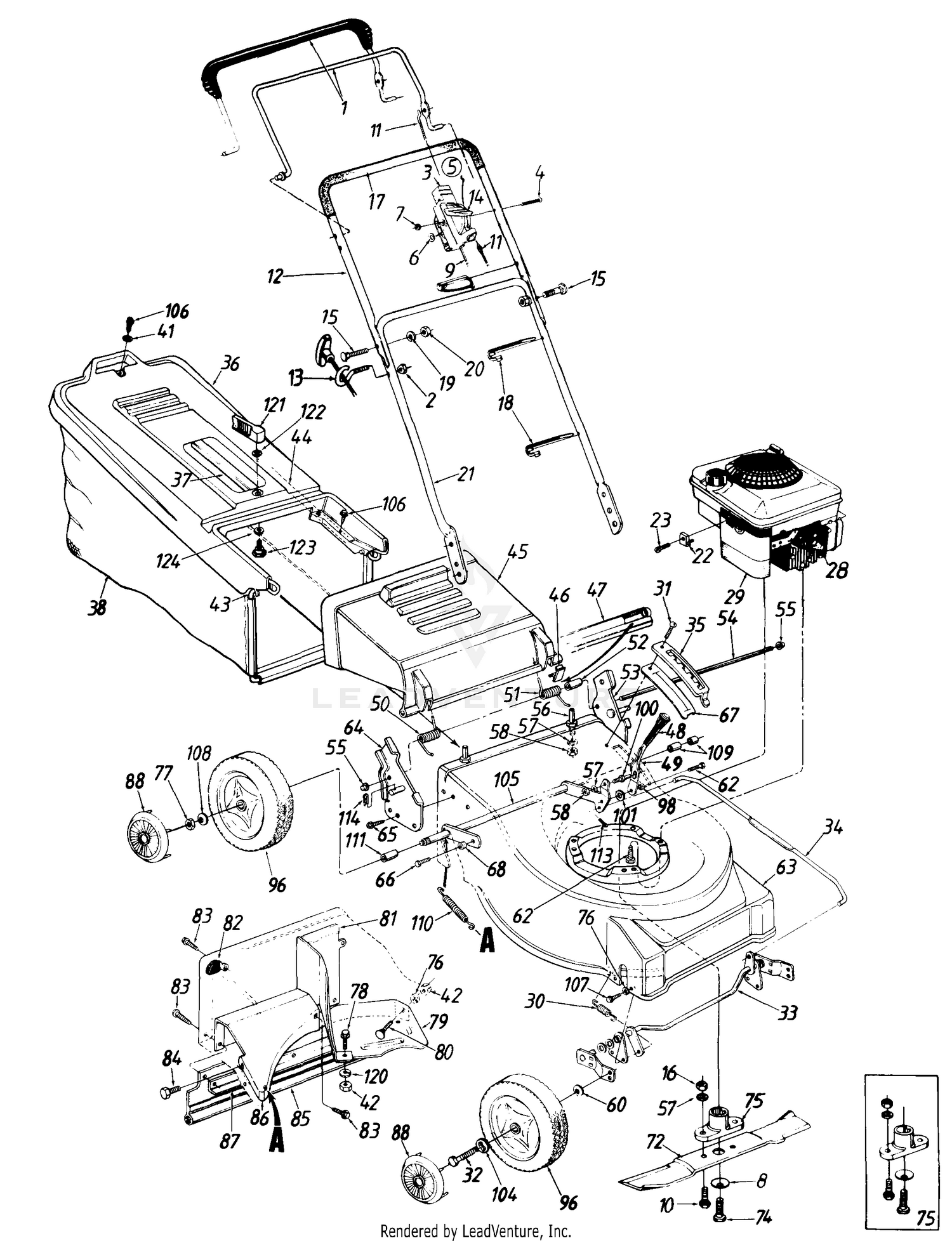

| Ref | Part Number | Description |
|---|
| 2 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 7 |
712-0291 |
Hex L-Nut 1/4-20 Thd. Price: $3.93 |
| 8 |
736-0452 |
Bell-Wash..39" I.D. Price: $4.05 |
| 11 |
946-0554 |
Control Cable (brake) This part replaces 746-0554. Price: $19.73 |
| 12 |
749-0438D-0637 |
UPPER HANDLE Not Available This part replaces 749-0438B. Price: |
| 13 |
710-1205 |
Rope Guide Price: $3.53 |
| 14 |
946-0876 |
Throttle Lever This part replaces 746-0876. Price: $7.50 |
| 15 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 18 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 21 |
749-0907B |
Lower Handle This part replaces 749-0504C. Price: $43.95 |
| 22 |
BS-690798 |
Cable Clamp (B&S) This part replaces 751-0568. Price: $4.88 |
| 23 |
710-1237 |
Wash. Hd. Scr. #10-32 x .62" Lg. Price: $3.89 |
| 29 |
N/A |
Engine |
| 30 |
732-0589 |
EXTENSION SPRING 2 89" LG. Not Available Price: |
| 31 |
710-1017 |
Torx Hd. AB-Tap Scr. 1 4" x .62" Lg. Price: $7.26 |
| 32 |
N/A |
Axle Bolt |
| 33 |
17022-0637 |
AXLE ASSEMBLY BLACK Not Available This part replaces 17022. Price: |
| 34 |
747-0699 |
ROD-HGT ADJ Not Available Price: |
| 35 |
17323 |
PLATE-HGT Not Available Price: |
| 36 |
631-0003 |
HARDTOP BAG COVER Not Available This part replaces 731-0857A. Price: |
| 38 |
964-0252 |
Grass Bag This part replaces 764-0252. Price: $125.85 |
| 41 |
736-0463 |
Fl-Wash..281" I.D. x .62" O.D. Price: $3.91 |
| 43 |
764-0411-0637 |
CATCHER FRAME Not Available This part replaces 764-0411. Price: |
| 44 |
749-0736A |
REAR CATCHER FRAME Not Available Price: |
| 45 |
931-0859A |
CHUTE DEFLECTOR Not Available This part replaces 731-0859. Price: |
| 46 |
731-0970B |
DEFLECTOR PLUG Not Available Price: |
| 47 |
731-0858 |
EXTRUSION SEAL Not Available Price: |
| 48 |
720-0223 |
Grip Price: $12.89 |
| 49 |
732-0580 |
SPRING LEVER Not Available Price: |
| 50 |
732-0578B |
TORSION SPRING (RH) Not Available Price: |
| 51 |
732-0577B |
TORSION SPRING Not Available Price: |
| 52 |
750-0566A |
Spacer, .260 x .372 x 1.030 This part replaces 750-0566. Price: $9.17 |
| 53 |
12297A |
BRACKET ASSEMBLY Not Available Price: |
| 54 |
747-0698B |
HINGE PIN Not Available Price: |
| 55 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 56 |
711-0805 |
SHOULDER PIN 3/8-24X1.43 Not Available Price: |
| 58 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 60 |
736-0105 |
Bell-Wash..38" I.D. x .88" O.D. Price: $3.96 |
| 62 |
710-0654A |
Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg. Price: $3.75 |
| 64 |
12296B-0637 |
BRACKET ASSEMBLY Not Available This part replaces 12296A. Price: |
| 65 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 66 |
910-1006 |
HEX SCREW 3/8 x 7/8 Not Available This part replaces 710-1006. Price: |
| 67 |
721-0216 |
SEAL-HGT A Not Available Price: |
| 68 |
750-0526 |
Spacer .385" I.D. Price: $3.96 |
| 74 |
710-1044 |
Hex Bolt 3/8-24 x 1.5" Lg. Price: $3.48 |
| 75 |
753-0484 |
Blade Adapter Kit Price: $21.69 |
| 77 |
912-3020 |
Top Lock Jam Nut 3/8-16 This part replaces 712-3020. Price: $5.50 |
| 78 |
710-3015 |
Hex Bolt 1/4-20 x .75" Lg. This part replaces 710-0252. Price: $3.65 |
| 79 |
17013 |
BAFFLE-BELT Not Available Price: |
| 81 |
17007 |
BAFFLE-RR-PANEL Not Available Price: |
| 82 |
731-0931 |
PLUG-CORNER Not Available Price: |
| 83 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. Price: $7.26 |
| 84 |
710-0352 |
Hex B-Tap Scr. 1/4 x .38" Lg. Price: $4.05 |
| 85 |
731-0669 |
Rear Flap Price: $44.10 |
| 86 |
17008-0637 |
BAFFLE-RR-CHUTE Not Available This part replaces 17008. Price: |
| 87 |
14847 |
RETAINING STRIP Not Available Price: |
| 88 |
N/A |
Hub Cap |
| 96 |
N/A |
Wheel Ass'y. Comp. |
| 98 |
750-0624 |
SHOULDER SPACER Not Available Price: |
| 100 |
711-0805 |
SHOULDER PIN 3/8-24X1.43 Not Available Price: |
| 101 |
736-0238 |
Fl-Wash..375" I.D. x 1.0" Price: Call Us |
| 106 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 107 |
710-0352 |
Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .38" Lg. Price: $4.05 |
| 108 |
736-0300 |
Fl-Wash. 385" I.D. x 87" Price: $3.93 |
| 109 |
711-0500 |
SLEEVE Not Available Price: |
| 110 |
732-0481 |
EXTENSION SPRING Not Available Price: |
| 111 |
711-0313 |
SLEEVE Not Available Price: |
| 114 |
714-0104 |
Internal Cotter Pin 5/16" Dia. Price: $3.90 |
| 120 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 121 |
920-0224 |
LOCKING KNOB Not Available This part replaces 720-0224. Price: |
| 122 |
736-0498 |
Internal L-Wash. 1/4" I.D. Price: $3.70 |
| 123 |
738-0137 |
BOLT, SHOULDER, 1/4-20 x 2.65 LG Not Available Price: |
