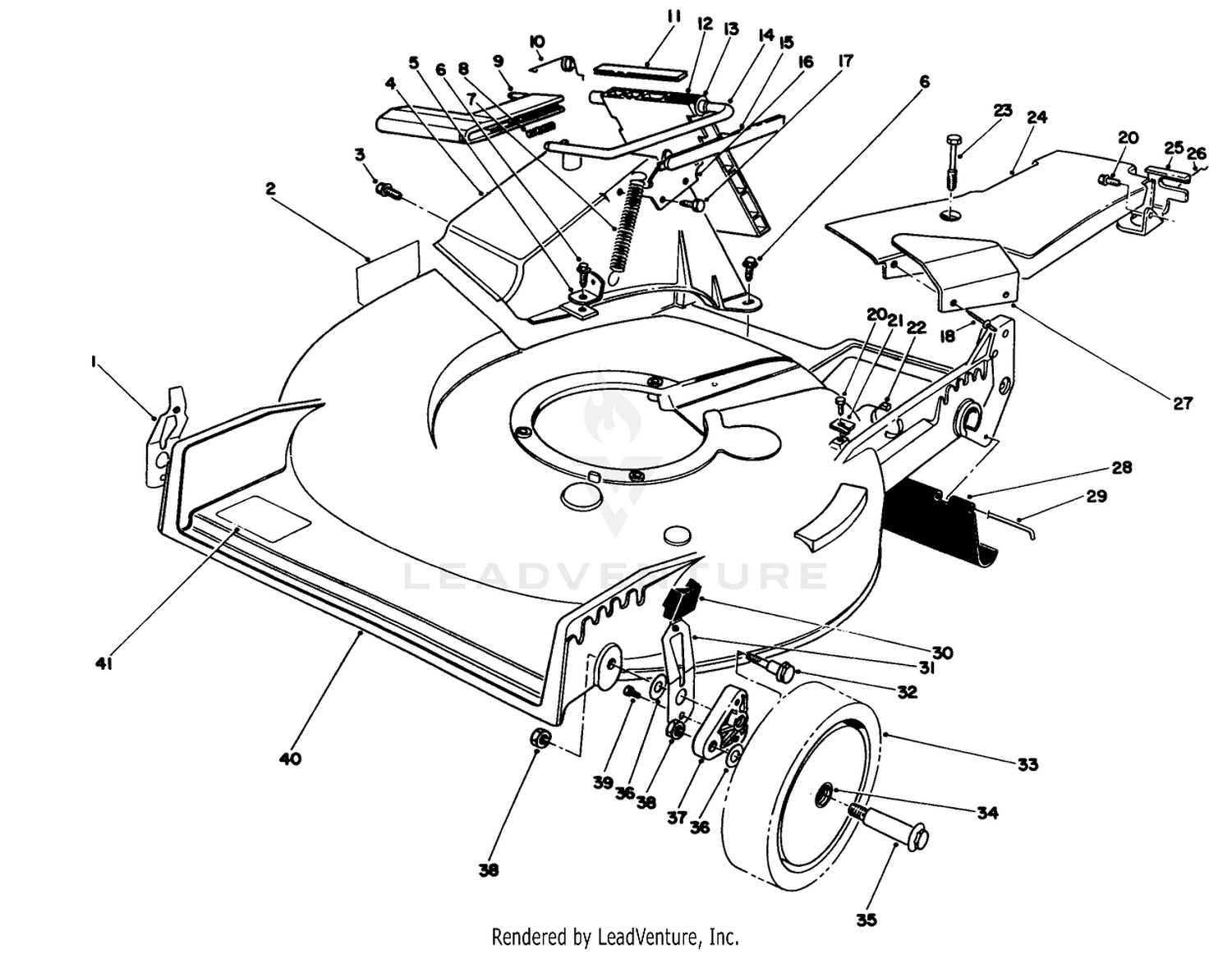

| Ref | Part Number | Description |
|---|
| 1 |
71-0561 |
RH SPRING ARM ASM This part replaces 71-0560. Price: $15.99 |
| 2 |
39-5770 |
DECAL-DANGER Price: $7.99 |
| 3 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 4 |
82-9150 |
DISCHARGE TUNNEL Price: $125.66 |
| 5 |
71-9350 |
BRACKET-SPRING This part replaces 80-3780. Price: $13.99 |
| 6 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 7 |
76-4660 |
SPRING-DOOR Price: $10.99 |
| 8 |
46-7060 |
ORD.77-0200 ASM Price: Call Us |
| 9 |
46-3520 |
ORD.77-0200 ASM Price: Call Us |
| 10 |
80-3770 |
RETAINER-DOOR Price: $6.49 |
| 11 |
46-6821 |
ORD.77-0200 ASM Price: Call Us |
| 12 |
46-3511 |
DISCONTINUED Price: Call Us |
| 13 |
23-0880 |
BUSHING-NYLON Price: $9.27 |
| 14 |
76-4580 |
ORD.77-0200 ASM Price: Call Us |
| 15 |
49-4170 |
ORD.77-0200 ASM Price: Call Us |
| 16 |
76-4570 |
DOOR LATCH PLATE Price: $5.27 |
| 17 |
46-8090 |
SCREW-PLASTITE Price: $2.04 |
| 18 |
3295-35 |
RIVET-HEAD, FLAT Price: $1.79 |
| 20 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 21 |
62-3720 |
CLAMP-CABLE Price: $1.79 |
| 22 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 23 |
37-7260 |
SCREW-HWH Price: $5.09 |
| 24 |
52-7406 |
DISCONTINUED Price: Call Us |
| 25 |
82-5680-03 |
BRACKET-TRACTION, ADJ. This part replaces 82-5680. Price: $10.99 |
| 26 |
46-7030 |
RETAINER-CABLE Price: $5.29 |
| 27 |
77-0280 |
DISCONTINUED Price: Call Us |
| 28 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $26.99 |
| 29 |
33-3208 |
ROD-SHIELD Price: $13.99 |
| 30 |
25-7740 |
KNOB-ARM Price: $4.59 |
| 31 |
71-0570 |
LH SPRING ARM ASSEMBLY Price: $19.99 |
| 32 |
66-0561 |
SCREW-SHOULDER Price: $5.49 |
| 33 |
51-2751 |
WHEEL AND TIRE ASM This part replaces 11-9509. Price: $28.99 |
| 34 |
27-6250 |
BUSHING Price: $2.29 |
| 35 |
27-6231 |
WHEEL BOLT Price: $4.49 |
| 36 |
40-1940 |
WASHER Price: $1.59 |
| 37 |
66-0580 |
ARM-PIVOT, FRONT Price: $16.99 |
| 38 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 39 |
32144-85 |
SCREW-HWH Price: $1.59 |
| 40 |
14-3489 |
HOUSING W/DECAL Price: $707.99 |
| 41 |
71-0600 |
DECAL Price: $12.99 |
