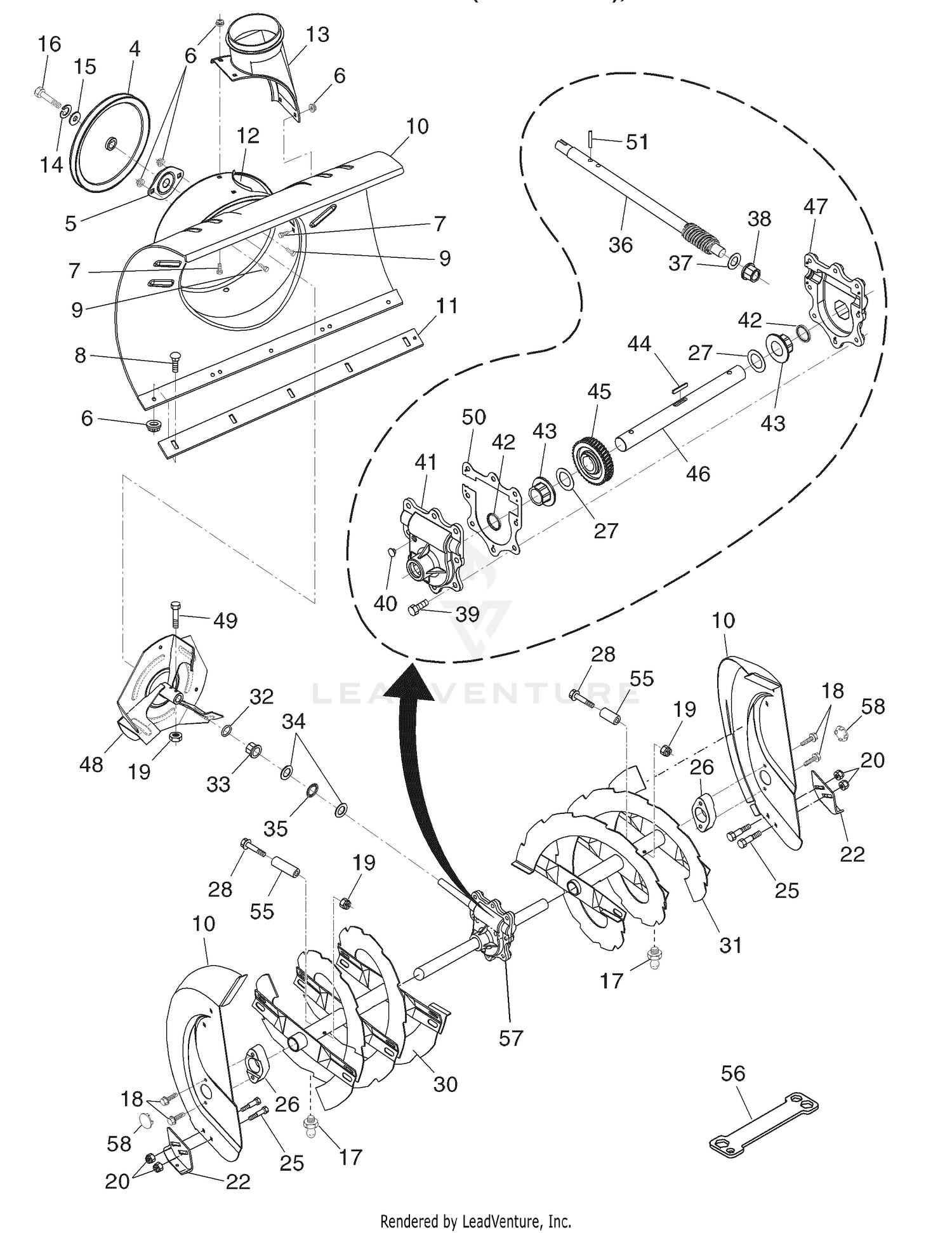

| Ref | Part Number | Description |
|---|
| 1 |
94-8018 |
DISCONTINUED Price: Call Us |
| 2 |
94-8019 |
ARM-ROD,TIE Price: $1,439.52 |
| 3 |
76-4260 |
BUSHING Price: $6.38 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532191079. Price: $27.99 |
| 4 |
94-5603 |
BUSHING-METRIC This part replaces 76-7950. Price: $110.04 |
| 5 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 5 |
76-7820 |
SHIM - THRUST B Price: $13.73 |
| 6 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 6 |
76-8000 |
DISCONTINUED Price: Call Us |
| 7 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 7 |
76-8010 |
WASHER Price: $1.53 |
| 8 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 8 |
76-7710 |
DISCONTINUED Price: Call Us |
| 9 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 9 |
76-7720 |
DISCONTINUED Price: Call Us |
| 10 |
581708379 |
KIT.AUGER.HOUSING.404928X668 This part replaces 532407880. Price: $237.99 |
| 10 |
76-8030 |
DISCONTINUED Price: Call Us |
| 11 |
531064001 |
SERVICE KIT SCRAPER BAR.SCRAPE This part replaces 532407825. Price: $9.99 |
| 11 |
93-7783 |
RING - RETAINING Price: $15.58 |
| 12 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 12 |
93-7784 |
DISCONTINUED Price: Call Us |
| 13 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 13 |
93-7785 |
NUT Price: $7.86 |
| 14 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 14 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 15 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 16 |
76-8050 |
END-ROD, RH Price: $239.29 |
| 16 |
874940516 |
CAPSCREW.HX.HD.5/16-18X1.00.NY Price: $3.99 |
| 17 |
532405637 |
GREASE FITTING Price: $3.99 |
| 17 |
93-7786 |
DISCONTINUED Price: Call Us |
| 18 |
532179582 |
SCREW, HEX HD 5/16X1 Price: $3.99 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 20 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 21 |
76-7960 |
NIPPLE - GREASE Price: $8.57 |
| 22 |
532407834 |
SKID PLATE Price: $17.99 |
| 22 |
76-8020 |
DISCONTINUED Price: Call Us |
| 23 |
76-8060 |
NUT Price: $2.85 |
| 24 |
76-8040 |
NUT Price: $2.36 |
| 25 |
76-7700 |
DISCONTINUED Price: Call Us |
| 25 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 26 |
532420478 |
BEARING.AUGER.SHAFT This part replaces 532174658. Price: $7.99 |
| 27 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 28 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR This part replaces 532198636. Price: $1.00 |
| 30 |
532435231 |
KIT.AUGER.24.RH This part replaces 532407850. Price: $179.99 |
| 31 |
583504001 |
KIT.AUGER.24.LH This part replaces 532407866. Price: $199.99 |
| 32 |
532407768 |
O-RING Price: $3.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $7.99 |
| 34 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 35 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 36 |
532407757 |
SHAFT, IMPELLER Price: $89.99 |
| 37 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 38 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $22.99 |
| 39 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $4.99 |
| 40 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW This part replaces 532407760. Price: $3.99 |
| 41 |
532174688 |
HOUSING.GEARBOX.RH.SNOW This part replaces 532407761. Price: $22.99 |
| 42 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $4.99 |
| 43 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $29.99 |
| 44 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 45 |
598831601 |
Service Kit This part replaces 532407763. Price: $199.99 |
| 46 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $59.99 |
| 47 |
532407765 |
HOUSING.GEARBOX.LH(SERVICE) Price: $22.99 |
| 48 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 49 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 50 |
532175311 |
GASKET.AUGER.GEARBOX This part replaces 532407766. Price: $7.99 |
| 51 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532184205. Price: $3.99 |
| 55 |
532198638 |
SPACER.3943.SLEEVE.250X.47 Price: $5.99 |
| 56 |
532429112 |
WRENCH.SNOWTHROWER.ZINC.YZ This part replaces 532180684. Price: $3.99 |
| 57 |
598831601 |
Service Kit This part replaces 532196710. Price: $199.99 |
