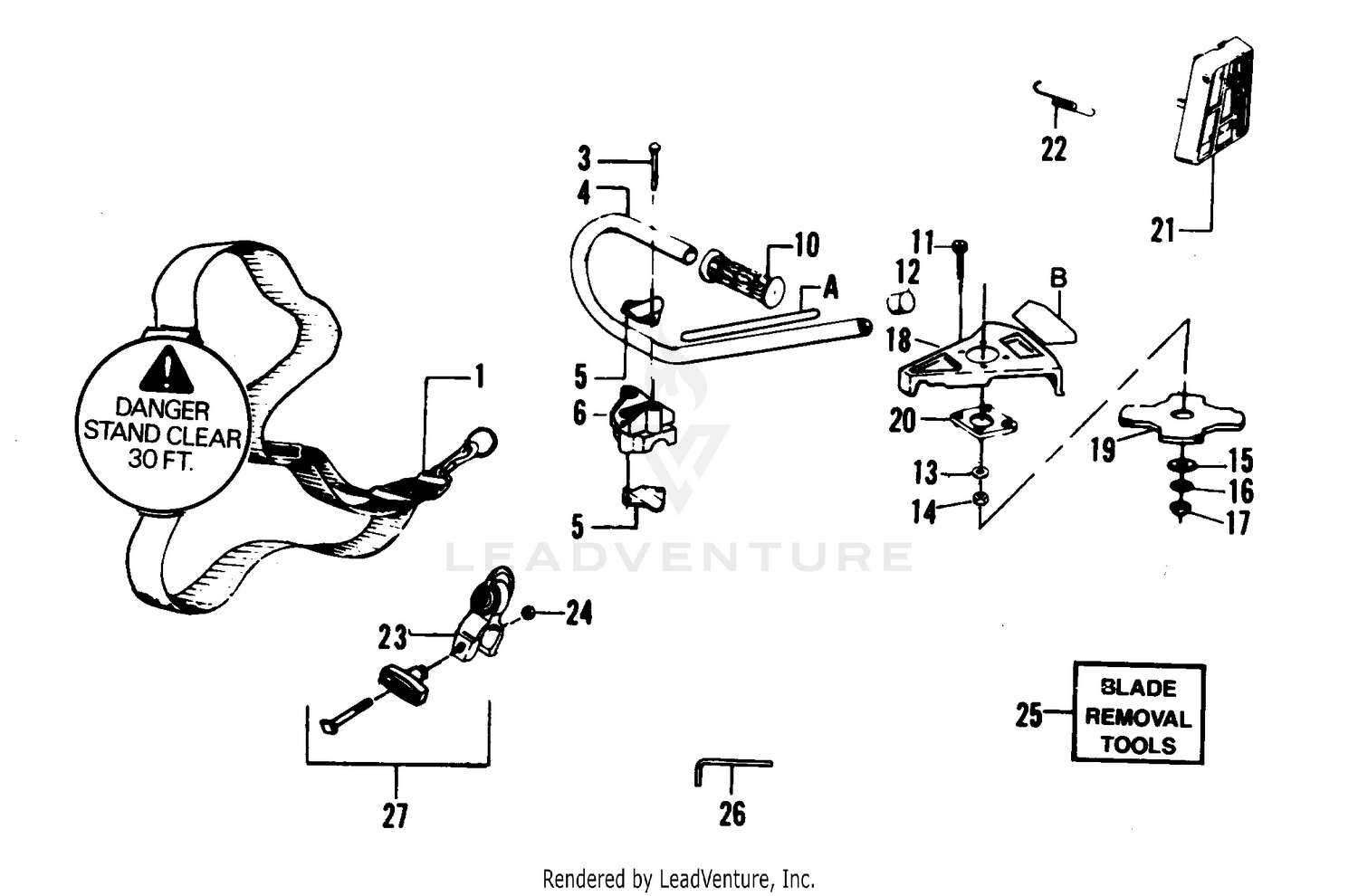

| Ref | Part Number | Description |
|---|
| A |
530026229 |
Decal-Handlebar Warning Price: $3.33 |
| 1 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 1 |
530094417 |
Shoulder Strap (inc. Key Ring) Price: $20.65 |
| 2 |
5-3433 |
DISCONTINUED Price: Call Us |
| 3 |
5-1686 |
ADJ ROD Price: $41.75 |
| 3 |
530015791 |
Bolt-1/4-20x2" Hex Price: $1.99 |
| 4 |
5-4553 |
DISCONTINUED Price: Call Us |
| 4 |
530093169 |
Barrier Handlebar Price: Call Us |
| 5 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 5 |
530094572 |
Handlebar Bracket Price: $1.99 |
| 6 |
282-1 |
DISCONTINUED Price: Call Us |
| 6 |
530012207 |
Handlebar Clamp Price: $8.99 |
| 7 |
323-6 |
SCREW-HH Price: $0.66 |
| 8 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 9 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 10 |
5-2896 |
PIVOT *R Price: $2.44 |
| 10 |
530092086 |
Grip-Handlebar Price: $4.99 |
| 11 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 11 |
530625509 |
Screw-#1/4"-20x1" Hex Price: $1.99 |
| 12 |
5-2845 |
ROLLER HANGER WA *RO Price: $188.44 |
| 12 |
530092192 |
End Cap Handlebar Price: $0.99 |
| 13 |
237-69 |
O-RING Price: $5.72 |
| 13 |
530001503 |
Washer-1/4" Flat Price: $3.33 |
| 14 |
3290-212 |
WASHER-SPRING Price: $1.56 |
| 14 |
530001615 |
Nut-Deflector to Brg. Hsh. (#1/4-20) Price: $0.44 |
| 15 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 15 |
530093751 |
Washer-Flat Price: $3.33 |
| 16 |
11-3050 |
SLEEVE Price: $53.95 |
| 16 |
530016240 |
Washer--Belleville This part replaces 530015492. Price: $1.99 |
| 17 |
253-118 |
SEAL-OIL Price: $18.29 |
| 17 |
530093748 |
Flange Nut Price: $2.99 |
| 18 |
5-1384 |
HOUSING-BEARING Price: $84.20 |
| 18 |
530094576 |
Shield-Aluminum Price: $3.33 |
| 19 |
285-17 |
PLUG-PIPE This part replaces 285-10. Price: $2.59 |
| 19 |
952701546 |
Blade-4 Tooth Weed Price: Call Us |
| 20 |
237-68 |
O-RING Price: $3.22 |
| 20 |
530027615 |
Shield Retention Plate Price: $3.99 |
| 21 |
251-205 |
BEARING-BALL Price: $40.83 |
| 21 |
530024855 |
Muffler Guard Price: $5.99 |
| 22 |
32151-13 |
RING-RETAINING Price: $4.39 |
| 22 |
530024932 |
Muffler Guard Spring Price: $3.33 |
| 23 |
5-4531 |
ROLLER ASM Price: $704.12 |
| 23 |
530094686 |
Clamp Harness Ass'y. This part replaces 530094598. Price: $4.99 |
| 24 |
5-2808 |
DISCONTINUED Price: Call Us |
| 24 |
530015197 |
Nut Price: $1.99 |
| 25 |
5-2846 |
DISCONTINUED Price: Call Us |
| 25 |
530031130 |
Blade Removal Tools Price: $3.33 |
| 26 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 26 |
530031159 |
Hex Wrench (5/32) This part replaces 530031111. Price: $1.99 |
| 27 |
322-4 |
SCREW-HH Price: $0.35 |
| 27 |
530069347 |
HANDLE KIT This part replaces 530069252. Price: $4.99 |
