Home / OPE / *Legacy / Sickle Bar Mowers / 34061 3.5HP-34" STD. (S/N 340610100101-340610399999) / SICKLE BAR

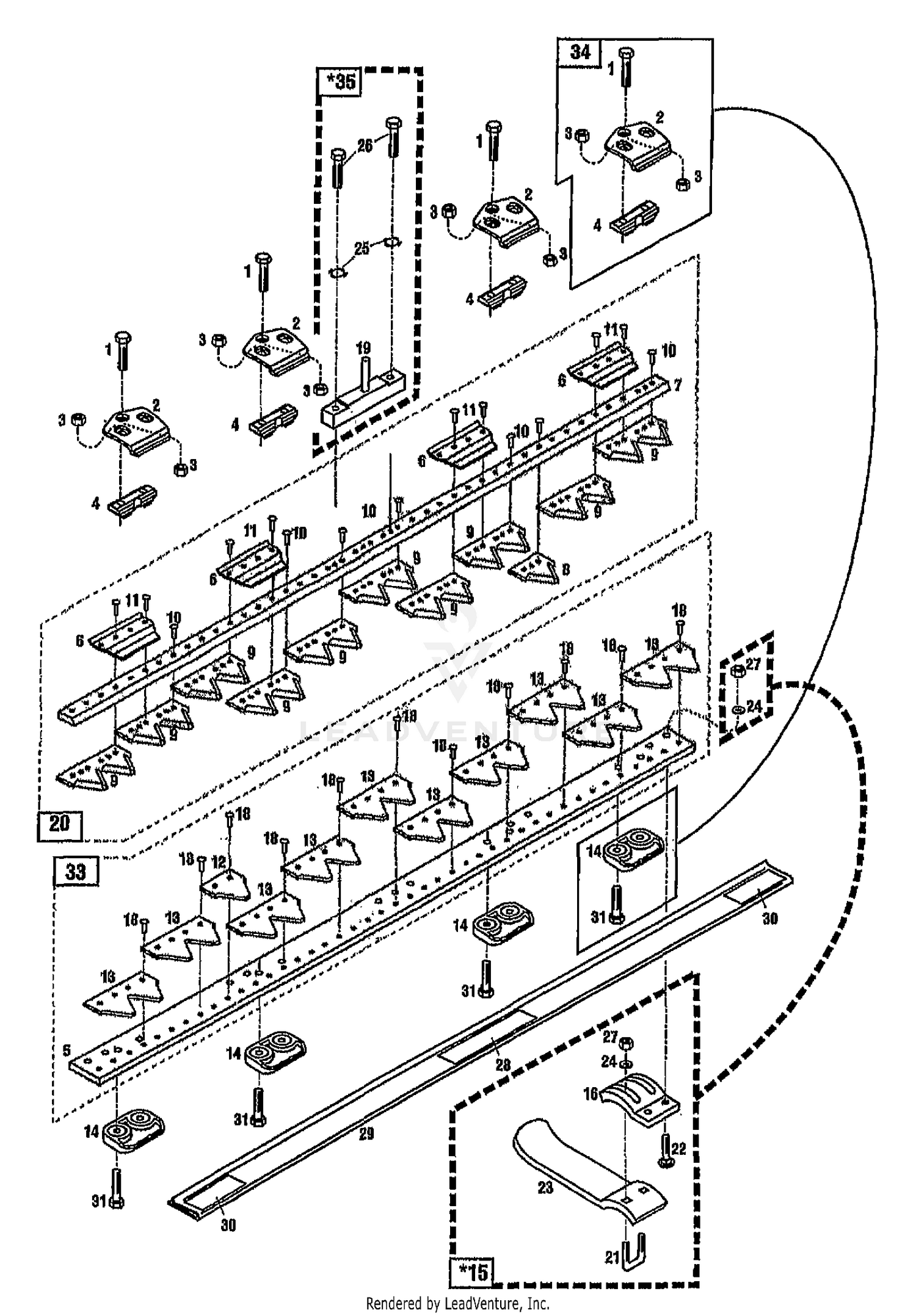

SICKLE BAR

SICKLE BAR

Parts (45)

RefPart NumberDescription
1 1766745 SCR-HHC M8-1.25X30 Not Available Price:
2 1766746 CLIP-HOLD DOWN Not Available Price:
3 712-0692 Nut, Hex Lock, M8-1.25, Nylon This part replaces 1766747. Price: $6.07
4 1766748 GUIDE-KNIFE Price: $29.62
5 1766753 SICKLE BAR-BACK 38" Not Available Price:
5 1766754 BACK BAR 42" Not Available Price:
6 1766755 PLATE-WEAR Not Available Price:
7 1766756 KNIFE BAR 38" Not Available Price:
7 1766757 BAR-KNIFE 42" NLAUD Not Available Price:
7 1766929 KNIFE BAR 34" Not Available Price:
8 1766758 SINGLE BLADE KNIFE SECTION Not Available Price:
9 1767069 KNIFE SECTION Not Available Price:
10 1768294 KIT-RIVET 5X17 12 PKG Price: $19.74
11 1768295 RIVET KIT5X20 12 PACK Not Available Price:
12 1766764 PLATE-LEDGER SINGL Not Available Price:
13 1766765 PLATE-LEDGER DOUBL Not Available Price:
14 1766767 RUNNER Price: $29.88
15 1766769 ASSM-SKID Not Available Price:
16 1766770001 SHOE-SPUR Not Available Price:
18 1768296 KIT-RIVET/SEC 6X20 Not Available Price:
19 1773057 HEAD-KNIFE (05 & HIGHER) Price: $179.77
19 1773525 KNIFE HEAD AND PITMAN KIT Not Available This part replaces 1769052. Price:
20 GW-34509 KNIFE ASSEMBLY 34" SICKLEBAR This part replaces 1765992. Price: $297.73
20 GW-34511 KNIFE ASSEMBLY 42" SICKLEBAR This part replaces 1766763. Price: $393.02
21 1767071 U-BOLT 5/16"-18" Not Available Price:
22 1186100 SCREW-CARR 5/16-18X1 Not Available Price:
23 1766773001 SHOE Not Available Price:
24 736-0275 FLAT WASHER This part replaces 1107382. Price: $5.99
25 1773271 WASHER .703X.359X. Not Available Price:
25 936-0104 Hairpin Clip This part replaces 1766751. Price: $4.20
26 710-3206A Hex Cap Screw, M8-1.25 x 25 This part replaces 1860217. Price: $3.64
27 712-0429 Lock Nut, 5/16-18 This part replaces 1983038. Price: $3.56
27 912-0158 Hex Lock Nut, 5/16-18 This part replaces 1110107. Price: $2.83
28 1766939 DECAL-DANGER Price: Call Us
29 1766777 COVER-BLAD Not Available Price:
29 1766934 BLADE GUAR Not Available Price:
29 1766935 BLADE GUARD 42"SICKLE BAR Not Available Price:
30 1766940 DECAL-ESM Price: Call Us
31 1766768 SCR-HH M8X45 Price: $4.13
33 1770597 BACK BAR 34" Not Available Price:
33 1770598 BACK BAR 38" Not Available Price:
33 1770599 BACK BAR 42" Not Available Price:
34 1766792 HOLD DOWN KIT Not Available Price:
35 1773525 KNIFE HEAD AND PITMAN KIT Not Available Price:
35 1773564 KIT-KNIFE HEAD/PITMAN (05 & UP) Price: Call Us
