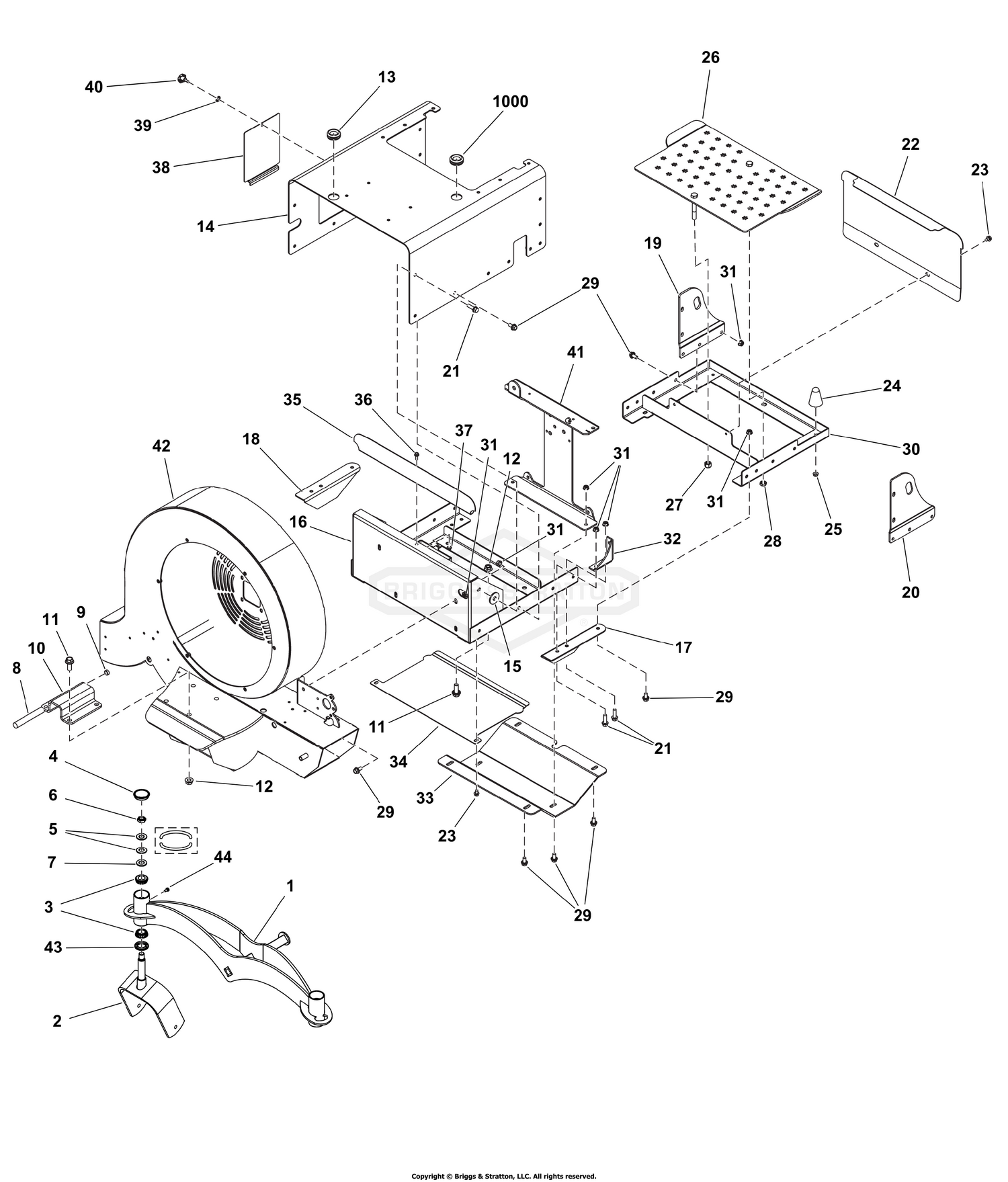

| Ref | Part Number | Description |
|---|
| 1 |
5423389A |
WELD, FRONT END FRAME, Z3000 - BLK Price: $300.00 |
| 2 |
84008188 |
YOKE, Caster Price: $102.66 |
| 3 |
5020884SM |
BEARING, TAPERED ROLL Price: $22.91 |
| 4 |
5109845FS |
CAP Price: $7.26 |
| 5 |
5025449SM |
WASHER, BELLEVILLE Price: $4.36 |
| 6 |
5025448SM |
NUT - 3/4-16 HEX JAM Price: $2.97 |
| 7 |
5025160SM |
WASHER, 3/4" SAE Price: $3.51 |
| 8 |
5107356FS |
CORD Price: $5.06 |
| 10 |
5419091ADFS |
PLATE Price: $47.43 |
| 11 |
5106786FS |
BOLT Price: $3.72 |
| 12 |
5106787FS |
NUT Price: $3.36 |
| 13 |
5106788FS |
GROMMET, RUBBER Price: $1.69 |
| 14 |
84008759 |
BOX, Motor Price: $478.81 |
| 15 |
5107390FS |
SPACER Price: $15.32 |
| 16 |
5107547AFS |
BOX, FRAME Price: $358.27 |
| 17 |
5107383AFS |
BRACKET Price: $10.12 |
| 18 |
5107382AFS |
BRACKET Price: $17.90 |
| 19 |
5418520A |
PLATE, TIE DOWN RH - BLK Price: Call Us |
| 20 |
5418521A |
PLATE TIE DOWN LH - BLK Price: Call Us |
| 21 |
5025390X10FS |
BOLT Price: $3.29 |
| 22 |
5419301A |
PLATE, TOE KICK, FB3000 - BLK Price: $57.00 |
| 23 |
5106898FS |
SCREW Price: $2.34 |
| 24 |
5107206FS |
BUMPER Price: $14.87 |
| 25 |
5025127SM |
NUT, 5/16-18 HEX SERR Price: $2.97 |
| 26 |
5418525AFS |
PLATFORM Price: $165.50 |
| 27 |
5025056FS |
NUT Price: $3.98 |
| 28 |
5025646FS |
NUT Price: $2.55 |
| 29 |
5106881FS |
BOLT Price: $2.12 |
| 30 |
5107561AFS |
BOX, FRAME Price: $176.37 |
| 31 |
5025666FS |
NUT Price: $2.65 |
| 32 |
5107387AFS |
SUPPORT, Transaxle Price: $38.02 |
| 33 |
5107384AFS |
PLATE Price: $103.39 |
| 34 |
5107385AFS |
GUARD Price: $47.39 |
| 35 |
5107386AFS |
GUARD Price: $26.55 |
| 36 |
5106872FS |
BOLT Price: $3.26 |
| 37 |
5025126FS |
NUT Price: $3.72 |
| 38 |
5419192AFS |
PLATE Price: $21.09 |
| 39 |
5107350FS |
WASHER Price: $1.59 |
| 40 |
5106913FS |
CAPSCREW Price: $5.72 |
| 41 |
5418591AFS |
TRANS, I-Beam Price: $80.46 |
| 42 |
80141028 |
ASSM, BLOWER HSG W/ DECALS, Z3000 Price: Call Us |
| 43 |
5021072SM |
SEAL, GREASE Price: $6.60 |
| 44 |
5025457SM |
BOLT - 1/4-28 X 1/2 Price: $3.40 |
