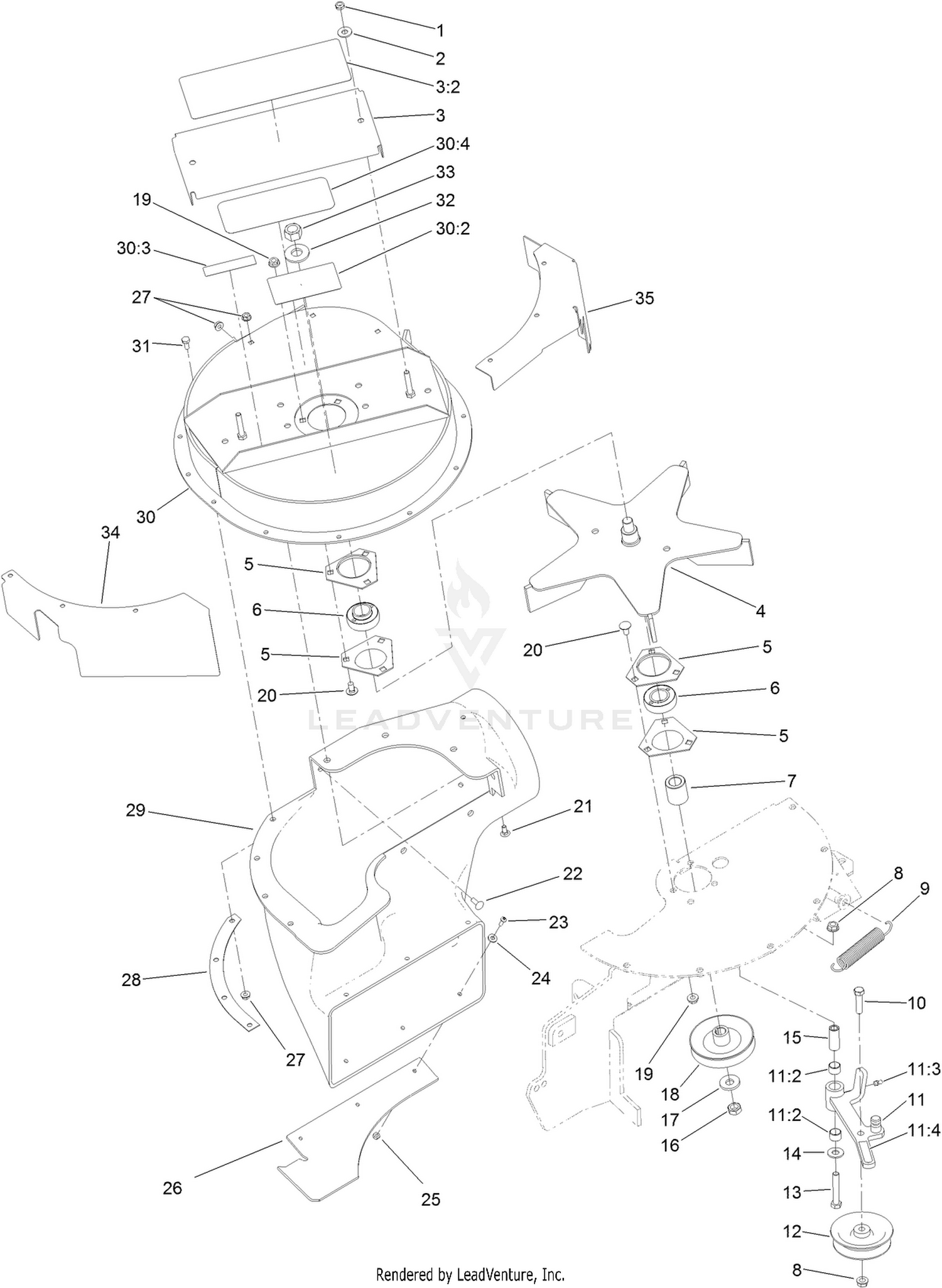

Chute, Impeller and Upper-Housing Assembly
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-47 | NUT-LOCK, NI Price: $3.59 |
| 2 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 3 | 117-0935 | BEARING COVER ASM Price: $55.41 |
| 4 | 103-0455 | IMPELLER Price: $421.99 |
| 5 | 1-513013 | HOUSING-FLANGE Price: $4.69 |
| 6 | 1-653346 | BEARING Price: $69.99 |
| 7 | 103-0460 | SPACER Price: $18.99 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 9 | 112-2346 | SPRING-EXTENSION Price: $15.01 |
| 10 | 323-8 | SCREW-HH Price: $1.20 |
| 11 | 110-0339 | IDLER ARM ASM Price: $180.99 |
| 12 | 103-1103 | IDLER-FLAT Price: $68.99 |
| 13 | 323-11 | SCREW-HH Price: $1.08 |
| 14 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 15 | 1-603044 | BUSHING Price: $13.99 |
| 16 | 3220-5 | NUT-JAM Price: $0.65 |
| 17 | 1-513435 | WASHER-SPRING Price: $4.99 |
| 18 | 103-0456 | SHEAVE Price: $51.99 |
| 19 | 32128-20 | NUT-HF Price: $0.99 |
| 20 | 3230-18 | SCREW-CARR Price: $4.09 |
| 21 | 3229-11 | SCREW-CARR Price: $0.99 |
| 22 | 3229-1 | BOLT-CARR Price: $3.39 |
| 23 | 3274-39 | SCREW-HSBH Price: $4.34 |
| 24 | 3256-16 | WASHER-FLAT Price: $0.39 |
| 25 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 26 | 110-0328-03 | PLATE-BOTTOM Price: $73.99 |
| 27 | 32128-33 | NUT-HF Price: $0.25 |
| 28 | 103-0461-03 | PLATE-BACKING, BLOWER Price: $14.99 |
| 29 | 109-1134 | CHUTE-BLOWER Price: $344.99 |
| 30 | 112-1773 | UPPER HOUSING ASM Price: $616.99 |
| 31 | 321-3 | SCREW-HH Price: $0.28 |
| 32 | 1-513208 | WASHER-SPRING Price: $7.69 |
| 33 | 3219-6 | NUT-HEX Price: $2.78 |
| 34 | 131-6143-03 | GUARD-FRONT Price: $51.07 |
