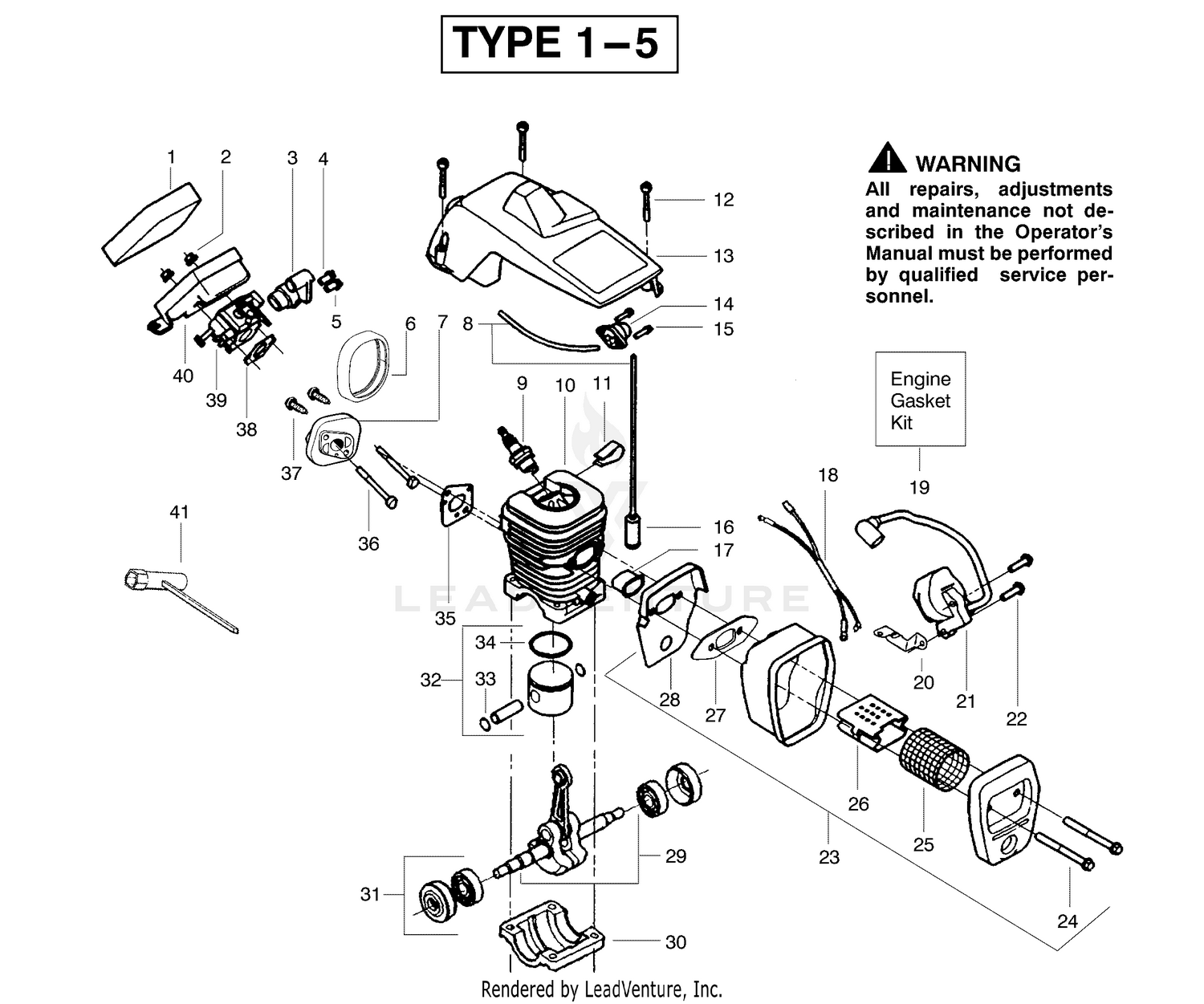

Engine Assembly Type 1-5

Engine Assembly Type 1-5

Parts (38)

RefPart NumberDescription
1 530037793 Foam- Air Filter Price: $1.99
2 127-1565 BRUSH SHAFT ASM Price: $297.31
2 530016101 Nut Price: $1.99
3 530049244 Grommet-Carb Adjust Price: $1.99
4 530038479 Limiter Cap-High Price: $1.99
5 530038478 Limiter Cap-Low Price: $1.99
6 530054144 Seal-Carb Adapter Price: $2.99
7 530049700 Carb. Adapter Price: $3.99
8 530069247 Fuel Line Kit (Small) Price: $3.99
9 503235111 BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99
10 530047127 CYLINDER This part replaces 530069606. Price: $59.99
11 530016136 Clip-High Tension Lead Price: $1.99
12 530016153 Screw Price: $1.99
13 530071310 Cylinder Shield Price: $9.99
14 530071835 Kit-Purge Bulb This part replaces 530047213. Price: $5.99
15 530015780 Screw Price: $1.99
16 530095646 Fuel Pick-up Ass'y. Price: $2.99
17 530037652 Heat Insulator Price: $1.99
18 530052296 Assy. -Wire Harness Price: $4.99
20 530047442 Strap-Ground Price: $1.99
21 530071905 KIT This part replaces 530039167. Price: $37.99
22 530015814 Screw Price: $1.99
24 530016132 Screw Price: $1.99
25 530036103 Screen-Spark Price: Call Us
26 530037813 Diffuser-Muffler Price: $1.99
27 530069608 Gasket-Muffler (Kit) Price: $5.99
28 530049870 Backplate-Muffler Price: $3.99
29 545113101 CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99
30 530037935 Cap-Crankcase Price: $8.99
31 530056363 Assy.-Seal & Bearing Price: $11.99
33 530015697 Retainer-Piston Pin Price: $1.99
34 530029805 Ring - Piston Price: $2.99
35 530069608 Gasket-Carb. Adap. (Kit) Price: $5.99
36 530016187 Screw Price: $1.99
37 530016386 Screw Price: $5.99
38 530069608 Gasket - Carb. (Kit) Price: $5.99
40 530057480 Housing- Air Filter This part replaces 530037804. Price: $4.99
41 530031163 Wrench - Bar Price: $4.99
