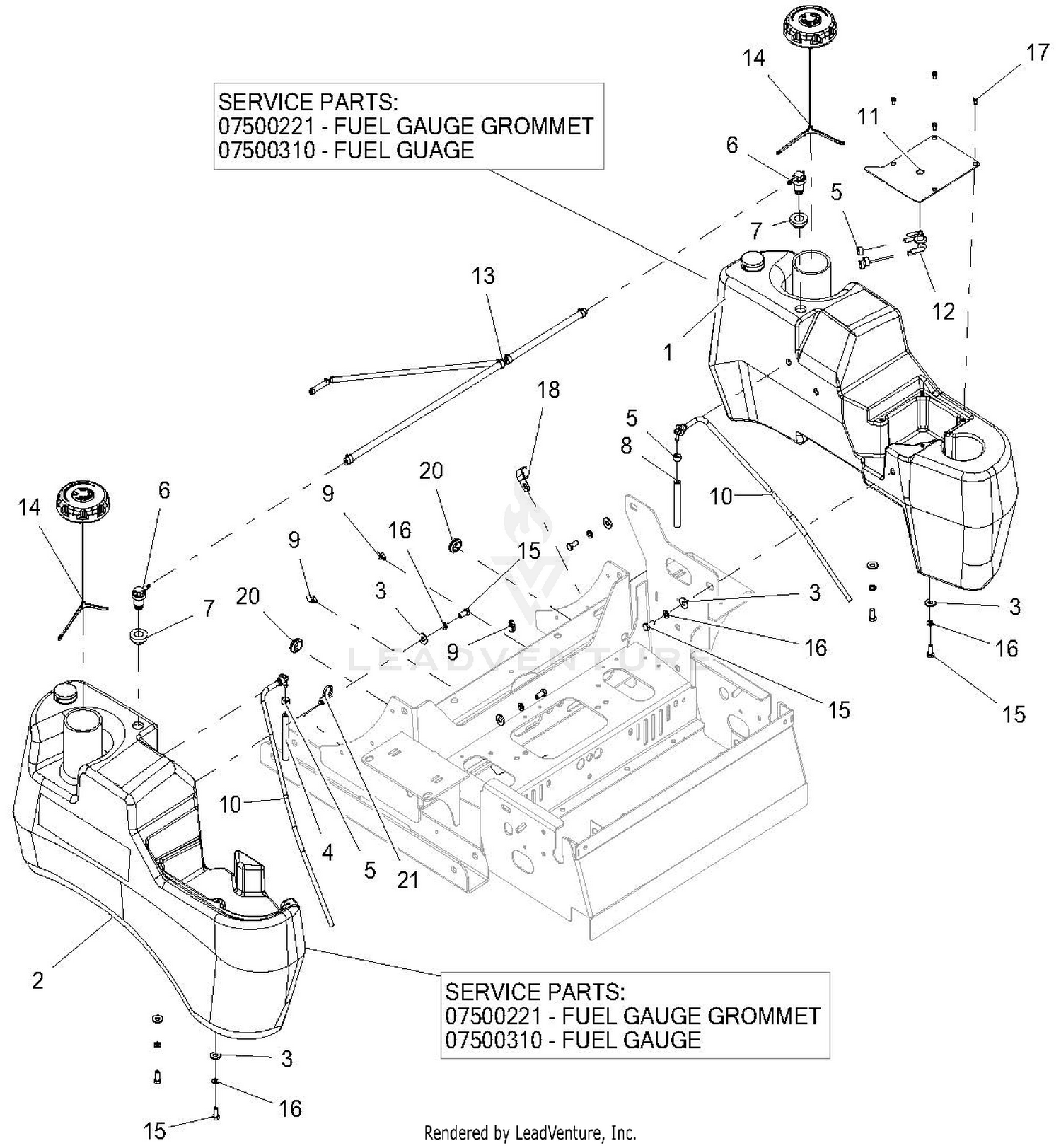

| Ref | Part Number | Description |
|---|
| 1 |
04722500 |
ASSY-LH LRG TANK W/MCH GAUGE-G Price: $284.95 |
| 2 |
04722600 |
ASSY-RH LRG TANK W/MCH GAUGE-G Price: $283.95 |
| 3 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 5 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 6 |
05185600 |
VALVE, COMBINATION VENT 3/16 This part replaces 04068910. Price: $16.45 |
| 7 |
04082700 |
GROMMET, REMOTE VENT NITRILE Price: $3.45 |
| 10 |
04320800 |
ASS'Y,LARGE TANK FUEL PICKUP Price: $30.95 |
| 11 |
04396053 |
PLATE, FUEL VALVE MOUNTING Price: $24.95 |
| 12 |
30193300 |
VALVE-STEEL FUEL - WITH MAGNET This part replaces 04426400. Price: $34.95 |
| 13 |
04458300 |
PT400, FUEL LINE ASSEMBLY Price: $32.95 |
| 14 |
09190300 |
CAP, FUEL - 3.50 RATCHET INLET VENT This part replaces 04558000. Price: $30.95 |
| 15 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 16 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 17 |
06100211 |
SCR-MCH 10-24X.38 HWHSTAINLESS Price: $2.95 |
| 18 |
06900036 |
CLAMP, CUSHIONED STEEL .75 Price: $5.45 |
| 20 |
07500031 |
GROMMET,RUBBER 5/8 ID/1.13 OD Price: $3.45 |
