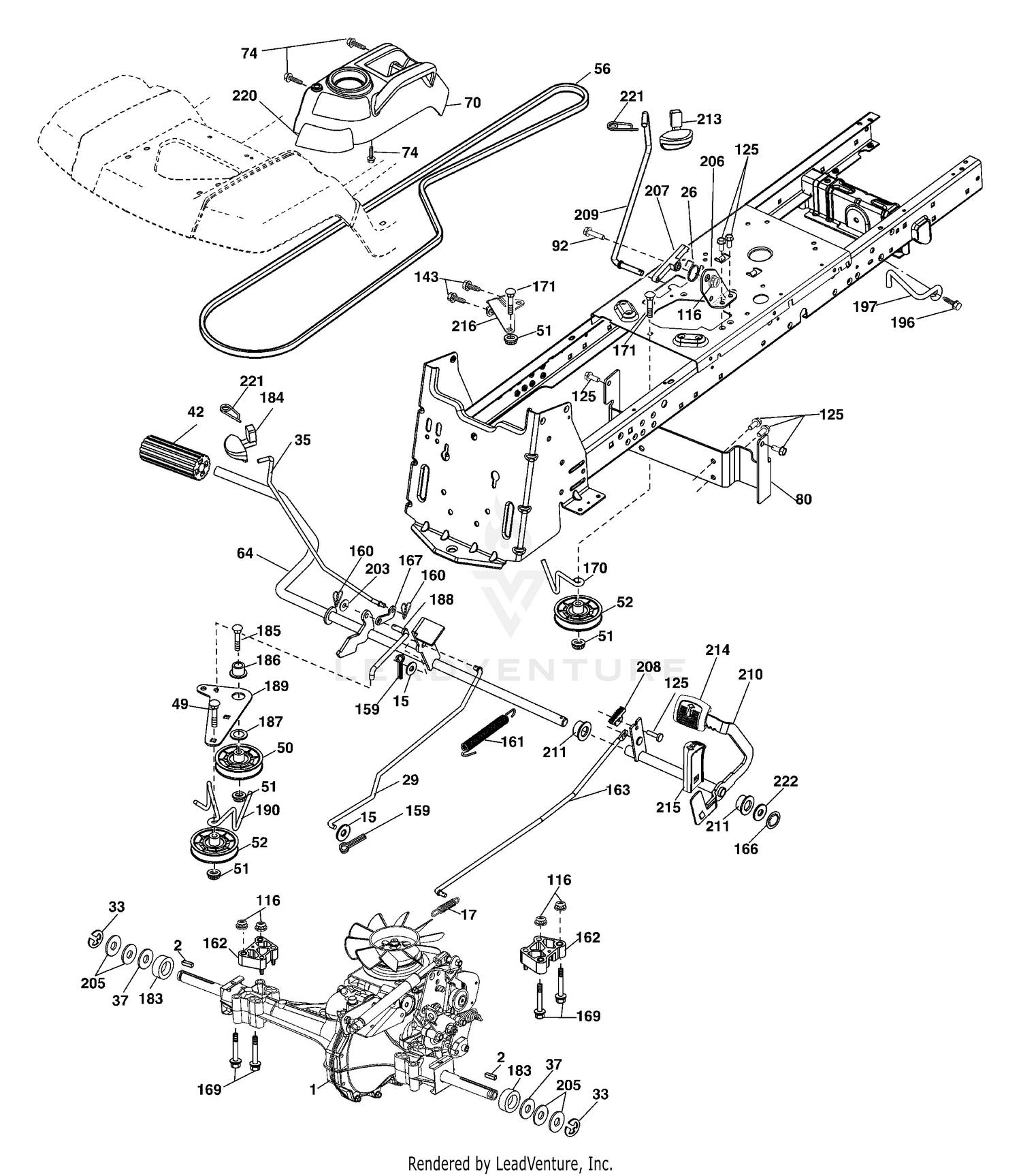

| Ref | Part Number | Description |
|---|
| 1 |
69-2410 |
PLUG Price: $23.90 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
69-2420 |
O-RING Price: $4.70 |
| 3 |
69-2450 |
PISTON Price: $125.45 |
| 4 |
69-2440 |
ORIFICE Price: $6.50 |
| 5 |
69-2430 |
SPRING Price: $32.13 |
| 6 |
69-2460 |
CAP Price: $18.22 |
| 7 |
69-2470 |
GASKET Price: $5.11 |
| 8 |
69-2480 |
SCREW Price: $15.00 |
| 9 |
69-2490 |
SPRING Price: $11.84 |
| 10 |
69-2500 |
POPPET Price: $51.44 |
| 11 |
69-2510 |
SEAT Price: $36.78 |
| 12 |
69-2530 |
O-RING Price: $3.74 |
| 13 |
69-2540 |
COVER ASM Price: $749.57 |
| 14 |
69-2340 |
PIN-DOWEL Price: $7.24 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
69-2280 |
IDLER SHAFT ASM Price: $326.17 |
| 16 |
69-2320 |
PLATE-WEAR Price: $21.02 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 17 |
69-2260 |
SEAL-LOAD Price: $45.82 |
| 18 |
69-2270 |
SEAL-LOAD, PRE Price: $37.83 |
| 19 |
69-2350 |
RING-SEALING Price: $25.85 |
| 20 |
69-2250 |
SLEEVE-BEARING Price: $27.27 |
| 21 |
69-2330 |
BODY ASM Price: $319.31 |
| 22 |
354-51 |
WASHER This part replaces 69-2370. Price: $0.47 |
| 23 |
69-2360 |
SCREW Price: $3.84 |
| 24 |
69-2380 |
SCREW Price: $6.18 |
| 25 |
69-2390 |
WASHER Price: $0.85 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 26 |
69-2300 |
RING-RETAINING Price: $1.32 |
| 27 |
69-2310 |
DISCONTINUED Price: Call Us |
| 28 |
69-2290 |
DISCONTINUED SEE NOTES Price: Call Us |
| 29 |
532199467 |
ROD.BRAKE.0610.PEDAL.CONTROL Price: $37.99 |
| 29 |
69-2400 |
DISCONTINUED Price: Call Us |
| 30 |
69-2230 |
FLOW DIVIDER ASM Price: $1,111.57 |
| 31 |
69-2520 |
PLUG-PIPE Price: $5.22 |
| 32 |
69-2240 |
SCREW Price: $4.53 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532140218 |
V-BELT. Price: $49.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
532400507 |
BRKT.STRP.TRQ.LT.HYD.C Price: $12.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT This part replaces 532195403. Price: $9.99 |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99 |
| 163 |
532199000 |
ROD.PEDAL.CONTROL.0510 Price: $27.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532196211. Price: $2.99 |
| 169 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
