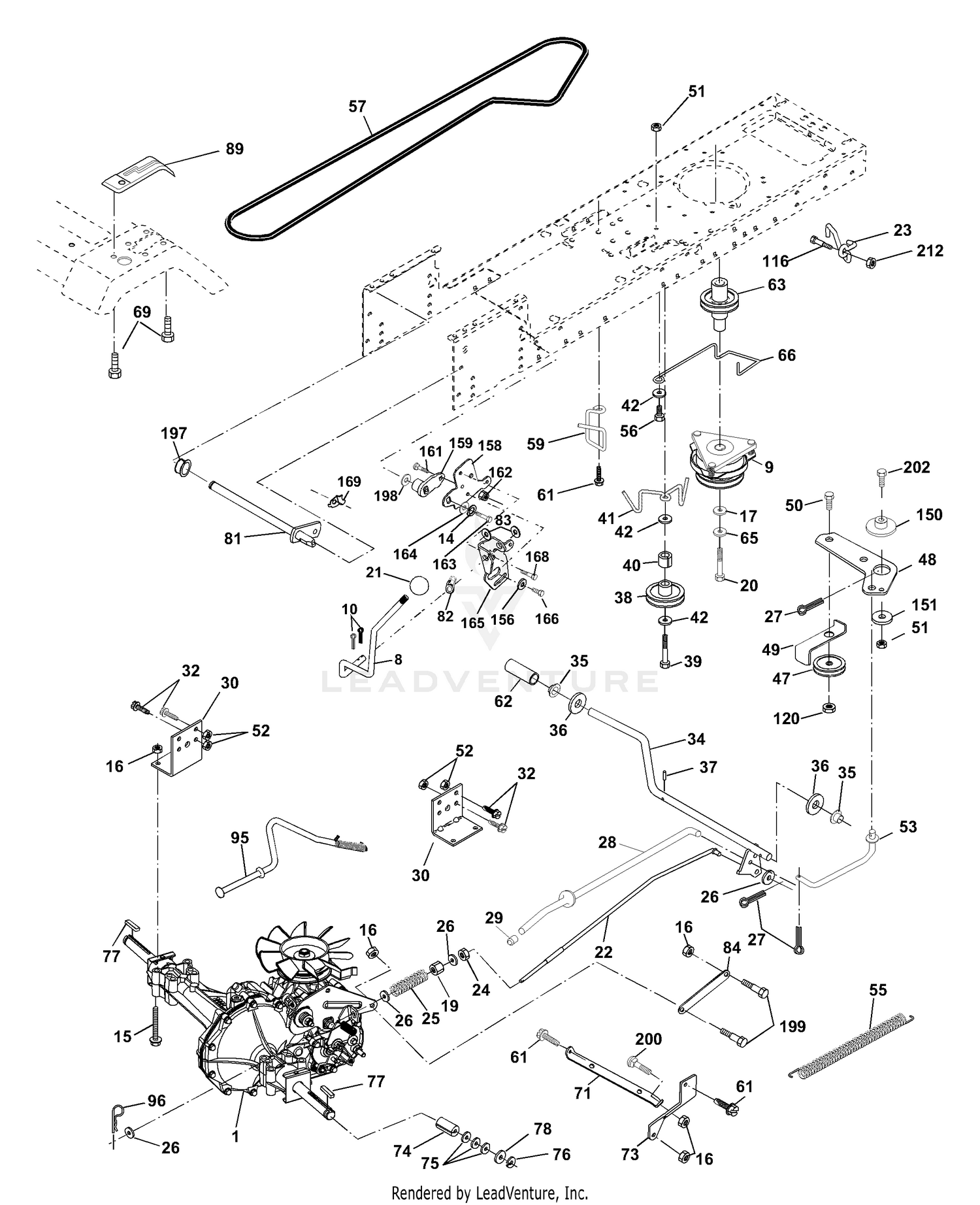

| Ref | Part Number | Description |
|---|
| 1 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 2 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 3 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 4 |
62-7400 |
DECAL Price: $24.54 |
| 5 |
62-5400 |
DISCONTINUED Price: Call Us |
| 6 |
75-9310 |
DISCONTINUED Price: Call Us |
| 7 |
3256-21 |
WASHER-FLAT Price: $0.25 |
| 8 |
532166020 |
ROD SHIFT FENDER Price: $19.99 |
| 9 |
532174367 |
CLUTCH, ELECTRIC Price: $399.99 |
| 9 |
62-7320 |
TRACTION PEDAL STOP WA Price: $65.13 |
| 10 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
62-7350 |
DISCONTINUED Price: Call Us |
| 12 |
76-2200-03 |
FOOTREST-PEDAL, TRACTION This part replaces 76-2200. Price: $42.73 |
| 13 |
76-2260 |
PAD-FOOTREST Price: $8.40 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 14 |
80-4240-03 |
RH FOOTREST ASM This part replaces 80-4240. Price: $99.31 |
| 15 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
32128-25 |
NUT-HF Price: $3.19 |
| 17 |
532126197 |
WASHER Price: $6.99 |
| 18 |
32144-22 |
SCREW Price: $0.75 |
| 19 |
28-0120 |
L.H. HINGE BRACKET Price: $48.24 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
321-5 |
SCREW-HH Price: $0.22 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 21 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 22 |
532169498 |
ROD BRAKE HYDRO Price: $17.99 |
| 22 |
76-0130 |
CHAIN ASSY Price: $10.35 |
| 23 |
532190736 |
BRACKET, ANTI-ROTATION This part replaces 532178289. Price: $24.99 |
| 23 |
72-9540 |
HEAT SHIELD BRACKET Price: $13.76 |
| 24 |
72-4150-03 |
DISCONTINUED This part replaces 72-4150. Price: Call Us |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
321-2 |
SCREW-HH Price: $2.79 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 27 |
66-6120 |
FOOTREST PAD Price: $30.72 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $4.99 |
| 28 |
84-1650 |
DECAL - BRAKE Price: $7.02 |
| 28 |
93-7267 |
DECAL-BRAKE Price: $6.37 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 29 |
72-4360-03 |
LH FOOTREST ASM This part replaces 72-4360. Price: $136.22 |
| 30 |
531149601 |
SERVICE KIT BRACKET BRKT This part replaces 532169592. Price: $8.99 |
| 30 |
62-7190 |
SPACER-STEEL Price: $3.87 |
| 32 |
57-3210 |
SCREW Price: $2.28 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
83-9800-01 |
GRASS SHIELD-FRONT, LH This part replaces 83-9800. Price: $28.36 |
| 34 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $27.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 35 |
83-8860-01 |
R/H FRT SHIELD This part replaces 83-8860. Price: $20.35 |
| 36 |
3250-50 |
DISCONTINUED Price: Call Us |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532165936 |
PULLEY.FLAT Price: $22.99 |
| 38 |
66-5340-03 |
FRONT GRILLE This part replaces 66-5340. Price: $116.48 |
| 39 |
3217-7 |
NUT-HEX Price: $0.28 |
| 39 |
596564405 |
Bolts This part replaces 874760648. Price: $2.99 |
| 40 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 40 |
532175461 |
SPACER, SPLIT Price: $4.99 |
| 41 |
532175556 |
KEEPER, BELT IDLER Price: $6.99 |
| 41 |
92-1841 |
DISCONTINUED Price: Call Us |
| 42 |
28-0130 |
RH HINGE BRKT Price: $48.24 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 43 |
3229-11 |
SCREW-CARR This part replaces 3229-22. Price: $0.99 |
| 44 |
10-4850 |
COMP SPRING *O Price: $9.19 |
| 45 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
817000616 |
SCREW 3/8-16X1 This part replaces 817060616. Price: $5.99 |
| 57 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER Price: $17.99 |
| 61 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 62 |
532175417 |
PULLEY, ELEC CLUTCH Price: $44.99 |
| 63 |
532175417 |
PULLEY, ELEC CLUTCH Price: $44.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 71 |
532169183 |
STRAP TORQUE LH HYDRO Price: $4.99 |
| 73 |
532169182 |
STRAP TORQUE RH HYDRO Price: $14.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532165596 |
SHAFT ASM CROSS TAPERED Price: $32.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532169594 |
LINK TRANSAXLE Price: $5.99 |
| 89 |
532164892 |
FENDER CONSOLE This part replaces 532166624. Price: $16.99 |
| 95 |
532170201 |
CONTROL ASM. BYPASS HYDRO Price: $8.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 116 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 120 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 150 |
532175456 |
SPACER, RETAINER Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532165494. Price: $5.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 164 |
819091010 |
Washer 5/8 x .281 x 10 Ga Price: $3.15 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW Price: $4.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 198 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $9.99 |
| 199 |
596231101 |
BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99 |
| 200 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 202 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
