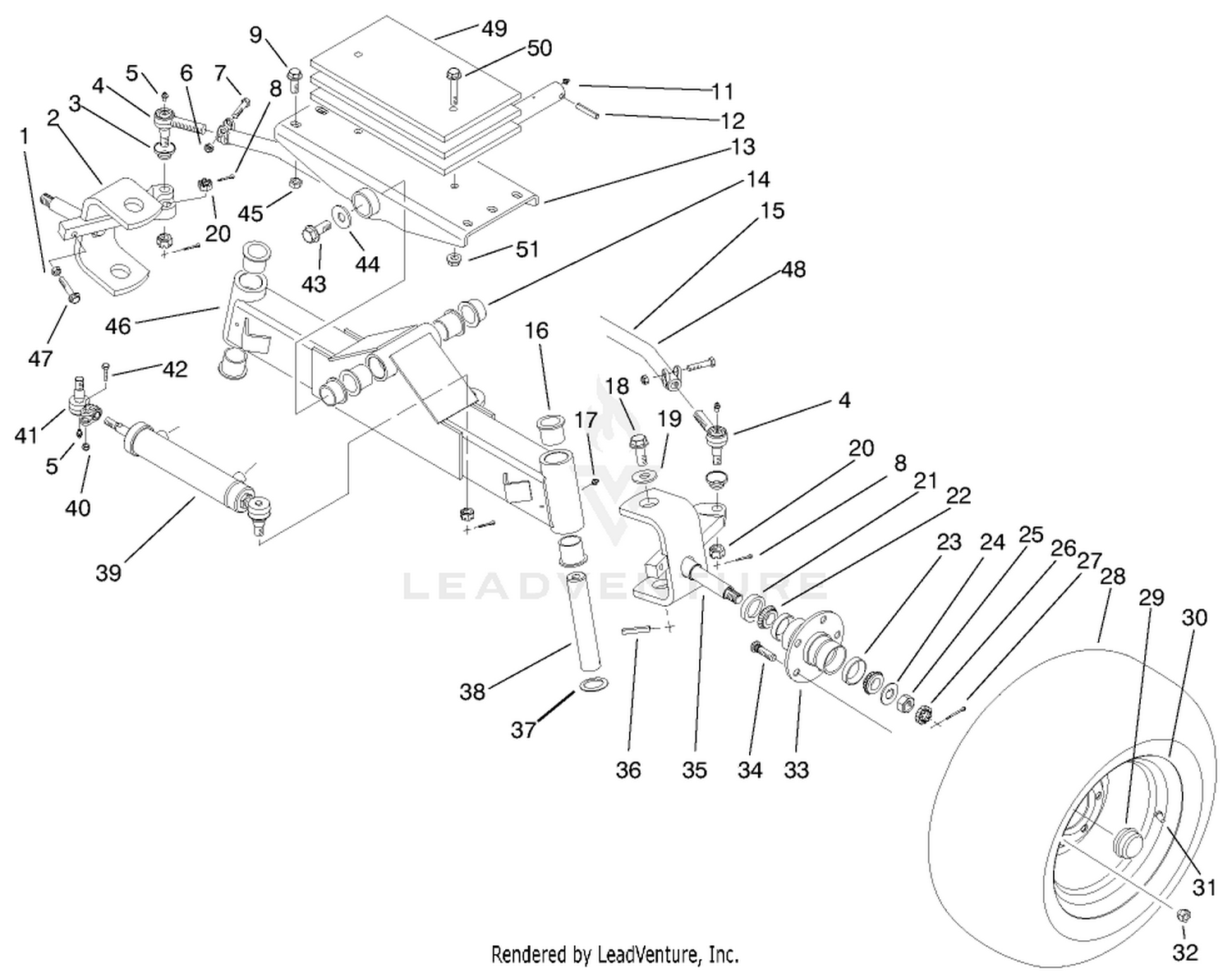

| Ref | Part Number | Description |
|---|
| 1 |
48-7960 |
NUT This part replaces 33015-00. Price: $1.40 |
| 2 |
93-5158 |
DISCONTINUED Price: Call Us |
| 3 |
105-7835 |
SEAL This part replaces 71-4760. Price: $2.76 |
| 4 |
71-4740-03 |
RH TIE ROD END ASM This part replaces 71-4740. Price: $163.79 |
| 5 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
323-9 |
SCREW-HH Price: $1.29 |
| 8 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 9 |
33106-035 |
SCREW-HHF Price: $8.35 |
| 10 |
93-5142 |
PIN-PIVOT, AXLE Price: $238.83 |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 13 |
17-6019 |
AXLE PIVOT ASM This part replaces 95-4411. Price: $354.34 |
| 14 |
93-4510 |
BUSHING-CASTER Price: $6.97 |
| 15 |
104-0193 |
TIE ROD ASM This part replaces 93-5168. Price: $539.80 |
| 16 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 17 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 18 |
33108-035 |
SCREW-HHF Price: $24.13 |
| 19 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 20 |
32136-13 |
NUT-SHH Price: $2.85 |
| 21 |
253-129 |
SEAL Price: $21.73 |
| 22 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 23 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 24 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 25 |
3220-7 |
NUT-JAM Price: $4.09 |
| 26 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 27 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 28 |
74-5560 |
TIRE (20X8-10) 6-PLY Price: $118.04 |
| 30 |
217-122 |
DISCONTINUED Price: Call Us |
| 31 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 32 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 33 |
21-2820 |
HUB Price: $269.34 |
| 34 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 35 |
98-7095 |
LH SPINDLE KIT This part replaces 93-5496. Price: $939.33 |
| 36 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 37 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 38 |
93-5503 |
PIN-PIVOT, SPINDLE Price: $108.53 |
| 39 |
104-0191 |
STEERING CYLINDER ASM This part replaces 93-5502. Price: $814.09 |
| 40 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 41 |
108-1340-03 |
ROD END-BALL JOINT This part replaces 92-5072. Price: $163.94 |
| 42 |
3210-7 |
SCREW-HH Price: $0.61 |
| 43 |
33108-035 |
SCREW-HHF Price: $24.13 |
| 44 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 45 |
33026-00 |
NUT-HEX Price: $1.02 |
| 46 |
93-5121-03 |
AXLE-REAR ASM This part replaces 93-5121. Price: $930.14 |
| 47 |
33115-040 |
SCREW-HH Price: $1.22 |
| 48 |
104-0193 |
TIE ROD ASM This part replaces 93-5169. Price: $539.80 |
| 49 |
93-5983-03 |
PLATE-WEIGHT This part replaces 93-5983. Price: $109.56 |
| 50 |
33106-060 |
SCREW-HHF Price: $9.91 |
