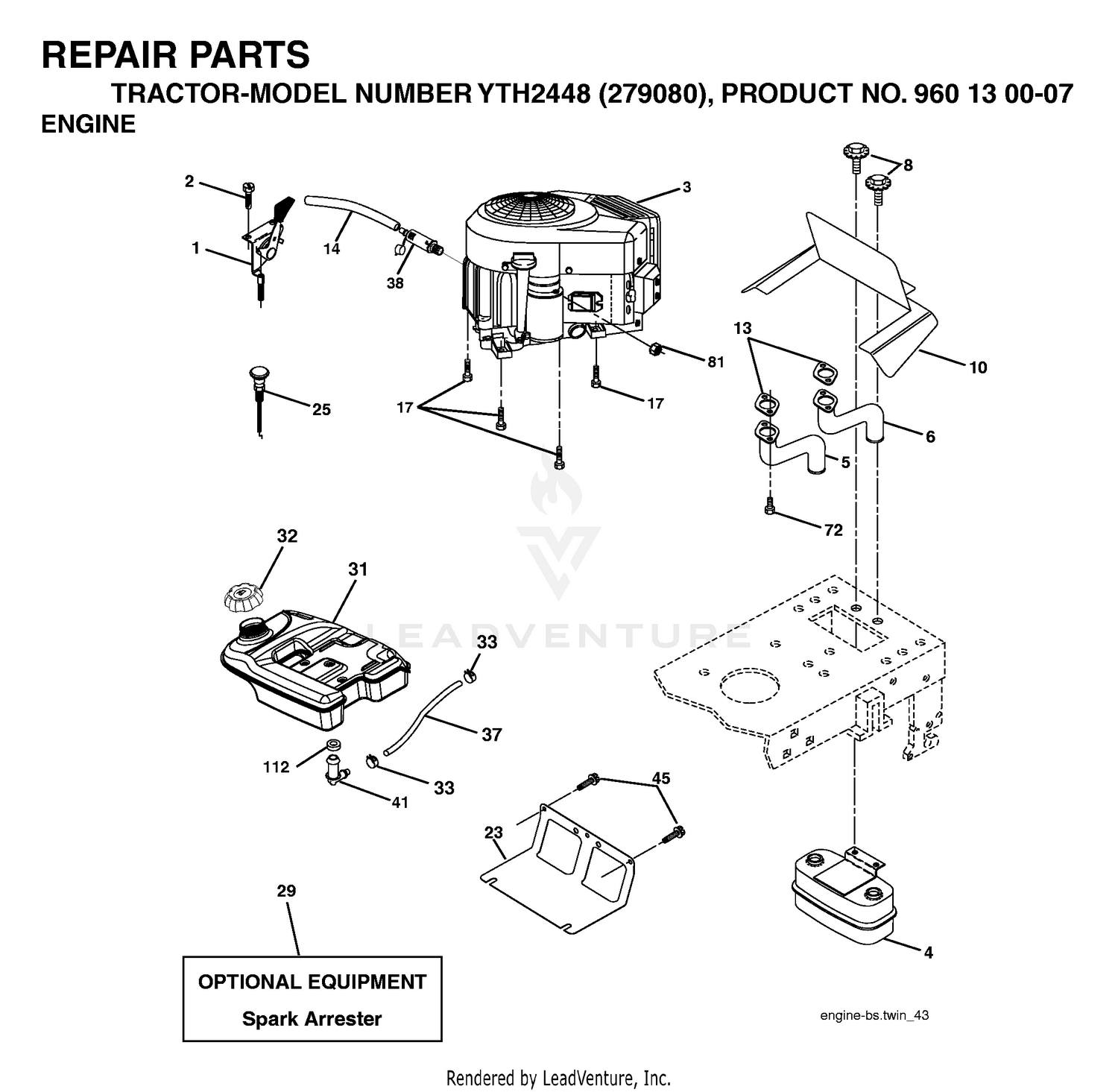

| Ref | Part Number | Description |
|---|
| 1 |
130-8248 |
VAVLE STEM KIT Price: $42.89 |
| 2 |
127-1194 |
BALL-VALVE, 3WAY Price: $67.79 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
130-7317 |
ENDCAP KIT Price: $34.45 |
| 4 |
127-1196 |
WASHER-STEM, VALVE Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
127-1195 |
SEAT-STEM, VALVE Price: $2.82 |
| 5 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 6 |
127-1190 |
FORK-STEM, VALVE Price: $2.66 |
| 6 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532162797. Price: $11.99 |
| 13 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 17 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532132781 |
CHOKE CONTROL This part replaces 532132782. Price: $22.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
917000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: $2.66 |
| 72 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
