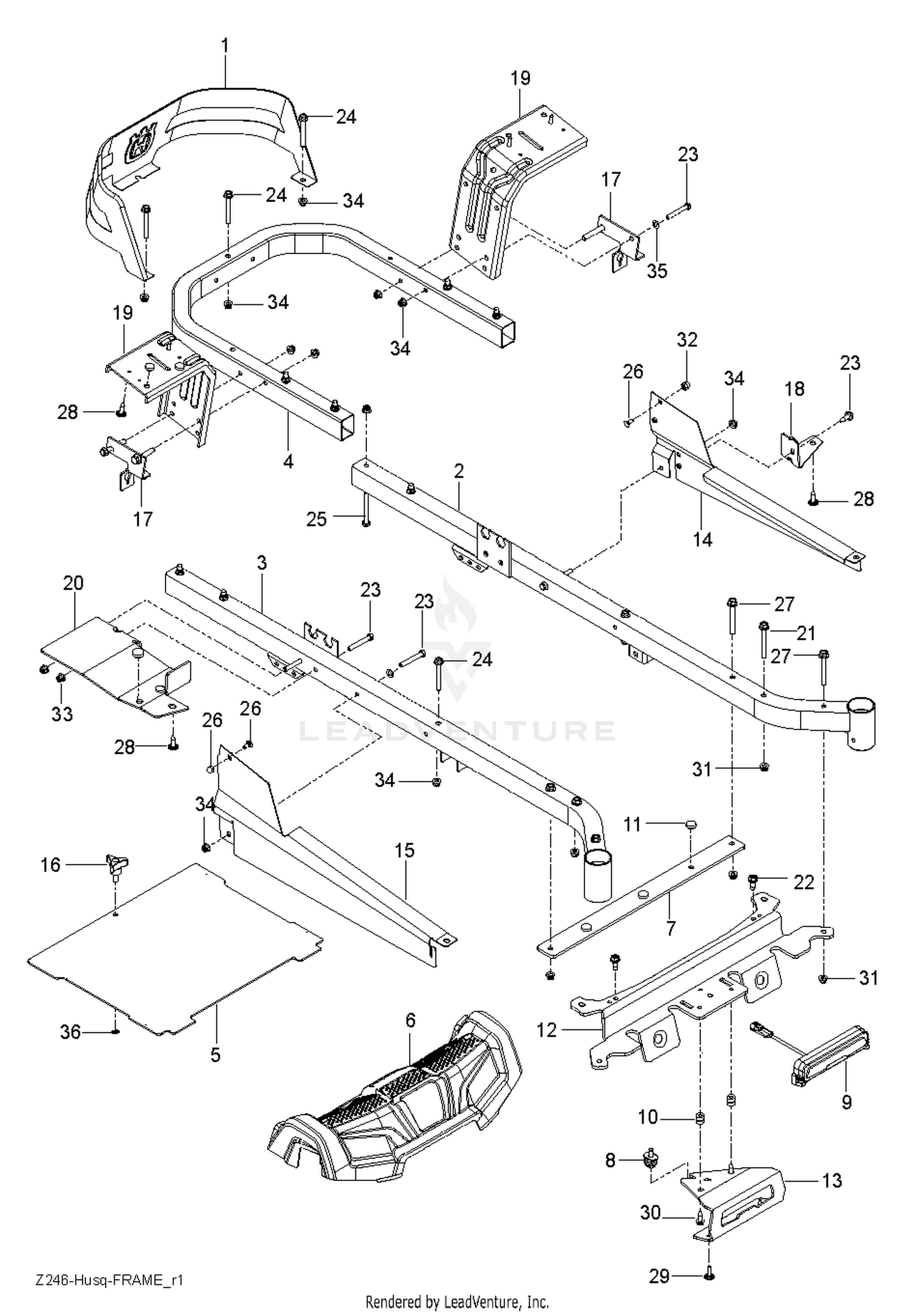

| Ref | Part Number | Description |
|---|
| 1 |
585039802 |
GUARD.ENGINE.HUSQ.RZ.X498 Price: $29.99 |
| 2 |
589283302 |
FRAME.TUBE.RZ.MAIN.WELD.LH.ORG Price: $79.99 |
| 3 |
589283402 |
FRAME.TUBE.RZ.MAIN.WELD.RH.ORG Price: $79.99 |
| 4 |
584991002 |
TUBE.PNT.FRAME.RER.HUSQ.23".RZ Price: $74.99 |
| 5 |
598712401 |
PLATES This part replaces 522842902. Price: $99.99 |
| 6 |
586703801 |
COVER.FOOTREST.REFRESH.ASM Price: $54.99 |
| 7 |
529365102 |
SUPPORT.RZ.FOOTREST.PLATE.X43 This part replaces 585523004. Price: $24.99 |
| 8 |
587546902 |
Screws This part replaces 587546901. Price: $9.99 |
| 9 |
585916701 |
LIGHT.ZTR.LED.ASM Price: $64.99 |
| 10 |
587225201 |
GROMMET.RUBBER.PUSHIN Price: $2.99 |
| 11 |
585989301 |
GROMMET.BUMPER Price: $3.99 |
| 12 |
585523104 |
CROSS.PNT.MEMBER.BLK Price: $84.99 |
| 13 |
587458602 |
BRACKET.SKIDPLTE.LED.RFRSHX417 Price: $11.99 |
| 14 |
585331602 |
COVER.RAIL.RH.RZ.X668 Price: $37.99 |
| 15 |
585331502 |
COVER.RAIL.LH.RZ.X668 Price: $37.99 |
| 16 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 17 |
585474302 |
BRKT ROD.BYPASS.EZT.X431 Price: $8.99 |
| 18 |
585523604 |
SUPPORT.PNT.LH.CONSOLE.FRONT Price: $34.99 |
| 19 |
580501302 |
FENDER.SUPPORT.PNT.X431 Price: $32.99 |
| 20 |
593118304 |
SUPPORT RZ REFRESH RH CONSOLE This part replaces 585523404. Price: $17.99 |
| 21 |
586654302 |
Bolts This part replaces 586654301. Price: $1.99 |
| 22 |
586881101 |
BOLT.5/16-18.THRD.ROLL.SHOULDR Price: $2.99 |
| 23 |
596434801 |
Bolts This part replaces 874780536. Price: $2.99 |
| 24 |
596218601 |
Bolts This part replaces 874780544. Price: $3.99 |
| 26 |
585940001 |
BOLT.CARRIAGE.5/16-18.7/16 Price: $2.99 |
| 27 |
577117702 |
Hardware This part replaces 577117701. Price: $3.99 |
| 28 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 29 |
596434001 |
Screws This part replaces 532421756. Price: $2.99 |
| 30 |
817580520 |
BOLT.5/16-18X1.25 Price: $3.99 |
| 31 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 32 |
585938101 |
NUT ACORN,FLANGED,5/16-18 Price: $2.99 |
| 33 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 34 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 35 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 36 |
583400601 |
PALNUT.5/16" This part replaces 532423063. Price: $2.99 |
