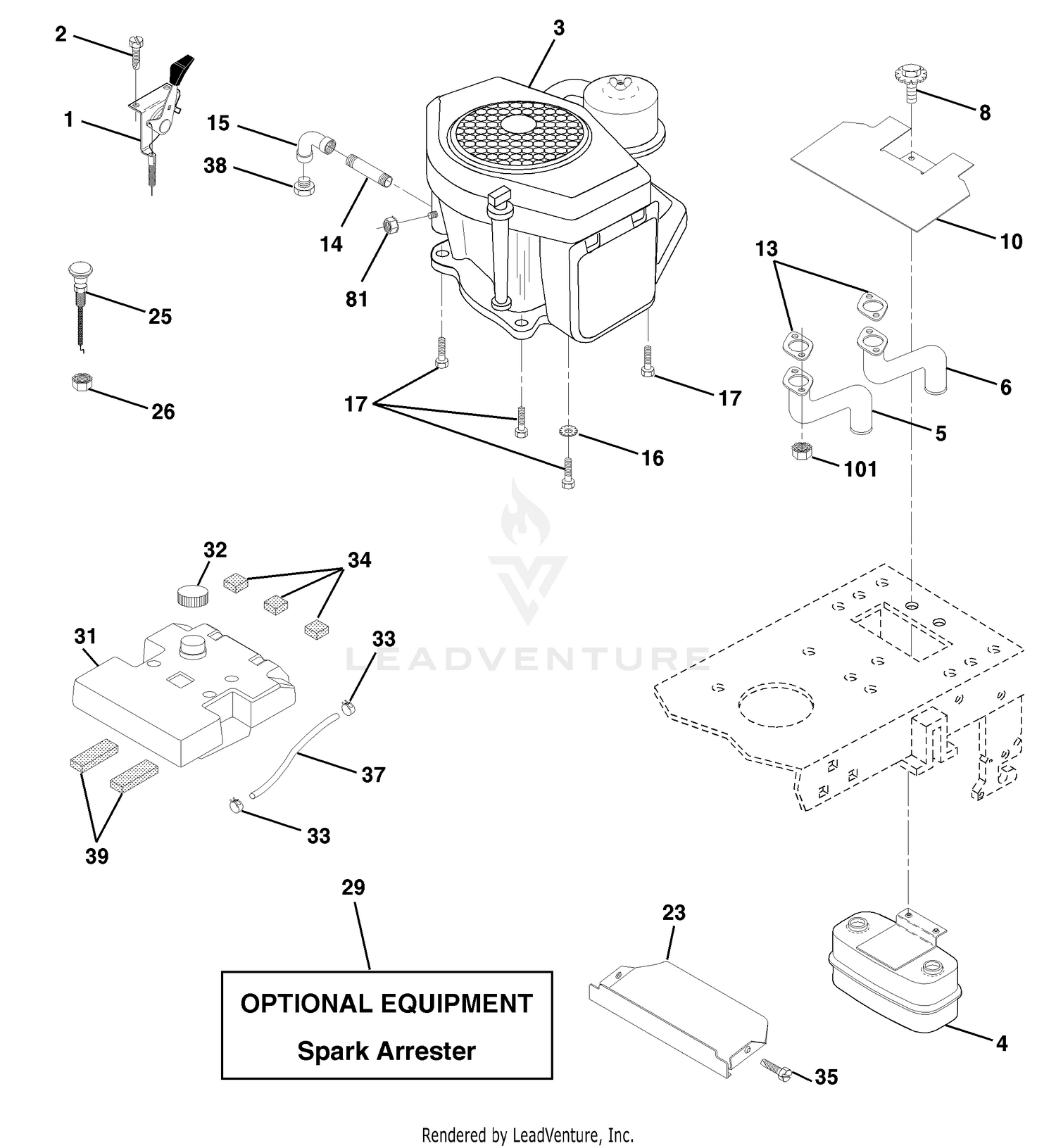

| Ref | Part Number | Description |
|---|
| 1 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 1 |
532170863 |
CONTROL,TH/CH FLAG This part replaces 532155274. Price: $27.99 |
| 2 |
3217-6 |
NUT-HEX Price: $1.19 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
108-3833 |
FILTER-AIR This part replaces 27-7110. Price: $26.73 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
27-7120 |
NUT AND GASKET ASM Price: $15.55 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 6 |
27-7140 |
SKIRT-BAFFLE Price: $85.92 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 7 |
27-7130 |
CLAMP ASM Price: $49.80 |
| 7 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 8 |
27-7150 |
A/C CUP ASM Price: $82.89 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532150176. Price: $4.99 |
| 9 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 10 |
95-1836 |
AIR CLEANER HOSE Price: $43.61 |
| 11 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 12 |
80-3330 |
GASKET Price: $18.48 |
| 13 |
322-10 |
SCREW-HH Price: $0.70 |
| 13 |
532163307 |
GASKET.KOHLER Price: $2.99 |
| 14 |
32107-11 |
NUT-SQUARE Price: $0.22 |
| 14 |
813280336 |
Nipple Pipe 3/8 Npt X 4-1/2" Price: $2.42 |
| 15 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
3258-19 |
SCREW Price: $0.42 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
27-7100 |
AIR CLEANER ASM Price: $323.10 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 18 |
44-8950-03 |
AIR CLEANER TUBE This part replaces 44-8950. Price: $53.15 |
| 19 |
115-8155 |
DECAL-WARNING This part replaces 93-7275. Price: $5.90 |
| 20 |
27-7180 |
CAP Price: $70.51 |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
77-3180 |
SPACER Price: $9.09 |
| 23 |
532159880 |
PROTECTOR Price: $7.99 |
| 25 |
532145996 |
CONTROL, CHOKE Price: $19.99 |
| 26 |
873920600 |
Nut, Keps 3/8-24 Unf Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532157103 |
TANK.FUEL(3.5.GAL) Price: $69.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 37 |
587044808 |
HOSE.1/4".LOW.PERM.FUEL.LN.8" This part replaces 532124923. Price: $5.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
