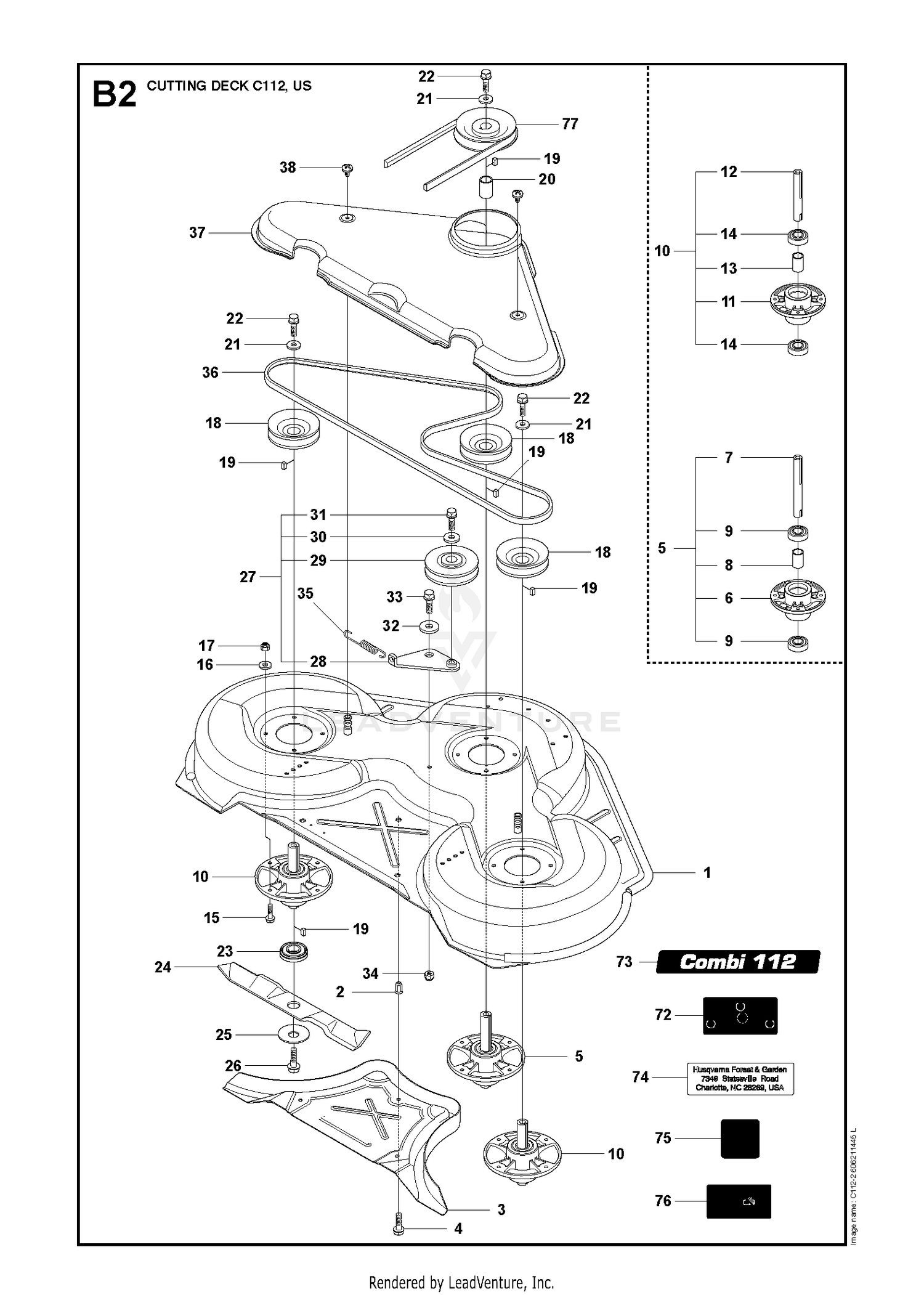

44"/112CM CUTTING DECK
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 323-14 | SCREW-HH Price: $1.34 |
| 1 | 574209501 | CUTTING DECK Price: $229.99 |
| 2 | 131-1821 | MOUNT-ENGINE Price: $105.39 |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 119-2134-01 | BRACKET-MOUNT, REAR Price: $31.36 |
| 3 | 544449301 | PLUG Price: $69.99 |
| 4 | 323-20 | SCREW-HH Price: $1.28 |
| 4 | 506570104 | BOLT Price: $4.99 |
| 5 | 322-4 | SCREW-HH Price: $0.35 |
| 5 | 576384101 | BLADE HOUSING ASSY Price: $84.99 |
| 6 | 121-9076 | MOUNT-ENGINE Price: $37.76 |
| 6 | 576384201 | BEARING HOUSING Price: $29.99 |
| 7 | 110-4631 | TUBE-SPACER Price: $9.91 |
| 7 | 576384301 | SHAFT Price: $29.99 |
| 8 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 9 | 87-5100 | WASHER-SNUBBING Price: $3.46 |
| 10 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 576384102 | BLADE HOUSING ASSY Price: $79.99 |
| 11 | 323-7 | SCREW-HH Price: $0.65 |
| 11 | 576384201 | BEARING HOUSING Price: $29.99 |
| 12 | 133-8900-01 | FRAME Price: $3,410.17 |
| 12 | 576384302 | SHAFT Price: $21.99 |
| 13 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 14 | 738230434 | BEARING Price: $17.99 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 506922101 | PULLEY Price: $29.99 |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 544068002 | SPACER Price: $9.99 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 24 | 504188110 | BLADE Price: $32.99 |
| 25 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 27 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 31 | 506558302 | BOLT Price: $3.99 |
| 32 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 33 | 725245171 | SCREW Price: $2.08 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 594978001 | BELT This part replaces 589514601. Price: $59.99 |
| 37 | 544096203 | BELT COVER C112 HUSQVARNA-GREY This part replaces 544096201. Price: $44.99 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 544238105 | LABEL Price: $3.99 |
| 74 | 506983901 | DECAL Price: $3.99 |
| 75 | 535437401 | DECAL Price: $3.99 |
| 76 | 574510001 | DECAL Price: $2.99 |
| 77 | 506778601 | PULLEY Price: $49.99 |
