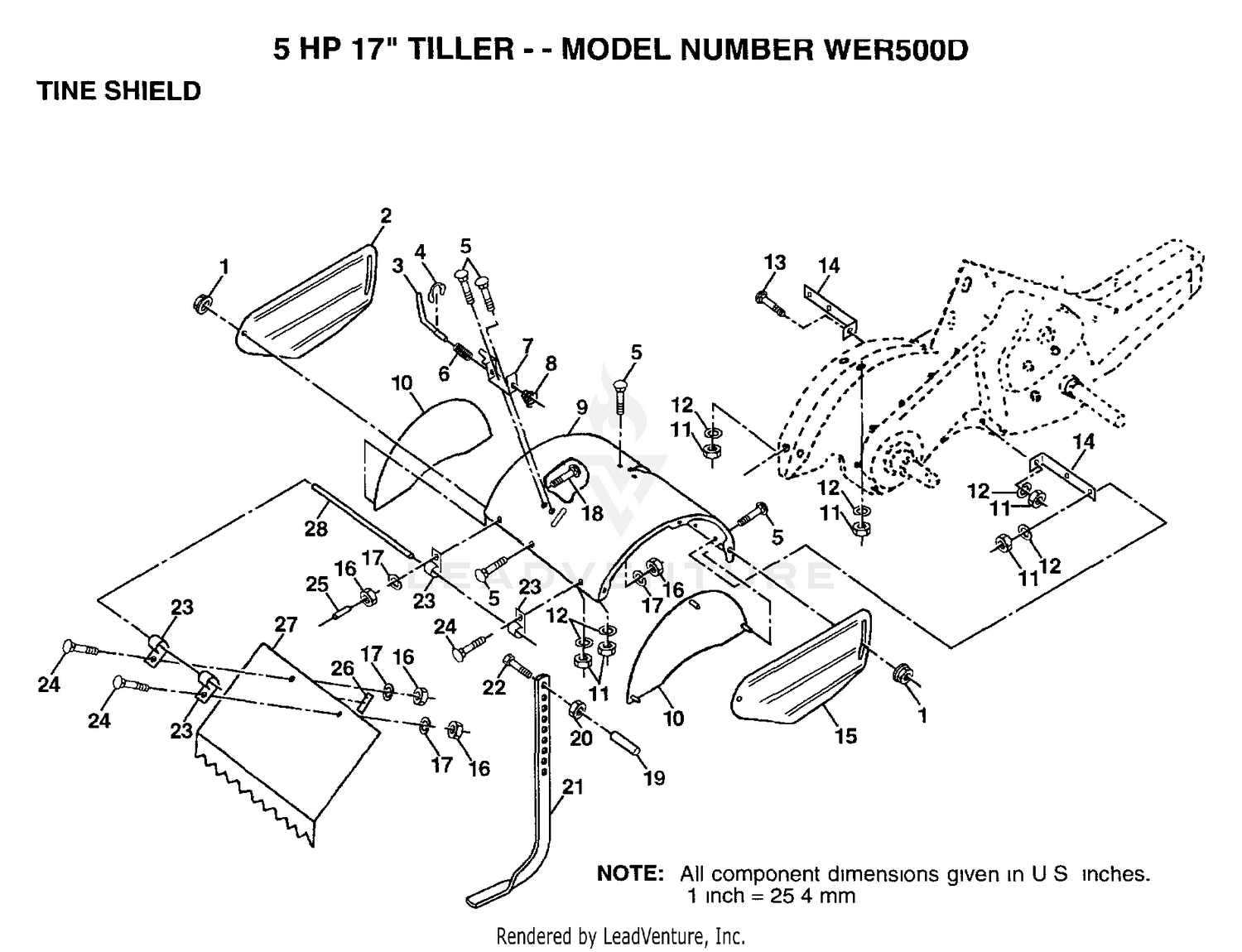

| Ref | Part Number | Description |
|---|
| 1 |
98000129 |
NUT Price: Call Us |
| 2 |
104086X419 |
SHIELD.SD.OUT.LH Price: Call Us |
| 2 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 3 |
8393J |
STAKE PIN TI Price: Call Us |
| 3 |
85-4730 |
DECAL-ONLY, HYD OIL Price: $2.46 |
| 4 |
12000036 |
KLIP RING TI Price: Call Us |
| 4 |
93-7836 |
DECAL-PEDAL, TRACTION This part replaces 27-7320. Price: $14.38 |
| 5 |
70-2200 |
DECAL Price: $5.09 |
| 5 |
72140506 |
BOLT Price: Call Us |
| 6 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 6 |
8394J |
SPRING TI Price: Call Us |
| 7 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 7 |
8392J |
LATCH BRACKET TI Price: Call Us |
| 8 |
109230X |
SPRING CRT Price: Call Us |
| 8 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 9 |
102326X419 |
SHLD TINE Price: Call Us |
| 9 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 10 |
104085X419 |
SUB= 104085X366 Price: Call Us |
| 10 |
32128-21 |
NUT-HF Price: $0.39 |
| 11 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 11 |
98-3866-01 |
BRACE-UPPER Price: $164.20 |
| 12 |
10040500 |
LOCKWASHER Price: Call Us |
| 12 |
98-3865-01 |
BRACE-RIGHT, LOWER Price: $104.46 |
| 13 |
72110510 |
BOLT Price: Call Us |
| 13 |
98-3864-01 |
BRACE-LEFT, LOWER Price: $107.85 |
| 14 |
124343X |
BRKT SHIELD TINE Price: Call Us |
| 14 |
3290-472 |
NUT-CLINCH Price: $5.04 |
| 15 |
104101X419 |
SHIELD.SD.OUT.RH Price: Call Us |
| 15 |
256-126 |
BUSHING Price: $9.36 |
| 16 |
73220400 |
SUB= 50675 Price: Call Us |
| 17 |
10040400 |
LOCKWASHER Price: Call Us |
| 18 |
72040410 |
BOLT Price: Call Us |
| 19 |
102701X |
GRIP CRT Price: Call Us |
| 20 |
73220600 |
NUT.HEX.3/8-16UNC Price: Call Us |
| 21 |
102156X500 |
STAKE DEPTH 16 Price: Call Us |
| 22 |
74930632 |
BOLT Price: Call Us |
| 23 |
4440J |
HINGE CRT Price: Call Us |
| 24 |
72140404 |
BOLT Price: Call Us |
| 25 |
6712 |
J VINYL CAP TI Price: Call Us 6712 J |
| 26 |
109227X |
PAD IDLER TI Price: Call Us |
| 27 |
102695X419 |
SUB= 102695X366 Price: Call Us |
