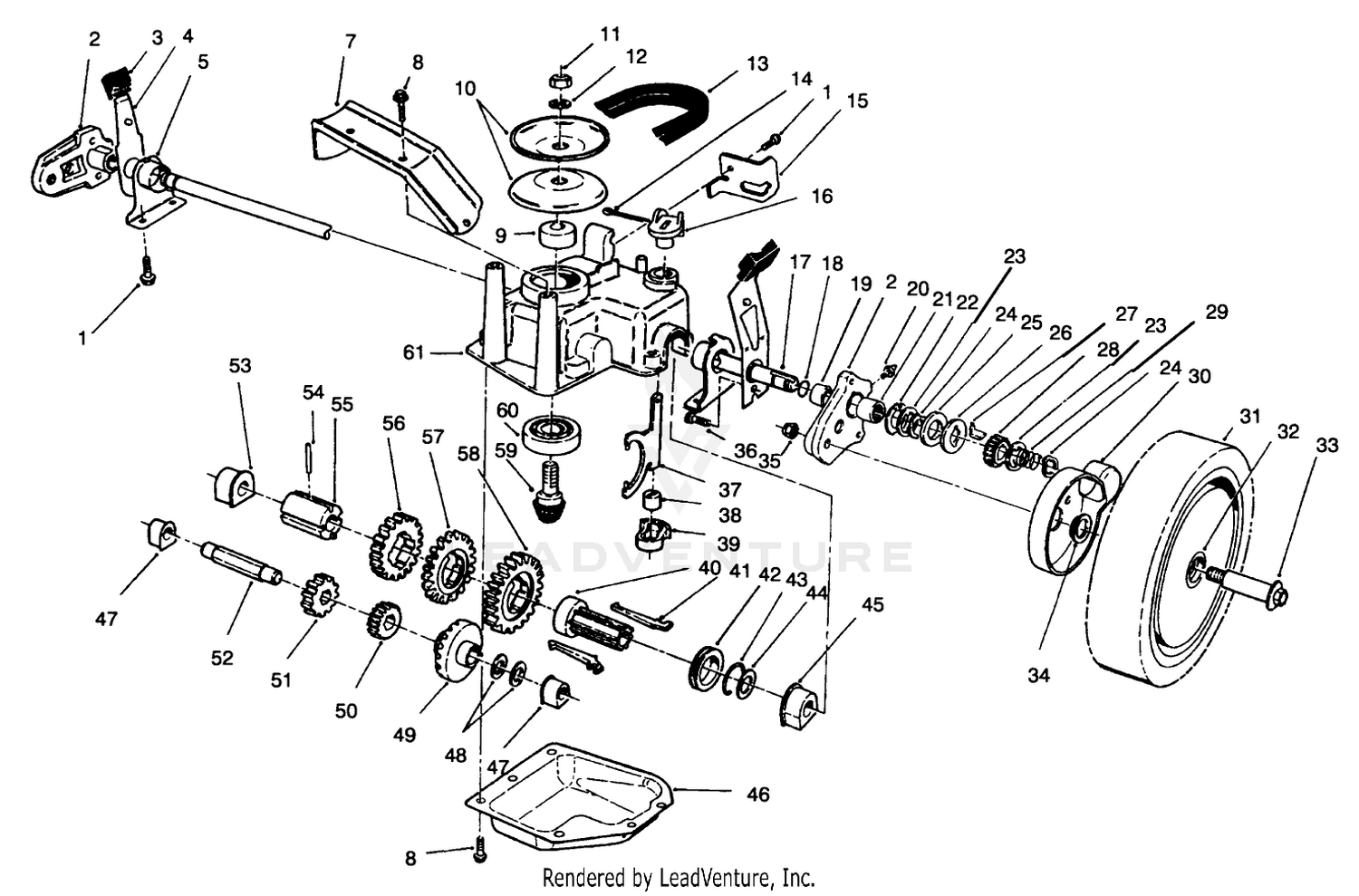

| Ref | Part Number | Description |
|---|
| 1 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 2 |
65-5042 |
Pivot Arm Assembly (Incl. Ref. #19-21) Price: $36.68 |
| 3 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 4 |
65-5440 |
SPRING ARM ASM Price: $15.47 |
| 5 |
66-0360 |
CAP-END Price: $5.69 |
| 7 |
65-5190-03 |
BRACKET-GUIDE, BELT This part replaces 65-5190. Price: $12.95 |
| 8 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 9 |
62-6660 |
SPACER Price: $0.79 |
| 10 |
100-1176 |
PULLEY-HALF This part replaces 60-8840. Price: $5.58 |
| 11 |
3296-5 |
NUT-HEX Price: $3.09 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
66-0210 |
V-BELT Price: $17.50 |
| 14 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 15 |
76-2930 |
DISCONTINUED Price: Call Us |
| 16 |
76-0920 |
LEVER-SHIFT Price: $4.24 |
| 17 |
65-4770 |
SHAFT-OUTPUT Price: $102.36 |
| 18 |
237-153 |
O-RING Price: $2.29 |
| 19 |
70-9760 |
BUSHING Price: $3.14 |
| 20 |
302-56 |
FITTING-GREASE Price: $3.69 |
| 21 |
117-3500 |
BEARING-CAGED NEEDLE ROLLER This part replaces 48-2060. Price: $4.69 |
| 22 |
65-4730 |
WASHER-ARM, PIVOT Price: $2.17 |
| 23 |
65-4740 |
WASHER-THRUST, KEYED Price: $2.17 |
| 24 |
65-2720 |
RING-RETAINING,CLIP Price: $0.99 |
| 25 |
65-4710 |
RING-FRICTION Price: $2.17 |
| 26 |
65-4760 |
WASHER-CLUTCH Price: $1.08 |
| 27 |
139-6644 |
KEY-ROCKING, L.H. This part replaces 66-6050. Price: $5.46 |
| 28 |
65-4750 |
GEAR-PINION Price: $8.74 |
| 29 |
65-4720 |
SPRING-COMPRESSION Price: $1.08 |
| 30 |
74-1660 |
COVER-WHEEL Price: $5.45 |
| 31 |
14-9959 |
WHL & TIRE ASSEMBLY Price: $28.44 |
| 32 |
27-6250 |
BUSHING Price: $2.17 |
| 33 |
27-6231 |
WHEEL BOLT Price: $3.28 |
| 34 |
74-1670 |
SPACER-COVER, WHEEL Price: $4.45 |
| 35 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 36 |
65-5220 |
SCREW-HSH, THREAD FORMING Price: $3.09 |
| 37 |
60-8870 |
YOKE-SHIFT Price: $16.30 |
| 38 |
29-9570 |
BUSHING-YOKE Price: $7.60 |
| 39 |
60-8810 |
RETAINER-FORK, SHIFT Price: $4.24 |
| 40 |
76-0780 |
SLEEVE-KEY, SHIFT Price: $3.99 |
| 41 |
76-0760 |
KEY-SHIFT Price: $7.98 |
| 42 |
76-0770 |
COLLAR-SHIFT Price: $12.68 |
| 43 |
65-5250 |
CLIP-SPRING Price: $0.48 |
| 44 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 45 |
60-8770 |
BUSHING-OUTPUT Price: $4.49 |
| 46 |
60-8730 |
Cover-Gearcase Price: Call Us |
| 47 |
60-8750 |
BUSHING Price: $3.96 |
| 48 |
36-4791 |
WASHER-THRUST Price: $0.77 |
| 49 |
104-7668 |
GEAR-15T SPUR, 37T BEVEL This part replaces 55-3760. Price: $19.99 |
| 50 |
55-3780 |
PINION-20T Price: $23.45 |
| 51 |
55-3800 |
PINION-25T Price: $26.68 |
| 52 |
614696 |
SHAFT-INTERMEDIATE This part replaces 60-8800. Price: $62.72 |
| 53 |
60-8850 |
BUSHING Price: $4.72 |
| 54 |
32121-120 |
PIN-SPRING Price: $1.00 |
| 55 |
60-8790 |
SLEEVE-GEAR Price: $33.82 |
| 56 |
55-3810 |
GEAR-39T Price: $33.46 |
| 57 |
55-3790 |
GEAR-44T Price: $41.69 |
| 58 |
55-3770 |
GEAR-49T Price: $41.69 |
| 59 |
104-7667 |
GEAR-PINION, BEVEL This part replaces 60-8890. Price: $10.46 |
| 60 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 61 |
60-8710 |
CASE-GEAR, UPPER Price: $110.35 |
