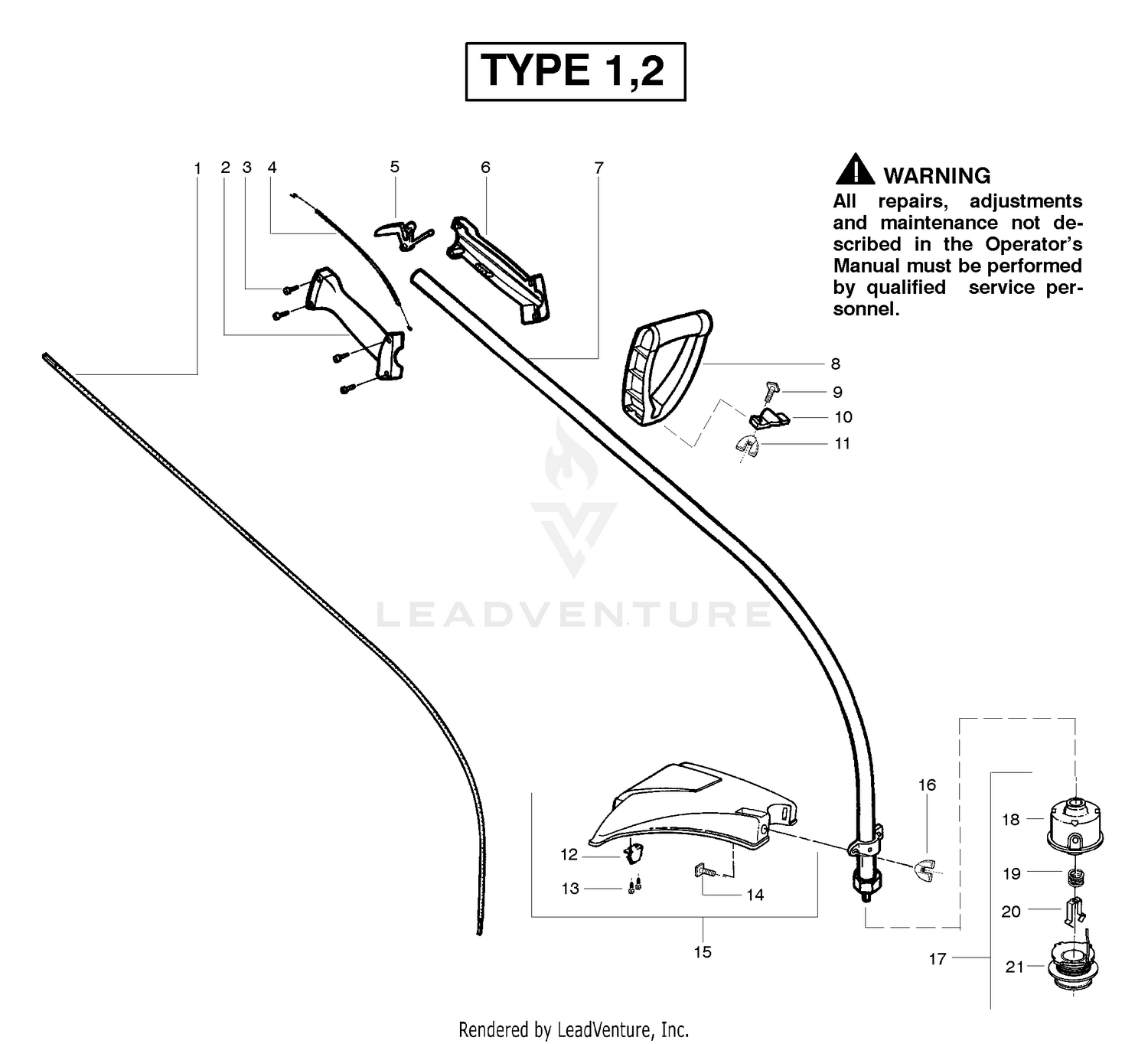

| Ref | Part Number | Description |
|---|
| 0 |
640342 |
CARBURETOR This part replaces 632732. Price: $76.00 |
| 1 |
530095803 |
Shaft-Flex Price: $5.99 |
| 1 |
632538 |
SHAFT & LEV Price: $5.16 |
| 2 |
530038581 |
Throttle Hsg. (Right) Price: $2.99 |
| 3 |
530016349 |
Screw-Throttle Hsg. Price: $1.99 |
| 4 |
530071548 |
Assy-Throttle Cable Price: $3.99 |
| 5 |
530038682 |
Trigger Price: $1.99 |
| 6 |
530038580 |
Throttle Hsg. (Left) Price: $2.99 |
| 6 |
631621 |
SHUTTER Price: $1.20 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 8 |
530038708 |
Handle-Assist Price: $1.32 |
| 9 |
530015820 |
Bolt-Handle/Shield Price: $1.99 |
| 10 |
530094742 |
Clamp-Handle Price: $2.99 |
| 10 |
632734 |
SHAFT & LEV Price: $4.71 |
| 11 |
530091373 |
Nut This part replaces 530016118. Price: $1.99 |
| 12 |
530052286 |
Line Limiter Price: $1.54 |
| 13 |
530015886 |
Screw-Line Limiter Price: $1.99 |
| 14 |
530015820 |
Bolt-Handle/Shield Price: $1.99 |
| 14 |
631815 |
SHUTTER Price: $1.20 |
| 15 |
630735 |
SPRING Price: $1.25 |
| 16 |
530091373 |
Nut This part replaces 530016118. Price: $1.99 |
| 16 |
632164 |
FUEL FITTING Price: $5.95 |
| 18 |
530095770 |
Assy-Hub Price: $11.99 |
| 19 |
530401958 |
Spring-Compression Price: $1.99 |
| 20 |
530401957 |
Clip-Retainer-Head Price: $1.99 |
| 21 |
952701678 |
Accy W/E Spool w/Line This part replaces 952711594. Price: $5.95 |
| 25 |
631951 |
FLOAT BOWL Price: $12.35 |
| 26 |
632815 |
SPRING This part replaces 632386. Price: $1.10 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 32 |
27136A |
DRAIN ASSY Price: $5.96 |
| 33 |
27554 |
GASKET Price: $1.05 |
| 40 |
632682 |
NUT Price: $5.16 |
| 44 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
