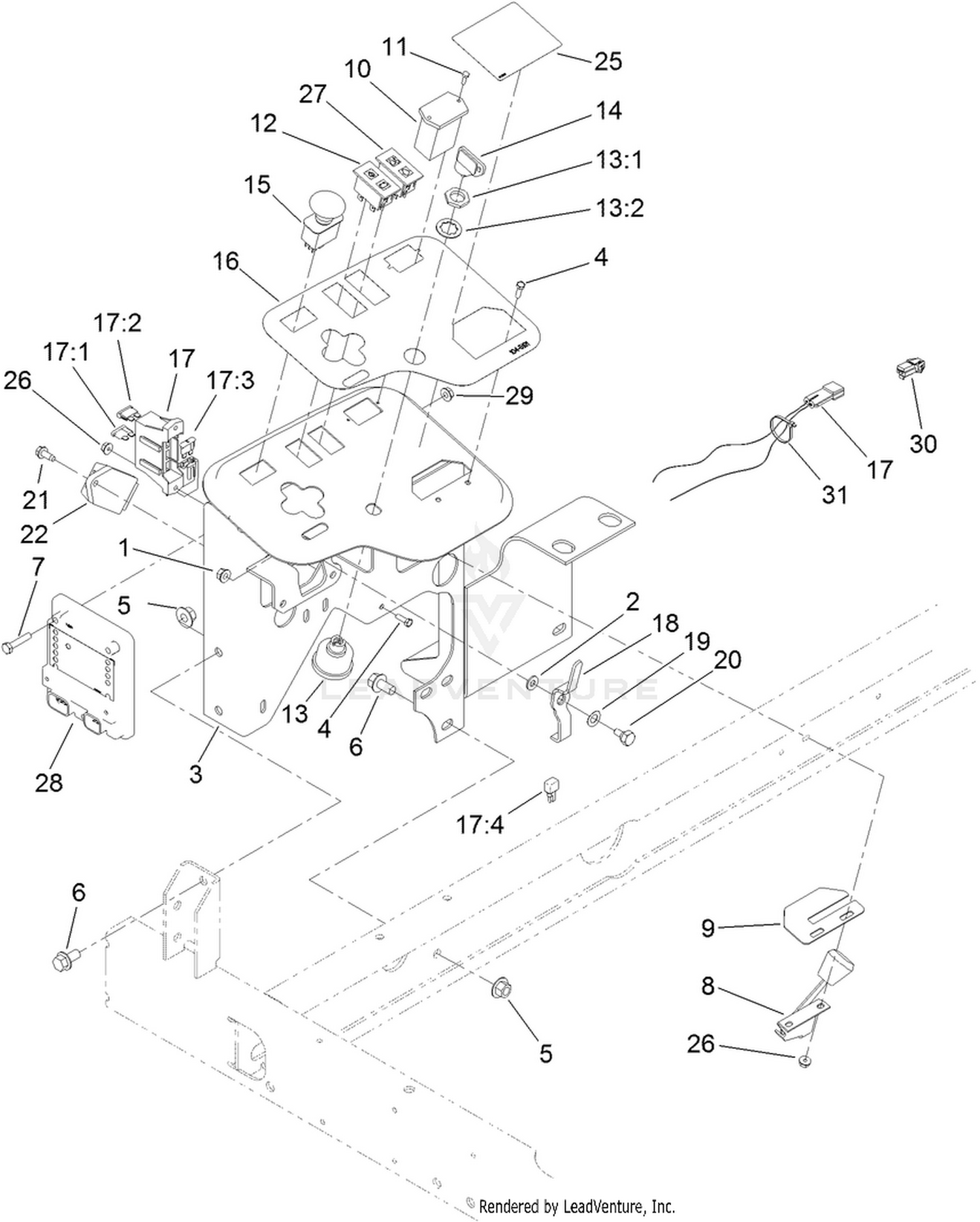

| Ref | Part Number | Description |
|---|
| 1 |
32128-32 |
NUT-HHF Price: $2.69 |
| 2 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 3 |
136-3681-03 |
CONTROL PANEL ASM [BLACK] This part replaces 115-3496-03. Price: $346.62 |
| 4 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 5 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 6 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 7 |
321-8 |
SCREW-HH Price: $0.34 |
| 8 |
110-8795 |
CABLE-THROTTLE Price: $48.23 |
| 9 |
104-0421 |
PLATE-STOP, THROTTLE Price: $15.52 |
| 10 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 11 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 12 |
100-8070 |
LAMP-WARNING Price: $38.50 |
| 13 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 14 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 15 |
93-9999 |
SWITCH-PTO Price: $42.99 |
| 16 |
121-3620 |
DECAL-CONSOLE This part replaces 121-3580. Price: $30.51 |
| 17 |
122-2515 |
HARNESS-WIRE, MAIN This part replaces 122-0258. Price: $738.06 |
| 18 |
99-3401 |
LEVER-LOCK This part replaces 99-3401-03. Price: $7.90 |
| 19 |
3290-477 |
WASHER-CURVED Price: $0.79 |
| 20 |
63-3410 |
SCREW-SHOULDER Price: $3.49 |
| 21 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 22 |
98-7611 |
CONTROLLER-GLOW Price: $316.53 |
| 25 |
99-3558 |
DISCONTINUED Price: Call Us |
| 26 |
3290-148 |
NUT-HF Price: $0.25 |
| 27 |
100-8071 |
LAMP-WARNING Price: $38.50 |
| 28 |
106-9277 |
MODULE-CONTROL, STANDARD Price: $475.18 |
| 29 |
32128-33 |
NUT-HF Price: $0.25 |
| 30 |
104-4875 |
HARNESS-WIRE, JUMPER Price: $37.30 |
