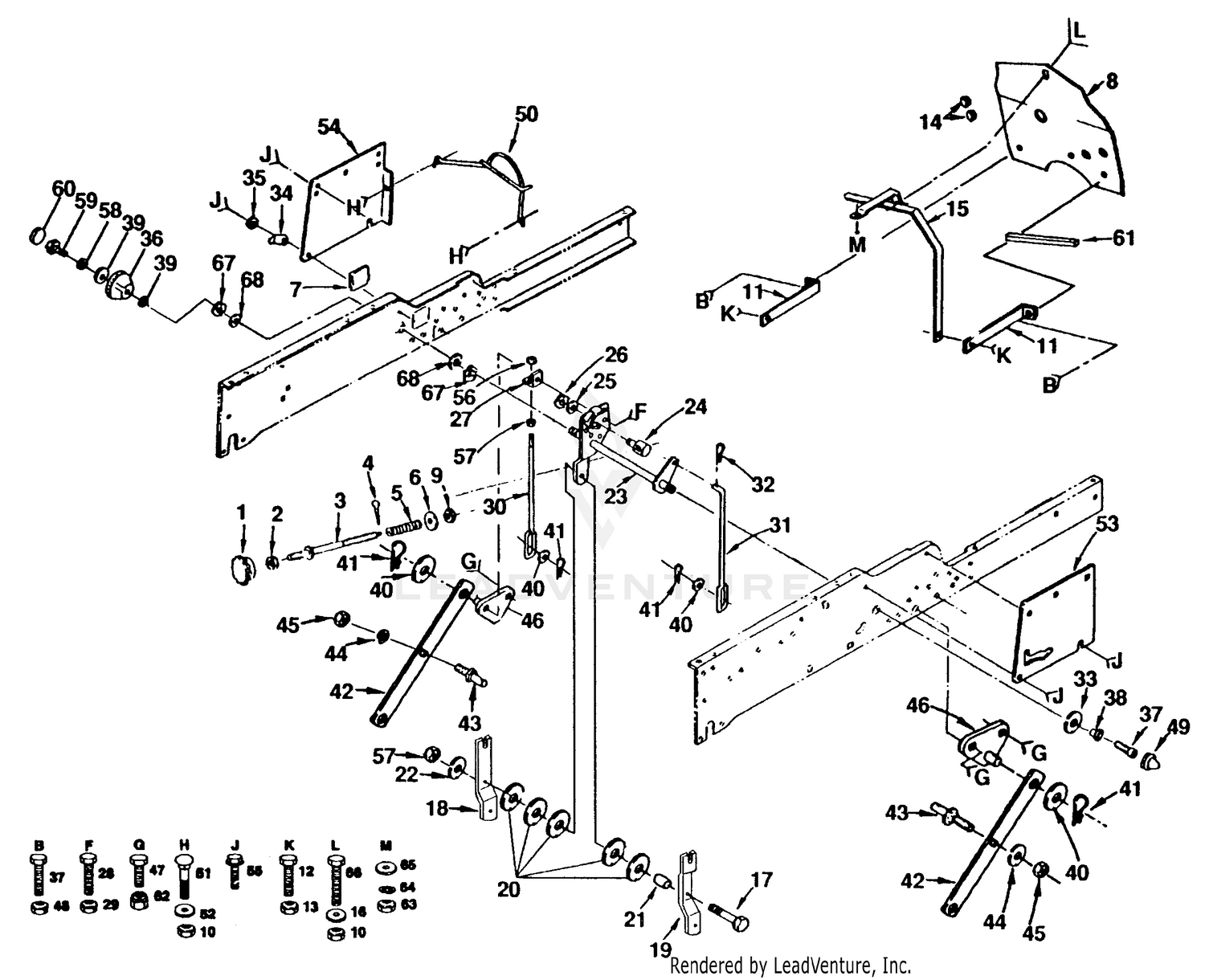

| Ref | Part Number | Description |
|---|
| 1 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 2 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 3 |
532110811 |
ROD ADJ. T Price: $3.68 |
| 4 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 5 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 6 |
819131016 |
WASHER Price: $2.99 |
| 7 |
532121794 |
COVER ACCESS Price: $3.99 |
| 8 |
532122085 |
BASE SHIELD HEAT Price: $20.32 |
| 9 |
532110807 |
NUT T Price: $3.99 |
| 10 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 11 |
532110903 |
BRACKET T Price: $2.38 |
| 12 |
596437001 |
Screws This part replaces 874780408. Price: $2.99 |
| 13 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 14 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 15 |
532128141 |
SUPPORT ASS'Y, DASH Price: $12.33 |
| 16 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 17 |
874520628 |
Bolt 3/8-16 x 1-3/4 Price: $3.99 |
| 18 |
532005948 |
BRACKET T Price: $5.99 |
| 19 |
532005947 |
BRACKET T Price: $5.99 |
| 20 |
532067725 |
WASHER FLUT This part replaces 819172410. Price: $5.99 |
| 21 |
532005949 |
TUBE GT Price: $2.52 |
| 22 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 23 |
532124217 |
SHAFT ASS'Y LIFT Price: $59.99 |
| 24 |
532110810 |
TRUNION LT Price: $17.99 |
| 25 |
819151216 |
Washer 15/32 x 3/4 x 16 Gauge Price: $2.45 |
| 26 |
812000037 |
Klip Ring Price: $4.99 |
| 27 |
532007594 |
BRACKET T Price: $5.46 |
| 28 |
532007901 |
SHOULDER BOLT T Price: $4.99 |
| 29 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 30 |
532007596 |
LINK-LIFT MOWER T Price: $11.99 |
| 31 |
532105503 |
LIFT LINK RH GT Price: $2.82 |
| 32 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 33 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 34 |
532123933 |
HEIGHT INDICATOR PNTR This part replaces 532124763. Price: $3.99 |
| 35 |
532120529 |
WASHER T Price: $2.99 |
| 36 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 37 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 38 |
532105624 |
LIFT HUB-LEVER Price: $12.99 |
| 39 |
819112410 |
WASHER Price: $3.99 |
| 40 |
596040101 |
Washers This part replaces 819171616. Price: $2.99 |
| 41 |
532009135 |
SPRING H This part replaces 532124960. Price: $3.99 |
| 42 |
532105429 |
SUSPENSION ARM GT Price: $11.61 |
| 43 |
532105413 |
PIVOT STUD GT Price: $2.42 |
| 44 |
810040800 |
LOCKWASHER Price: $5.99 |
| 45 |
596433401 |
Nuts This part replaces 873220800. Price: $2.99 |
| 46 |
532105501 |
SUSP BRACKET GT Price: $5.33 |
| 47 |
872140606 |
Bolt, Carriage 3/8-16 x 3/4 Price: $4.99 |
| 48 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 49 |
532109412 |
CAP T Price: $2.99 |
| 50 |
532126651 |
BELT GUARD Price: $31.42 |
| 51 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 52 |
819111610 |
WASHER Price: $4.99 |
| 53 |
532121045 |
PANEL, DASH RH Price: $14.87 |
| 54 |
532121046 |
PANEL, DASH LH Price: $12.66 |
| 55 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 56 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 57 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 58 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 59 |
596580801 |
Bolts This part replaces 874780516. Price: $2.99 |
| 60 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 61 |
532109458 |
FOAM STRIP T Price: $6.12 |
| 62 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 63 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 64 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 65 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 66 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 67 |
812000022 |
E-RING Price: $3.99 |
