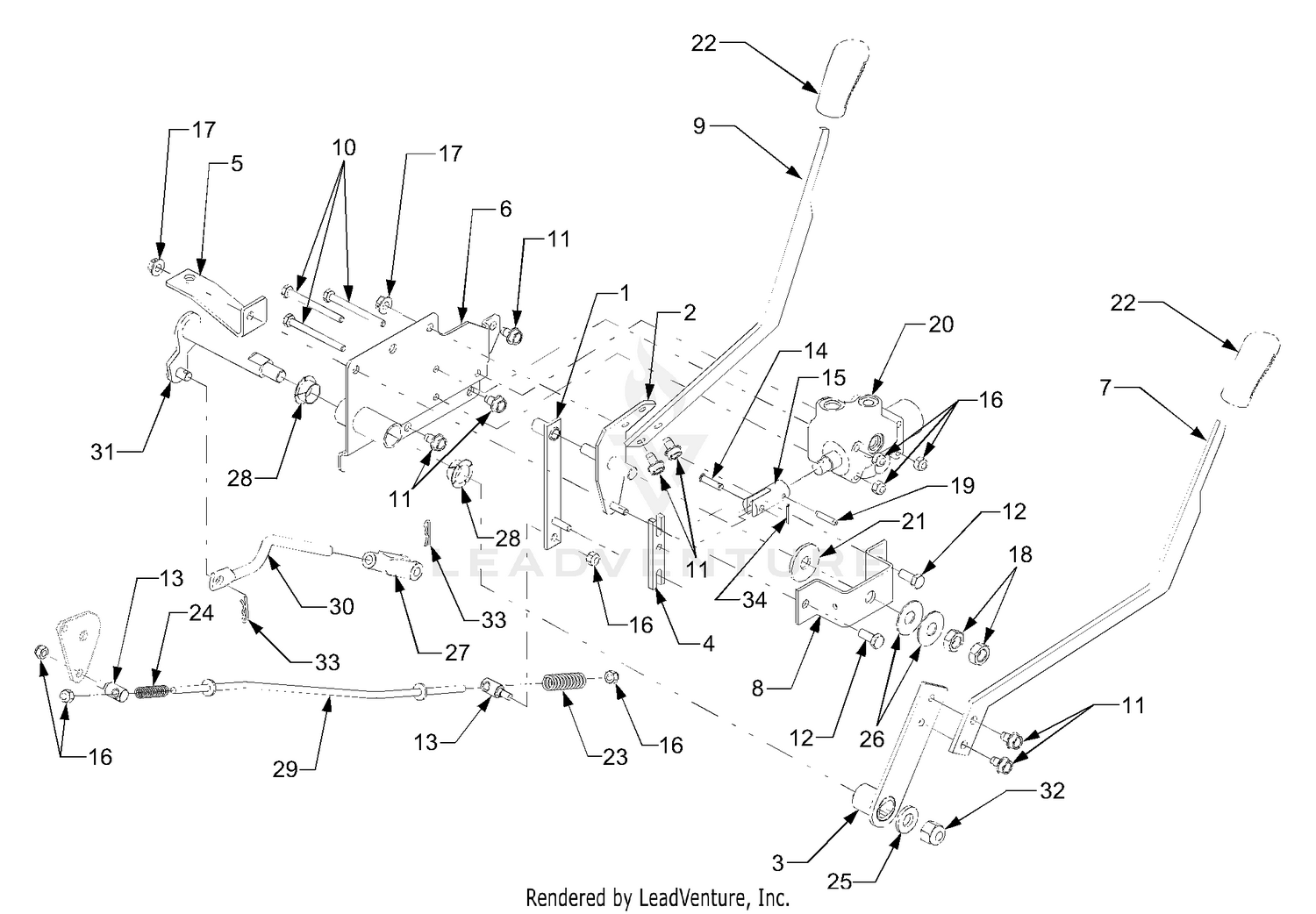

| Ref | Part Number | Description |
|---|
| 1 |
603-0663 |
POSITION LINK Not Available Price: |
| 1 |
99-8344 |
CYLINDER HEAD ASM Price: $1,792.58 |
| 2 |
603-04091 |
LIFT HANDLE PIVOT LINK Not Available Price: |
| 2 |
98-9479 |
BOLT-HEAD, CYLINDER Price: $14.42 |
| 3 |
603-04085 |
HIO SHIFTER LINK Not Available Price: |
| 3 |
98-9613 |
GASKET-HEAD, CYLINDER Price: $177.34 |
| 4 |
703-3360A |
POSITION LINK CONTROL Not Available This part replaces 703-3360. Price: |
| 4 |
98-7509 |
O-RING Price: $4.31 |
| 5 |
703-3610 |
LIFT HANDLE BRACKET Not Available Price: |
| 6 |
603-04084 |
LIFT BRACKET VALVE Not Available Price: |
| 7 |
703-3698B-0637 |
CONTROL HANDLE Not Available This part replaces 703-3698B. Price: |
| 8 |
703-3762 |
CONTROL HANDLE SUPPORT BRACKET Not Available Price: |
| 9 |
703-3763A |
LIFT HANDLE CONTROL Not Available Price: |
| 10 |
710-0564 |
Screw, Hex Cap, 1/4-20 x 2.75 GR5 Price: $6.07 |
| 11 |
710-0607 |
Screw, Hex Wash Hd. Tapp 5/16-18 x .5 Price: $6.06 |
| 12 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 13 |
711-1316 |
FERRULE .265X.31 Not Available Price: |
| 14 |
711-04214 |
Pin, Clevis, .25 x .937 Price: $5.44 |
| 15 |
711-1614 |
VALVE CONNECT LINK Not Available Price: |
| 16 |
712-0324 |
Nut, Hex Nylon Insert Lock 14-20 GR8 Price: $3.38 |
| 17 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 18 |
712-3029 |
Nut, Hex Jam, 1/2-20 GR5 Price: $6.01 |
| 19 |
715-0120 |
Pin, Spirol, 3/16 x 1.0 Price: $9.14 |
| 20 |
718-3130 |
HYDRAULIC LIFT VALVE Not Available Price: |
| 21 |
723-3013 |
FRICTION DISC Not Available Price: |
| 22 |
731-3321 |
Grip, Handle Price: $18.83 |
| 23 |
932-0330 |
COMPRESSION SPRING Not Available This part replaces 732-0330. Price: |
| 24 |
732-0499 |
Spring, Compression Price: $8.24 |
| 25 |
736-3019 |
Washer, Flat, .531 x 1.062 x .134 Price: $5.45 |
| 26 |
936-3022 |
BELL WASHER Not Available This part replaces 736-3022. Price: |
| 27 |
719-3013 |
Clevis, Adjustment Price: $24.95 |
| 28 |
741-3084 |
Bearing, Nylon Flange .75 ID Price: $4.55 |
| 29 |
747-3394 |
POSITION CONTROL ROD Not Available Price: |
| 30 |
747-04131 |
HI/LO CONTROL ROD Not Available Price: |
| 31 |
603-04086 |
HIO SHIFTER SHAFT Not Available Price: |
| 32 |
912-3058 |
Hex Lock Nut, 1/2-20 This part replaces 712-3058. Price: $4.92 |
| 33 |
714-0104 |
Pin, Internal Cotter Price: $3.90 |
| 501466901 |
501466901 |
SCREW Price: $7.99 |
| 501468401 |
501468401 |
SPRING Price: $6.99 |
| 501468501 |
501468501 |
BALL Price: $6.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666901 |
501666901 |
GASKET, PUMP SIDE Price: $14.99 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 502254701 |
502254701 |
PUMP DIAPHRAGM Price: $19.99 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503281805 |
536033701 |
CARBRETOR HD-12C H372 This part replaces 503281805. Price: $99.99 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503574201 |
503574201 |
WELCH PLUG Price: $6.99 |
| 503647801 |
503647801 |
GASKET SET Price: $14.99 |
| 503799601 |
503799601 |
LEVER Price: $3.99 |
| 503799801 |
503799801 |
COVER Price: $5.99 |
| 503799901 |
503799901 |
SHAFT Price: $11.99 |
| 503800001 |
503800001 |
THROTTLE FLAP Price: $4.99 |
| 503800701 |
503800701 |
GASKET Price: $64.99 |
| 503800801 |
503800801 |
SCREW Price: $19.99 |
| 503800901 |
503800901 |
SPRING Price: $8.99 |
| 503801401 |
503801401 |
TUBE Price: $3.99 |
| 503801501 |
503801501 |
BUSHING Price: $11.99 |
| 503855801 |
503855801 |
CHOKE FLAP Price: $3.99 |
| 503855901 |
503855901 |
RP NIPPLE Price: $17.99 |
| 503913901 |
503913901 |
LIMITER CAP Price: $2.99 |
| 503914001 |
503914001 |
LIMITER CAP Price: $4.99 |
| 503915401 |
503915401 |
CAP Price: $7.99 |
| 503943601 |
503943601 |
JET Price: $4.99 |
| 503943701 |
503943701 |
SPRING Price: $0.56 |
| 503943801 |
503943801 |
ADJUSTING SCREW Price: $5.99 |
| 503943901 |
503943901 |
IDLE SCREW Price: $7.99 |
| 504130905 |
504130905 |
GASKET Price: $2.99 |
| 505316717 |
505316717 |
SCREW Price: $6.99 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 530035015 |
530035015 |
SCREW SHUTTERS Price: $2.99 |
| 537003301 |
537003301 |
JET Price: $5.99 |
| 537018901 |
537018901 |
LEVER Price: $3.99 |
| 537019001 |
537019001 |
SPRING Price: $8.99 |
| 537019101 |
537019101 |
CHOKE SHAFT Price: $14.99 |
