| Ref | Part Number | Description |
|---|
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED Price: $1,130.23 |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 92-1774. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 4 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 5 |
43-6810 |
SPIDER-TORQUE Price: $138.50 |
| 6 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 7 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 8 |
100-6570-01 |
AXLE SUPPORT ASM Price: $671.00 |
| 9 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 10 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 11 |
99-8434-03 |
REAR AXLE PIN ASM Price: $204.62 |
| 12 |
94-6935 |
LOCKNUT Price: $1.09 |
| 13 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 15 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 16 |
84-8600 |
SET-SHOES, LINED Price: $131.50 |
| 17 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 18 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 19 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 21 |
94-6934 |
SCREW-HH Price: $6.99 |
| 22 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 23 |
94-6936 |
WASHER-HARDENED Price: $0.58 |
| 503216620 |
503216618 |
SCREW This part replaces 503216620. Price: $3.99 |
| 503216820 |
503216220 |
SCREW W/ LOCKING FLUID This part replaces 503216820. Price: $3.99 |
| 503217716 |
503217716 |
SCREW Price: $2.99 |

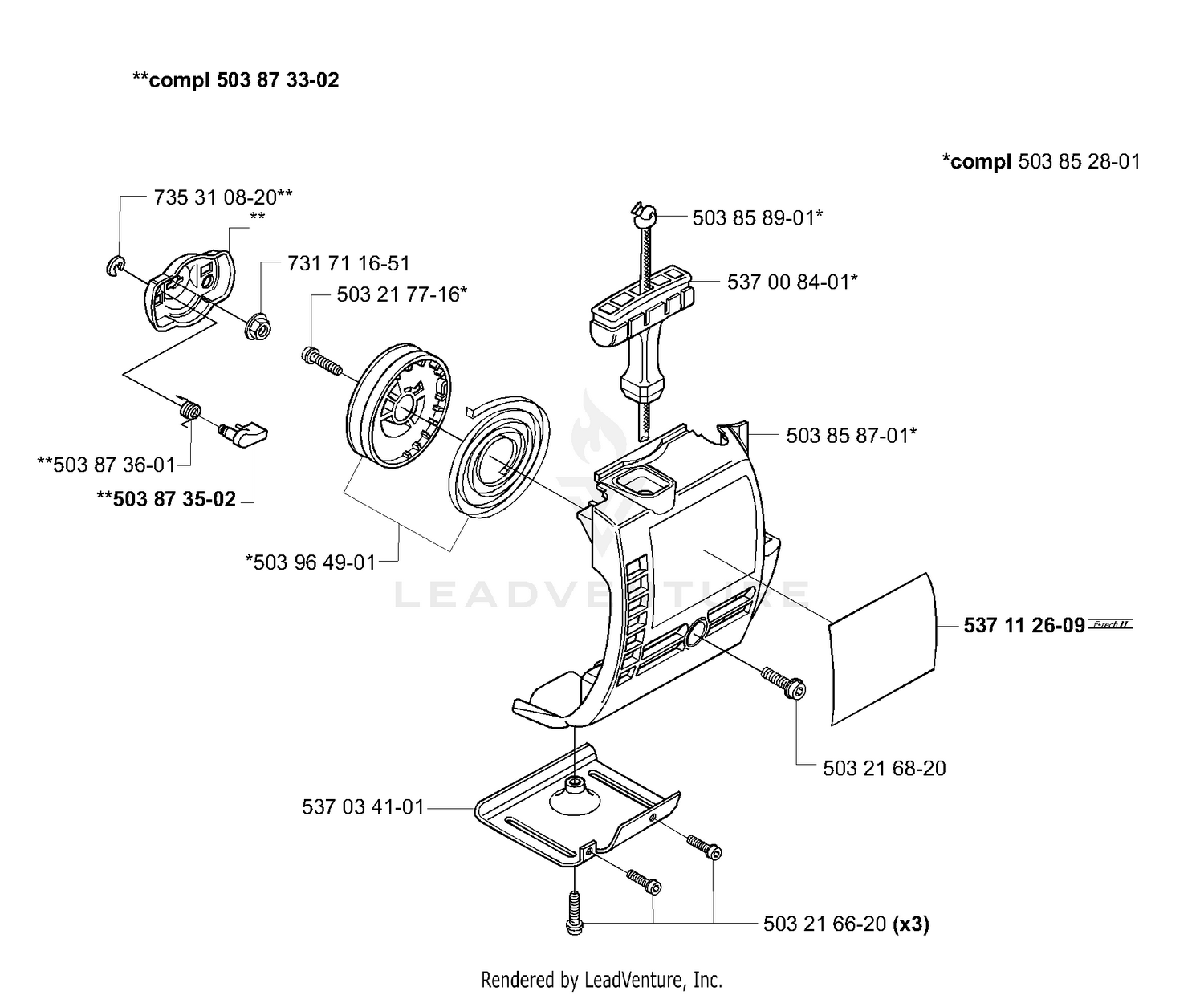

| 503858701 |
503852807 |
STARTER ASSY This part replaces 503858701. Price: $64.99 |
| 503858901 |
503858901 |
STARTER ROPE Price: $8.99 |
| 503873302 |
503873305 |
STARTER PAWL BRIDGE This part replaces 503873302. Price: $22.99 |
| 503873502 |
544011401 |
STARTER PAWL This part replaces 503873502. Price: $9.99 |
| 503873601 |
503873601 |
SPRING Price: $3.99 |
| 503964901 |
503964901 |
STARTER PULLEY ASSY. Price: $14.99 |
| 537008401 |
537008401 |
STARTER HANDLE Price: $9.99 |
| 537034101 |
537034101 |
PLATE Price: $17.99 |
| 537112609 |
537353430 |
DECAL This part replaces 537112609. Price: $3.99 |
| 731711651 |
731711651 |
FLANGE NUT Price: $3.99 |
| 735310820 |
735310820 |
E-RING 4 Price: $2.99 |
