Home / OPE / BT15068GNSN / 01011, Reelmaster 11-Blade Reel Mower, 1989 (SN 90001-99999) / Grass Dispersion Shield Kit No. 51-0800 (optional) (5 7 Blade Reelmaster Model 01005 01007 Only)

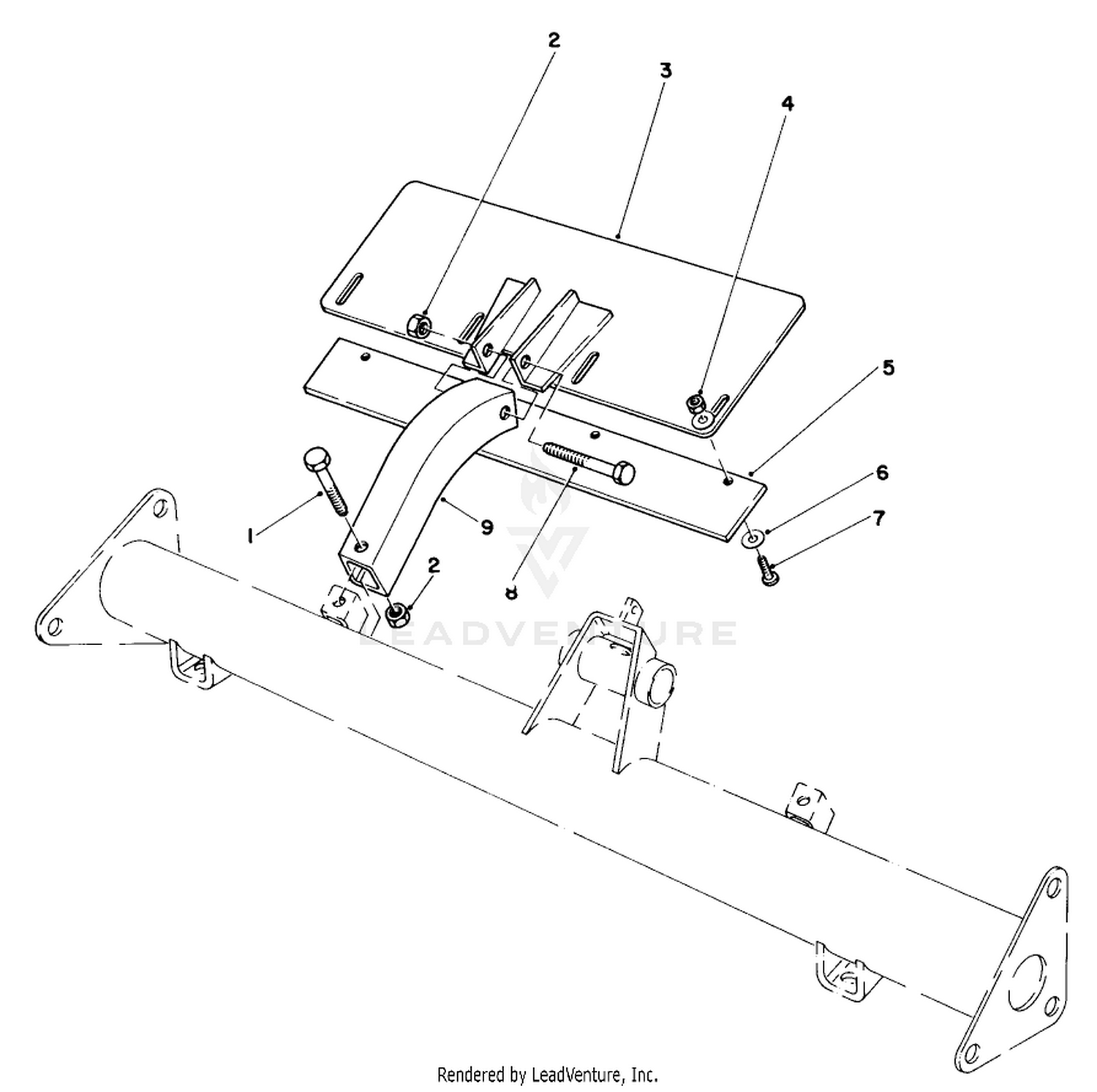

Grass Dispersion Shield Kit No. 51-0800 (optional) (5 7 Blade Reelmaster Model 01005 01007 Only)

Grass Dispersion Shield Kit No. 51-0800 (optional) (5 7 Blade Reelmaster Model 01005 01007 Only)

Parts (8)

RefPart NumberDescription
1 323-9 SCREW-HH Price: $1.29
2 3296-39 NUT-LOCK, NI Price: $2.29
3 51-0810 GRASS SHIELD Price: $42.83
4 3296-8 NUT-HEX Price: $1.29
5 51-0830 ADJ SHIELD Price: $9.15
6 3256-22 WASHER-FLAT Price: $0.39
7 3290-133 SCREW Price: $1.19
8 323-10 SCREW-HH Price: $0.89
