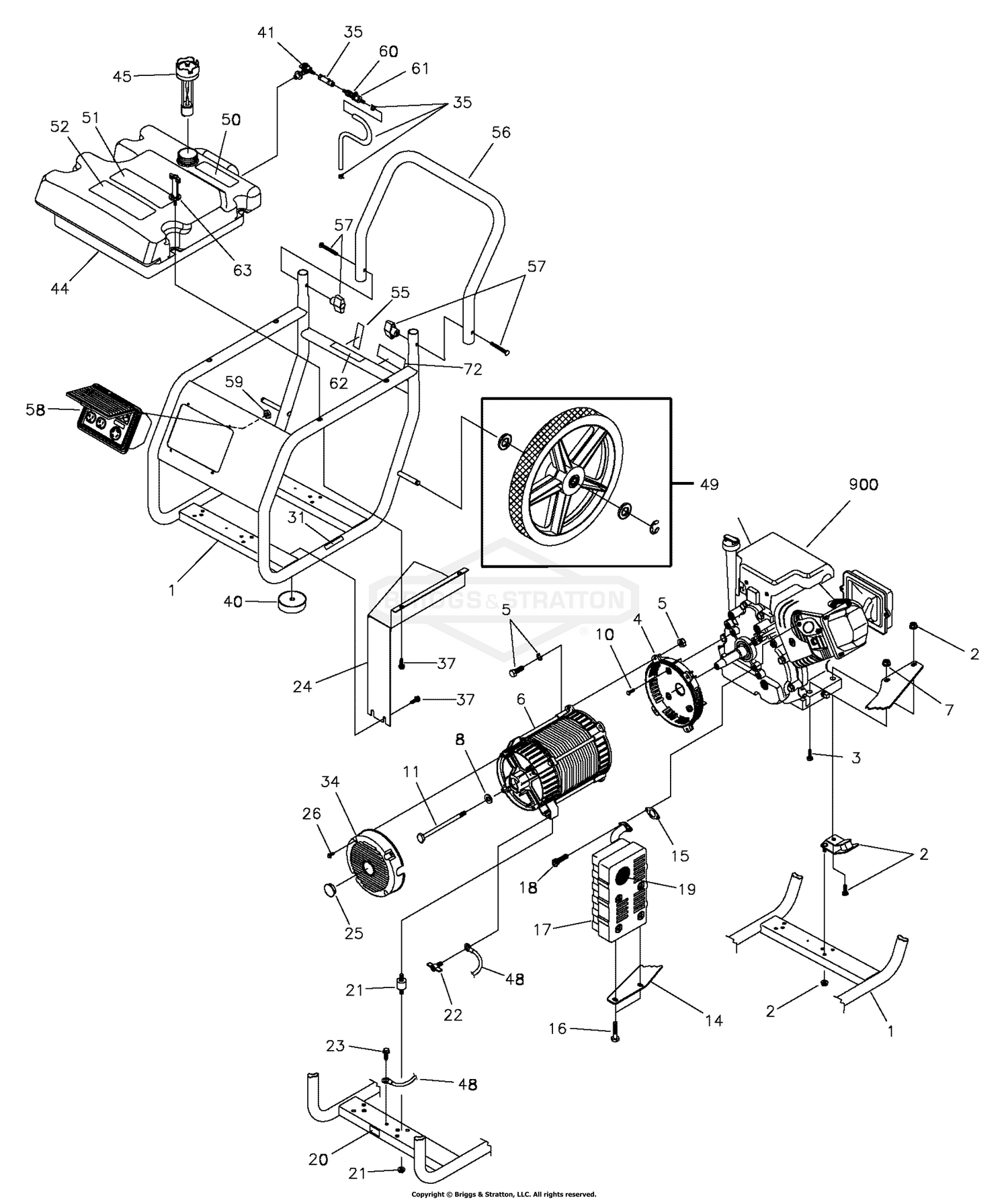

| Ref | Part Number | Description |
|---|
| 1 |
M197129GS |
FRAME, (Includes #20, 31, 40, 55, 62 & 72) Price: $209.45 |
| 2 |
197564GS |
KIT, Vibration Mount 45° Price: $11.39 |
| 4 |
190220GS |
HOUSING, Engine Adapter Price: $40.82 |
| 5 |
194151GS |
KIT, Hrdwr Mounting Adptr Price: $20.98 |
| 7 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 8 |
96796GS |
WASHER, 8.4 x 22.2 x 3 Price: $2.79 |
| 10 |
190274BGS |
SBHCS, 3/8-16 x 1.0 Price: $3.41 |
| 11 |
47480GS |
HHCS, 5/16-24 x 7 Price: $9.51 |
| 14 |
189009GS |
BRACKET, Muffler Price: $20.75 |
| 15 |
695398 |
GASKET, Exhaust Price: $6.62 |
| 17 |
189008GS |
MUFFLER Price: $60.60 |
| 19 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 20 |
B4986GS |
DECAL, Ground, Green Price: $2.75 |
| 21 |
194153GS |
MOUNT-VIBRATION Price: $10.54 |
| 22 |
86494GS |
SCREW, Wing, M6 1 x 16 Price: $2.51 |
| 23 |
B2153GS |
SCREW, 12-14 x 7/8, Self-Drill Price: $3.95 |
| 24 |
192793GS |
SHIELD, Heat Price: $75.99 |
| 25 |
191190GS |
CAP Price: $3.09 |
| 26 |
74908GS |
SCREW, M5-0.8 x 10 Taptite Price: $2.69 |
| 31 |
196830GS |
DECAL, Warning Exhaust Price: $13.89 |
| 34 |
195422GS |
COVER, RBC, Plastic w/ Cap Price: $12.35 |
| 35 |
194432GS |
KIT, Hose Fuel w/ Clamps Price: $3.95 |
| 37 |
192376GS |
SCREW, 12 - 24 x 1/2 THD Forming Price: $2.89 |
| 40 |
192553GS |
KIT,Vibe Mount Price: $14.65 |
| 41 |
192980GS |
KIT,Valve Tank Price: $16.43 |
| 45 |
189420GS |
CAP, Fuel Gauge Price: $38.51 |
| 48 |
195373GS |
WIRE, Ground Price: $1.85 |
| 49 |
203650GS |
KIT, Wheel Price: $43.86 |
| 50 |
188333GS |
DECAL, Fuel Tank Price: $20.85 |
| 51 |
194799GS |
DECAL, Danger Price: $10.48 |
| 52 |
189235GS |
DECAL, Start Instructions Price: $17.22 |
| 55 |
73054GS |
DECAL, Shut-Off, Fuel Price: $7.49 |
| 56 |
M194907GS |
HANDLE Price: $102.49 |
| 57 |
189456GS |
KIT, Handle Fastening Price: $20.00 |
| 60 |
189117GS |
QUICK CONNECT, Fuel, 1/4 Barb Price: $35.15 |
| 61 |
192695GS |
QUICK CONNECT, Fuel, 1/4 Barb Price: $32.88 |
| 62 |
202997GS |
DECAL, Warning, CO This part replaces 203579GS. Price: $12.80 |
| 63 |
189114GS |
KNOB, Fuel Tank Hold Down Price: $5.70 |
| 72 |
192480GS |
DECAL,Warning, Fuel Line Disconnect Price: $1.60 |
