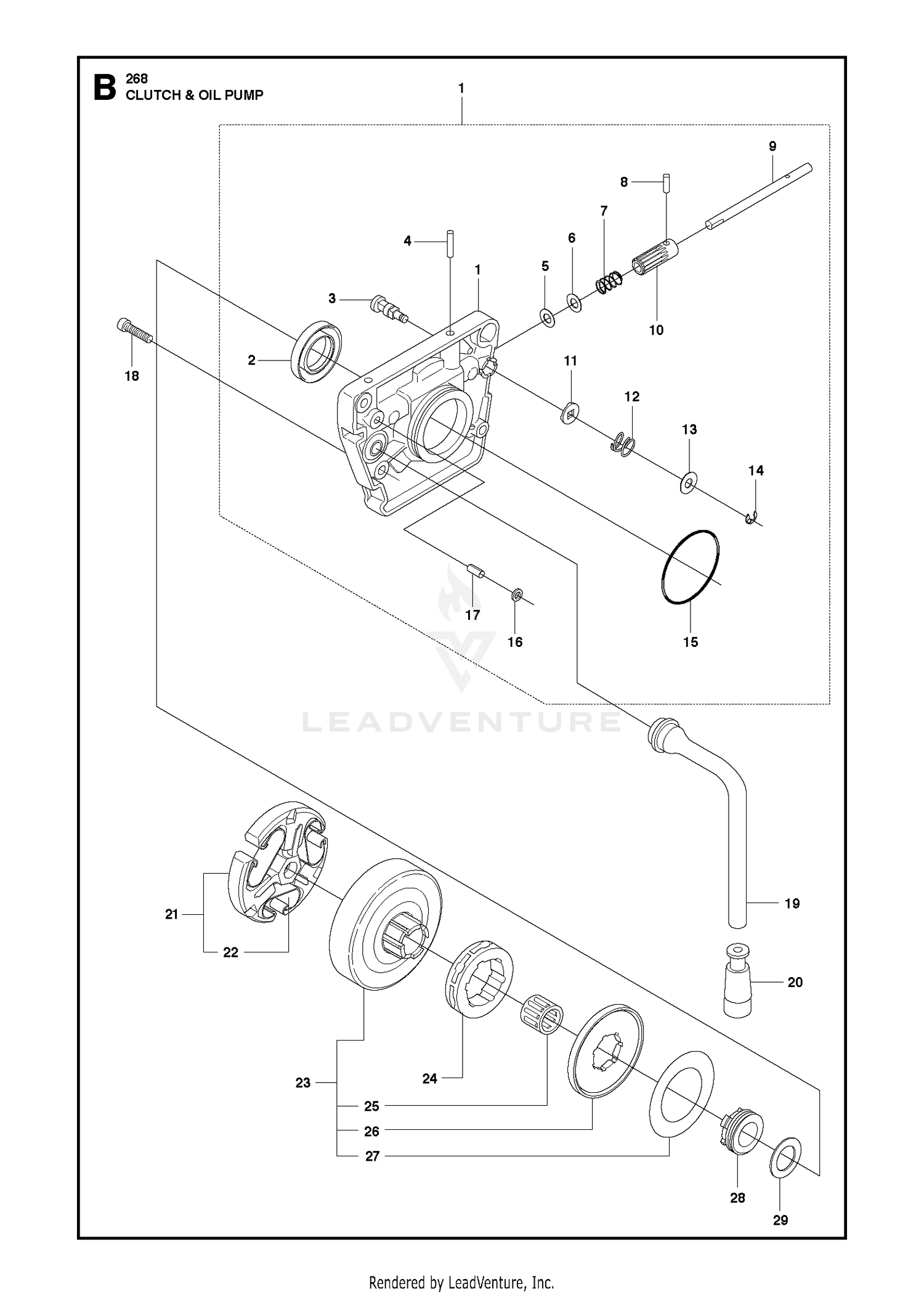

CLUTCH & OIL PUMP
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501512501 | OIL PUMP Price: $99.99 |
| 3 | 501513601 | CONTROL SCREW Price: $2.99 |
| 4 | 720123750 | PARALLEL PIN 3X18 Price: $3.99 |
| 5 | 503231001 | Price: $1.40 |
| 6 | 503230016 | WASHER 5.1X8.5 Price: $3.99 |
| 7 | 501513401 | SPRING Price: $4.99 |
| 8 | 501513301 | SCREW Price: $2.99 |
| 9 | 501513201 | SHAFT Price: $6.99 |
| 10 | 501513101 | GEAR WHEEL Price: $22.99 |
| 11 | 501513701 | WASHER Price: $3.99 |
| 12 | 501513901 | SPRING Price: $4.99 |
| 13 | 734484801 | WASHER Price: $3.99 |
| 14 | 735310720 | E-RING 3.2 Price: $2.99 |
| 15 | 740422100 | O-RING Price: $3.99 |
| 16 | 501288501 | X-RING Price: $4.99 |
| 17 | 721420325 | SPRING PIN 3X6 Price: $2.99 |
| 18 | 725529356 | SCREW MC6S 4X16 Price: $4.99 |
| 19 | 501519901 | OIL HOSE Price: $8.99 |
| 20 | 501544102 | OIL SCREEN Price: $14.99 |
| 21 | 503744402 | CLUTCH Price: $29.99 |
| 22 | 537360601 | SPRING Price: $4.99 |
| 23 | 501831503 | CLUTCH DRUM Price: $54.99 |
| 25 | 503253401 | SUPPORT BUSHING Price: $17.99 |
| 26 | 501831701 | DUST PROTECTION Price: $6.99 |
| 27 | 501535901 | WASHER Price: $4.99 |
| 28 | 501513801 | WORM WHEEL Price: $6.99 |
| 29 | 503230013 | WASHER 13.1X20 Price: $3.99 |
