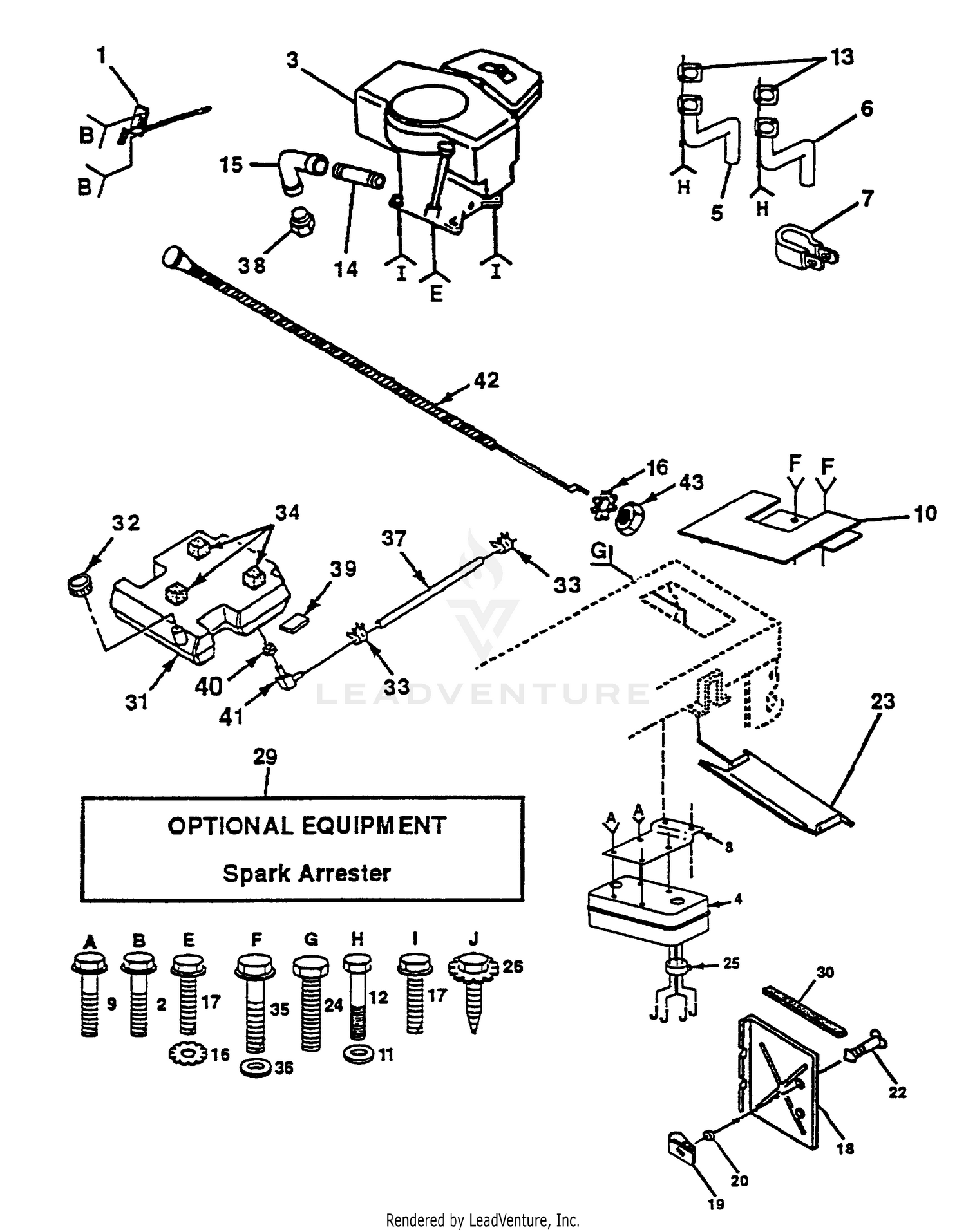

| Ref | Part Number | Description |
|---|
| 1 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 Price: $20.99 |
| 1 |
80-2120 |
DISCONTINUED Price: Call Us |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 2 |
80-2110 |
WIRE ASM Price: $21.53 |
| 3 |
83-2420 |
POSITIVE CABLE ASM Price: $18.41 |
| 4 |
532122440 |
MUFFLER Price: $86.29 |
| 5 |
532122434 |
TUBE ASSY EXH LH Price: $59.99 |
| 6 |
532122435 |
TUBE ASSY EXH RH Price: $79.99 |
| 7 |
532138129 |
CLAMP Price: $3.99 |
| 8 |
532122439 |
BRACKET MUFFLER Price: $6.27 |
| 9 |
596437001 |
Screws This part replaces 817190408. Price: $2.99 |
| 10 |
532145552 |
SHIELD HEAT LT This part replaces 532128199. Price: $5.99 |
| 14 |
813280336 |
Nipple Pipe 3/8 Npt X 4-1/2" Price: $2.42 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 18 |
532133747 |
HEAT SHIELD This part replaces 532133746. Price: $3.99 |
| 19 |
532105839 |
RECEPTACLE LT Price: $3.99 |
| 20 |
532105838 |
RETAINER LT Price: $4.99 |
| 22 |
532123650 |
STUD 1/4 TURN Price: $4.99 |
| 23 |
532128953 |
HEAT SHIELD Price: $3.08 |
| 24 |
817021008 |
SCREW Price: $3.99 |
| 25 |
532101326 |
DEFL MUFFLER LTV Price: $4.01 |
| 26 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
532105037 |
FOAM-STRIP LT Price: $2.38 |
| 31 |
532127383 |
TANK, FUEL/SENSOR Price: $140.24 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532123549. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 36 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532008543. Price: $14.99 |
| 39 |
532109227 |
PAD IDLER TI This part replaces 532109277. Price: $3.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 42 |
532132781 |
CHOKE CONTROL Price: $22.99 |
