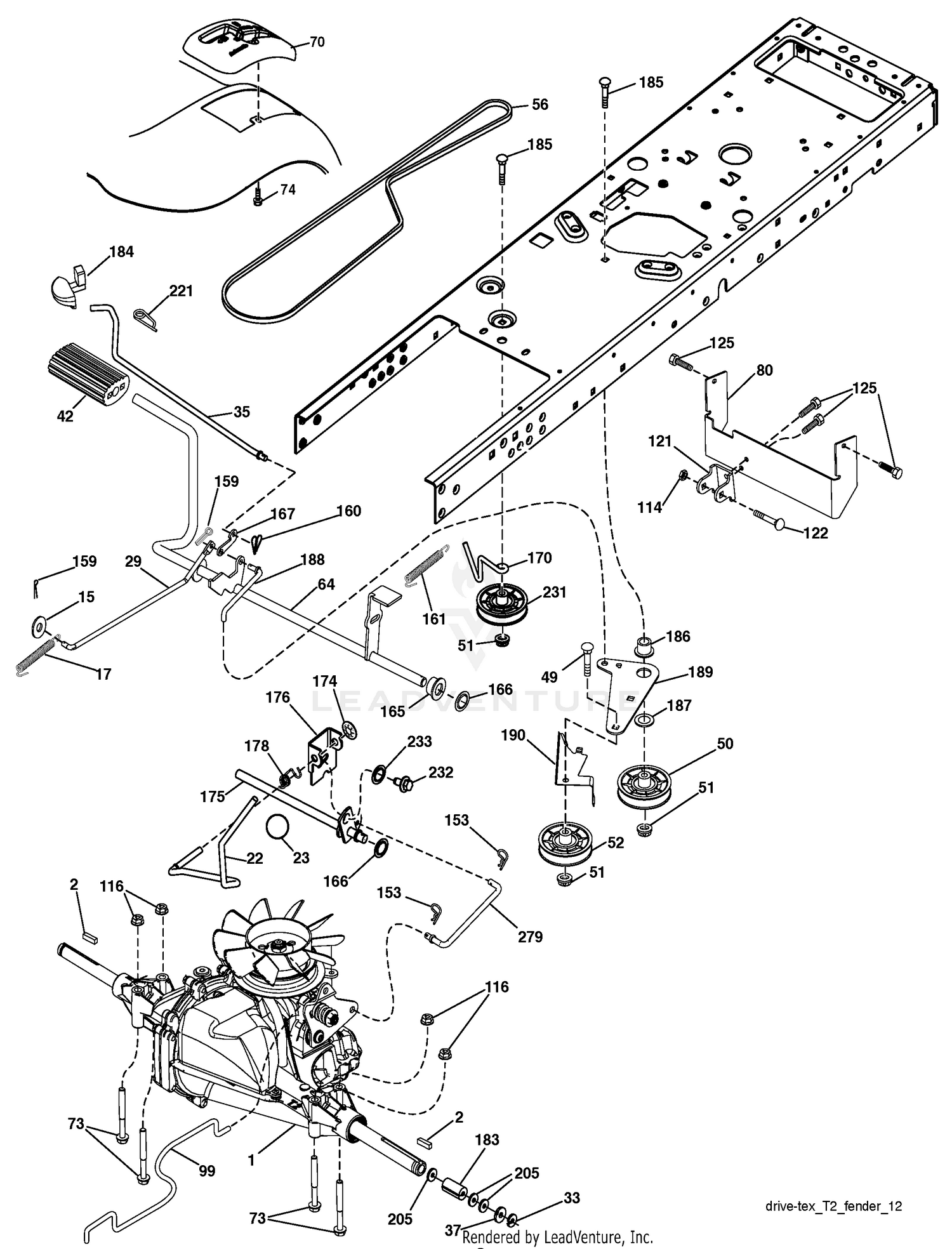

| Ref | Part Number | Description |
|---|
| 1 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 2 |
123583X |
Key Square Price: Call Us |
| 2 |
2412-133 |
CLAMP-R Price: $3.19 |
| 3 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 4 |
76-9460-03 |
DISCONTINUED Price: Call Us |
| 5 |
77-3780 |
PIN ASM-LYNCH Price: $15.06 |
| 6 |
3290-282 |
RIVET-BLIND Price: $0.28 |
| 7 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 8 |
76-9930 |
FOAM-CENTER Price: $7.40 |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
86-2860-03 |
COVER-BELT, UPPER Price: $16.75 |
| 11 |
82-4900 |
FOAM-SEAT, REAR Price: $71.75 |
| 12 |
76-9440 |
ROD-PROP, SEAT Price: $65.18 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 16 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 17 |
240-5 |
GROMMET Price: $13.66 |
| 18 |
321-5 |
SCREW-HH Price: $0.22 |
| 19 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 20 |
32128-33 |
NUT-HF Price: $0.25 |
| 21 |
70-1480 |
RELAY Price: $105.19 |
| 22 |
197660 |
Rod Shift Price: Call Us |
| 22 |
2412-74 |
R-CLAMP Price: $2.37 |
| 23 |
37-2690 |
CAPACITOR Price: $155.98 |
| 23 |
409154X421 |
Knob Price: Call Us |
| 25 |
237-136 |
GROMMET Price: $3.52 |
| 26 |
76-9480 |
SLEEVE-PIVOT, SEAT Price: $4.64 |
| 28 |
325-9 |
SCREW-HH Price: $1.87 |
| 29 |
116749 |
HORN This part replaces 48-4590. Price: $130.99 |
| 29 |
408391 |
Rod, Brake Price: Call Us |
| 30 |
74-8910 |
DISCONTINUED Price: Call Us |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
322-2 |
SCREW-HH Price: $0.69 |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 42 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
125907X |
V-Belt, Drive Price: Call Us |
| 64 |
196200 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 70 |
193220X428 |
Console Price: Call Us |
| 73 |
74490544 |
Bolt Hex 5/16-18 Gr. 5 Price: Call Us |
| 74 |
142432 |
Screw 1/4 x 1/2 Price: Call Us |
| 80 |
408393 |
Strap Torque Price: Call Us |
| 99 |
408418 |
Rod Spring Bypass Price: Call Us |
| 114 |
73800500 |
Nut Lock 5/16-18 unc Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 121 |
175611 |
Bracket Strap Torque Price: Call Us |
| 122 |
72010520 |
Bolt 5/16-18 x 2.50 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 153 |
4497H |
Retainer Spring 1" Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 165 |
196212 |
Bushing Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
405257 |
Latch Brake Parking Price: Call Us |
| 170 |
413430 |
Keeper Belt Centerspan Price: Call Us |
| 174 |
197289 |
Nut Push Price: Call Us |
| 175 |
408539 |
Shaft Asm Shift Price: Call Us |
| 176 |
196214 |
Arm Clevis Rod Shift Price: Call Us |
| 178 |
197456 |
Spring Shift Price: Call Us |
| 183 |
156972 |
Spacer Axle Price: Call Us |
| 184 |
198403X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110622 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 221 |
403187 |
Retainer Spring Clip Handle Price: Call Us |
| 231 |
407287 |
Idler V-Groove 1.688" Offset Price: Call Us |
| 232 |
74780716 |
Bolt 7/16-14 x 1 Gr 5 Price: Call Us |
| 233 |
405296 |
Washer Serrated Price: Call Us |
